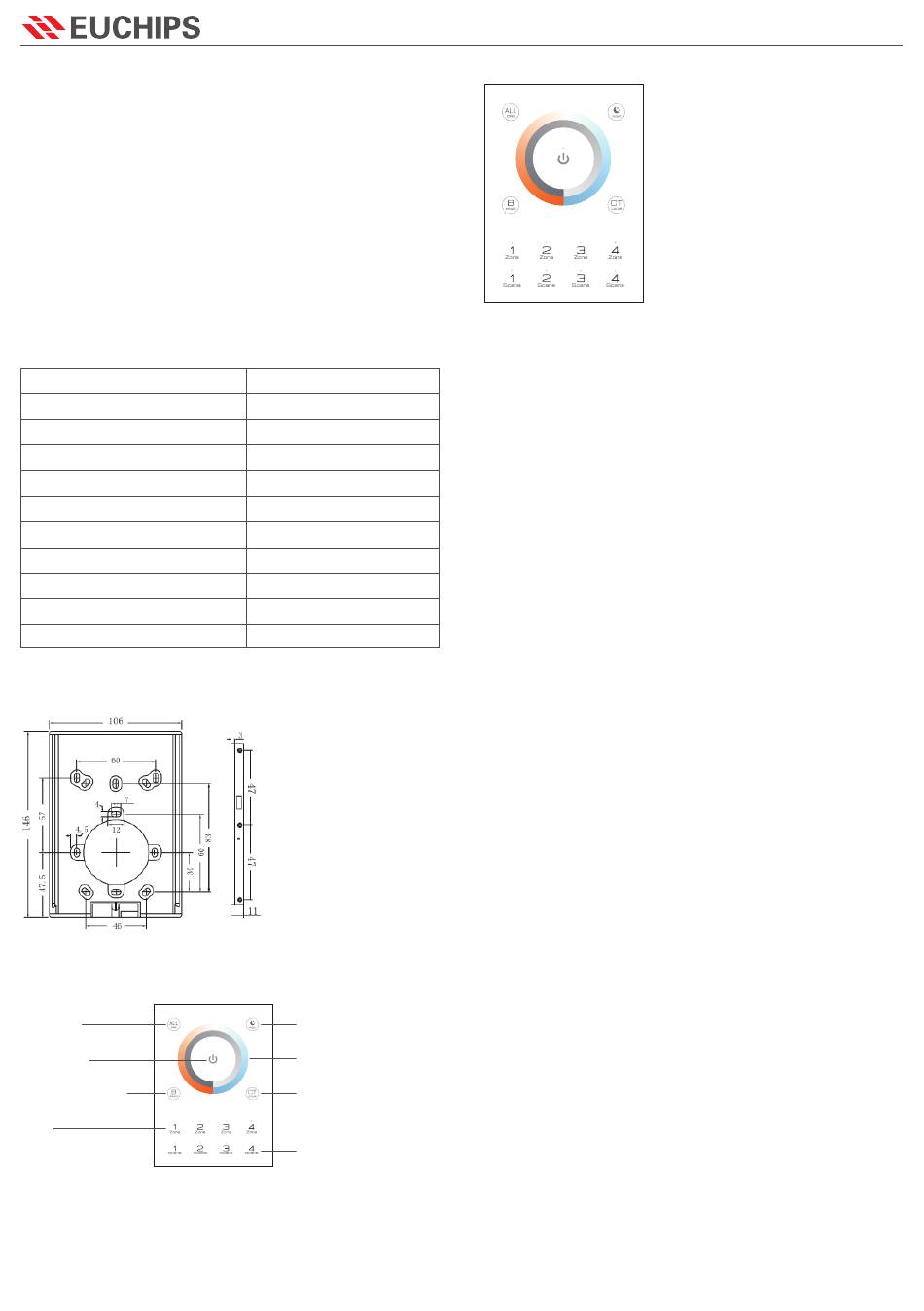

EUCHIPS DMX-E02L Manual

DMX-E02L
Product Feature
·Compliance with DMX512 (1990) International Standard Agreement
·Supporting independent or synchronous color temperature control for four regions
·Support real-time adjustment of brightness and color temperature
·High sensitivity glass touch button and adjusting ring, more fine control
·Using glass material, fashionable and beautiful appearance
·Compatible with any DMX lamp or DMX driver
·It can be installed in the wall body, suitable for all kinds of wall boxes.
·The saved scene saves the new scene again, and the original saved scene will be overwritten.
·Support RF function, dimming, color temperature, calling scene, etc.
Technical Parameters
Model
Input Voltage
Dimming Type
Input Power
Area number
Working Temperature
Channels
Packing Size
N.W
Transmission Distance
RF Function
Dimension(mm)
Panel Description
All Selection
On-Off Switch
Brightness Regulation
Group
User's manual: 2019-9
DMX-E02L
5VDC
DMX512
3-3.5W
4
0℃~+50℃
8
140x106x11(mm)
200g
300m
Support
Night light mode
Touch Ring
Color Temperature Regulation
Scene
Function Description
ON/OFF
In the closed state, click on the "switch button" to open the DMX panel. The lamp
controlled by the panel lights up according to the last closed state. When you click on the
"switch button" in the open state, you can close the panel. All the lights under control are
turned off. The switch indicator light is slightly lit. It can be used to indicate the switch
position in darkness.
Area Dimming
This panel supports 4 DMX zones, 2 channels for each zone, namely zone 1 is channel 1~2,
zone 2 is channel 2~4, zone 3 is channel 5~6, zone 4 is channel 7~8. Each area has a
corresponding indicator light.
Click the zone1/2/3/4 area button to select the corresponding area respectively. The
luminaire in the area will be lit according to the last turn off color/brightness, and the
corresponding area selection indicator will be lit at the same time, indicating that the
luminaire in the area can be adjusted color temperature/brightness. By selecting "color
ring" or "color temperature mode" corresponding lamp effect editing. The lighting effect in
other areas remains unchanged.
Click to select another area button to switch areas. At this time the effect of lamps and
lanterns of other area does not change. Only the selected area has a light indicating that
the area can be edited.
When a certain area is selected, click the area icon again to turn off the light in the area
and turn off the area light.
Long press the button of a certain area for 2 seconds, then 4 areas are selected at the
same time, 4 areas indicator lights are on at the same time, and 4 areas can be operated
synchronously at the same time.
Click "ALL" button to select 4 areas at the same time, but 4 areas indicator lights go out at
the same time, at this time, 4 areas can be synchronized operation.
Scene Setting
After a region or all regions are selected.
Click the Scene1/2/3/4 button to invoke each of the four scenarios saved by the user. Only
one scenario can be invoked at a time. Brightness/color temperature cannot be adjusted
in scene call mode.
After adjusting the light and color of lamps in one or more areas, press the scene button
for a long time for 3 seconds and hear the "di-di-di" sound, indicating that the lighting
effect in the current area has been successfully saved into the scene.
Each area can hold 4 user-defined scenarios. The new scene effect can be saved again on
the scene button of a scene that has been saved (note: the previously saved scene will be
overwritten).
1/3
Touch Panel
www.euchips.com
