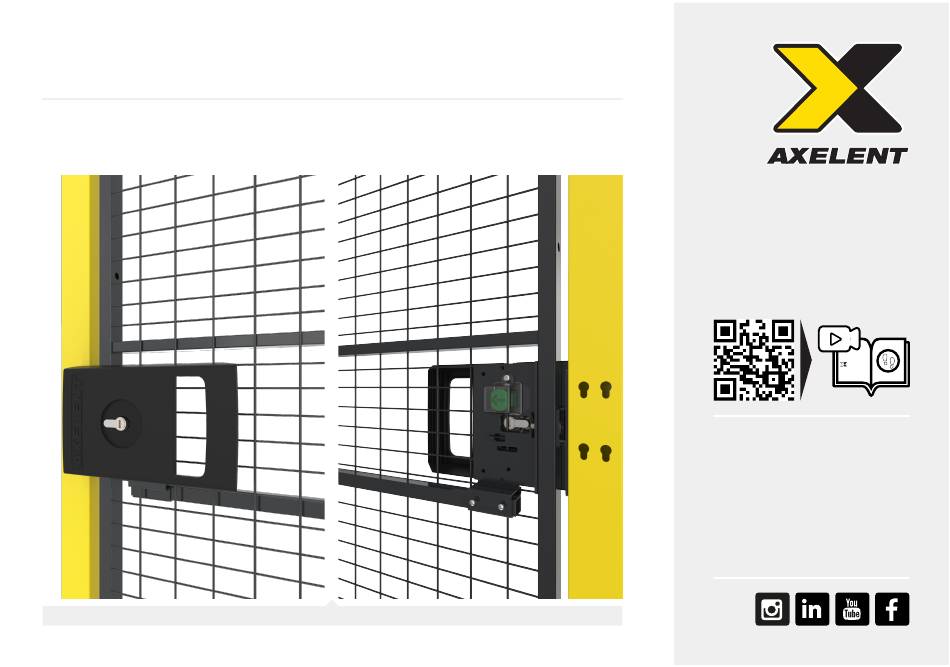

- Page 1 X-Guard X-It Electric ASSEMBLY AXELENT AB • BOX 1 KÄVSJÖVÄGEN 17 • SE-335 73 HILLERSTORP • SWEDEN TEL +46 (0)370-37 37 30 INFO@AXELENT.SE WWW.AXELENT.COM XIT-L/R09-101, XIT-L/R09-301, XIT-L/R09-401 C-0010840-0, C-0015385-01, C-00409573-0 | 2210 X-It Electric X-Guard Assembly Guide...
- Page 2 XIT-000-101 XIT-000-301 XIT-000-401 10-9906 CL0042 MK6S-M8.65FZB 10-9906 CL0041 MF6S-M8.35 10-9906 MK6S-M8.65FZB CL0068 MK6S-M8.90FZB MK6S-M8.90FZB 10-9906 10-9906 MK6S-M8.65FZB MK6S-M8.90FZB 90 º www.axelent.com Axelent X-Guard | 2/11...
- Page 3 CL0019 MF6S-M8.35 XIT-009-001 CL0093 CL0086 MK6S-M3.14 LM6M-M3 B-504 MRTGF-M5.8 OPTIONAL 2.5 /5 mm B00-064 XIT-009-101 B00-065 MRTGF-M5.8 MK6S-M3.14 CL0082 CL0081 CL0034 CL0035-EL G2276-3 T01-31P 10-9745 G2270 G2271 G2272 G2273 G2274 G2275 G3047 10-9750 G2276-3 RTS-B10.13ZNB Axelent X-Guard | 3/11 www.axelent.com...
- Page 4 XIT-L/R09-000 CL0016 CL0019 5 mm MF6S-M8.35 optional T01-31 www.axelent.com Axelent X-Guard | 4/11...
- Page 5 2.5 mm MK6S-M3.14 CL0082 MRTGF-M5.8 CL0086 CL0093 LM6M-M3 CL0081 Cable: MF6S-M8.35 5 mm X-100 mm G2276-3 10-9745 Cable: www.axelent.com Axelent X-Guard | 5/11...
- Page 6 2,5 mm MK6S-M3.14 MRTGF-M5.8 CL0086 CL0093 LM6M-M3 www.axelent.com Axelent X-Guard | 6/11...
- Page 7 CL0034 CL0035-EL XIT-L/R09-000 CL0016 CL0019 MF6S-M8.35 XIT-009-001 B00-065 CL0093 CL0086 LM6M-M3 MK6S-M3.14 B-504 MRTGF-M5.8 CL0082 CL0081 2.5 /5 mm G2276-3 T01-45P1 G2270 G2271 G2274 G2275 10-9745 10-9750 G2276-3 T01-45P2 G2276-3 10-9745 G2270 G2271 10-9750 G2276-3 www.axelent.com Axelent X-Guard | 7/11...
- Page 8 Continue X-100 mm Page:4 G2276-3 T01-45P1 5 mm 10-9750 10-9745 10-9745 Cable: Axelent X-Guard | 8/11 www.axelent.com...
- Page 9 Continue Page:4 Y-80 mm Y-80 mm T01-45P2 X-100 mm T01-45P1 G2276-3 T01-45P1 T01-45P2 T01-45P2 For cable CL0081 5 mm 10-9750 10 mm 10-9745 G2270 10-9750 10-9745 Cable: www.axelent.com Axelent X-Guard | 9/11...
- Page 10 Max load per output 250 mA Electric lock failure Flashing Red / steady Red Indicates failure to lock or unlock Min load per output 10 mA (3 sec intervals) electrically. Short circuit proof www.axelent.com Axelent X-Guard | 10/11...
-
Page 11: Warranty And Liability
• Do not disassamble the product Lock controller/ • Lubrication of internal parts must not occur Connected load (Driving a relay or other inductive load requires a protection diode) Visit www.axelent.com for more information 0VDC 0VDC www.axelent.com Axelent X-Guard | 11/11...
