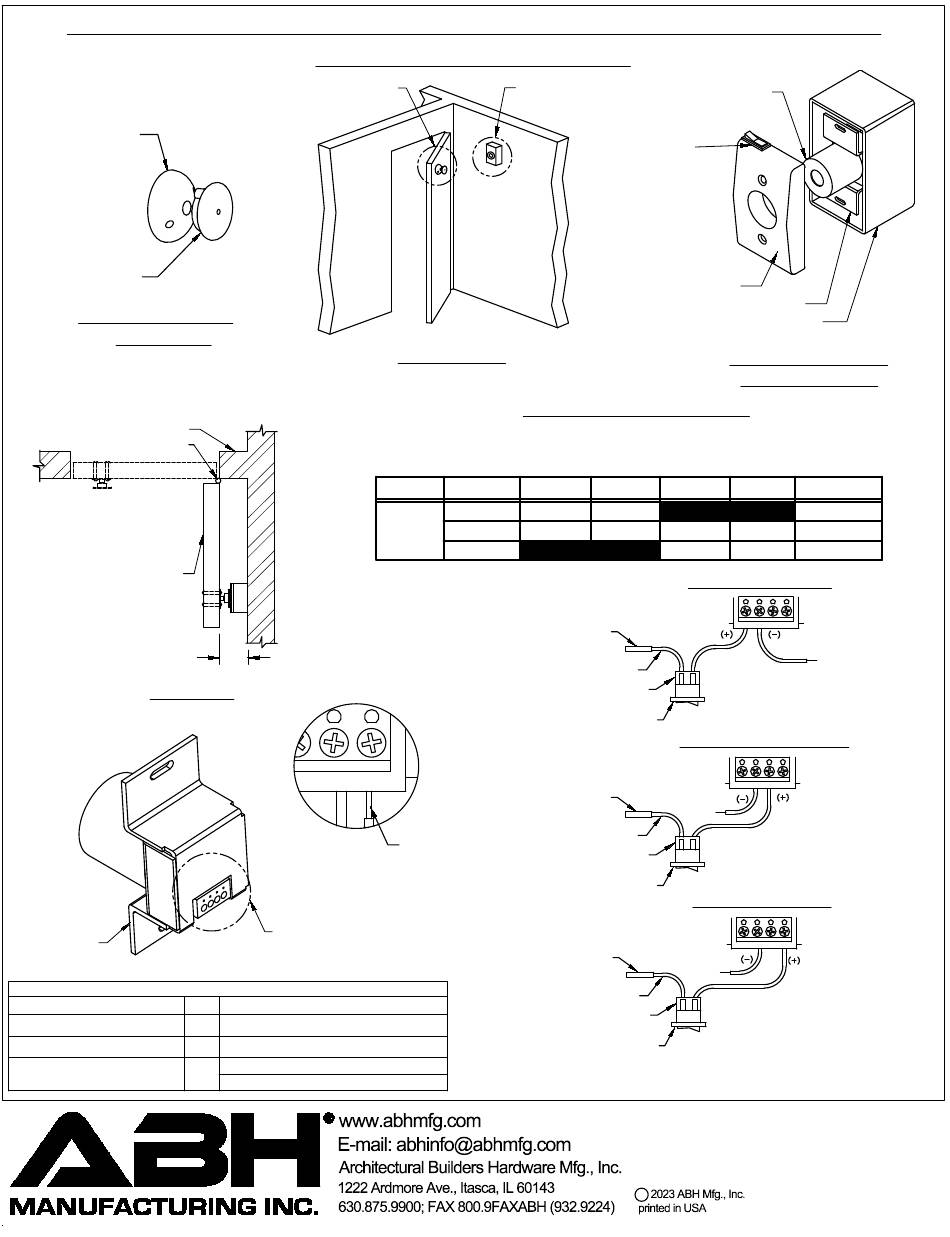

2300RS ELECTROMAGNETIC DOOR HOLDER, ROCKER SWITCH
ARMATURE
BASE
ARMATURE
HEAD
DOOR ARMATURE
ASSEMBLY
WALL
PIVOT
DOOR
4-5/8"-5-5/8" *
(SEE PAGE 2)
TOP VIEW
COIL
BRACKET
SCREW DETAIL
QTY
MAGNETIC WALL PORTION
MAGNETIC COVER
DOOR ARMATURE
SURFACE WALL MOUNT
DOOR ARMATURE
ASSEMBLY
THIS PRODUCT IS AN ELECTROMAGNETIC HOLDING DEVICE, INTENDED
FOR USE IN FIRE DOOR APPLICATIONS, BUT CAN BE USED FOR OTHER
MAGNETIC APPLICATIONS. WIRE INTO PROPER TERMINALS AS NOTED BELOW:
24V 12V
SEE DIAGRAMS
TO THE RIGHT FOR
APPROPRIATE WIRING
SCREW
2
6-32 x 1" OVAL HEAD MACHINE SCREW
2
6-32 x 1" FLAT HEAD MACHINE SCREW
10-32 x 1" PAN HEAD MACHINE SCREW
2
10-32 x 1-1/4" SNB
MAGNETIC WALL
PORTION
FRONT VIEW

ELECTRICAL DATA:

VOLTAGE
SERIES DC/mA
12 DC 60
24 AC/DC 30
2300RS
120 AC
SEE NOTE
QUICK CONNECT
SEE NOTE
CAUTION:
QUICK CONNECT
DO NOT LEAVE
WIRE EXPOSED
SEE NOTE
QUICK CONNECT
ON / OFF ROCKER SWITCH
Note:
INSERT POSITIVE WIRE AND CRIMP TO HOLD WIRE.
MAGNETIC
COIL
ON / OFF
ROCKER
SWITCH
COVER CAN BE
MOUNTED WITH
THE SWITCH ON
TOP OR BOTTOM
COIL BRACKET
ELECTRICAL BOX
2300RS MAGNETIC
WALL PORTION
DC/VA AC/mA AC/VA
.72
.72 30 .72
30 3.60
WIRING FOR 120 VAC
120V
COMMON
ON / OFF
ROCKER
WIRING FOR 24 VAC/VDC
SWITCH
120V
COM
COMMON
ON / OFF
WIRING FOR 12 VDC
ROCKER
SWITCH
120V
COMMON
c 2 0 2 3 A B H M f g . , I n c .
TERMINALS
Com & 12 v
Com & 24 v
Com & 120 v
COM 24V 12V
24V 12V
COM 24V 12V
2300RS-1-00.DWG
2300RS
PAGE 1 OF 2
ISSUED 02-27-23
