Operation
Manual
1. Interchangable rod
2. Base
3. Locking set screw
4. Sleeve
5. Thimble
6. Ratchet stop
7. Spanner wrench
Depth Micrometer
Reading the Tool
Sleeve
11mm
+
Thimble
0.065mm
Reading
11.065mm
Sleeve
0.625"
+
Thimble
0.0067"
Reading
0.6317"
Advertisement
Table of Contents

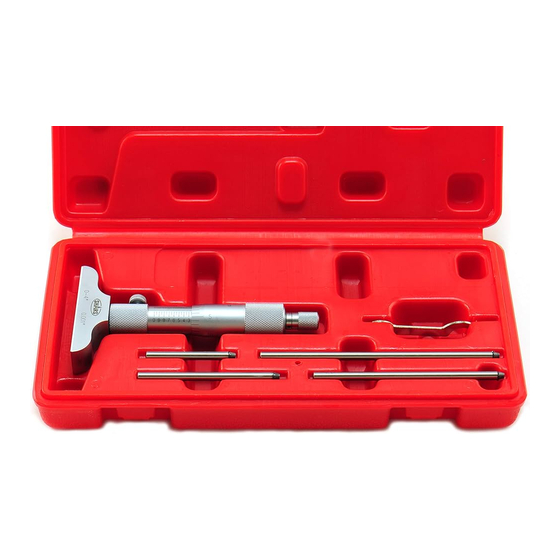

Summary of Contents for shars 303-2503
- Page 1 Depth Micrometer Operation Manual 1. Interchangable rod 2. Base 3. Locking set screw 4. Sleeve 5. Thimble 6. Ratchet stop 7. Spanner wrench Reading the Tool Sleeve 11mm Thimble 0.065mm Reading 11.065mm Sleeve 0.625” Thimble 0.0067” Reading 0.6317”...
- Page 2 Zero Setting Before using, clean measuring face of interchangeable rod and face of base with soft cloth or soft paper. The zero position is set on an accurate flat surface with 25mm/1” interchangeable rod. Insert the interchangeable rod with taper end into the depth base.
