Summary of Contents for seeed studio BitCar

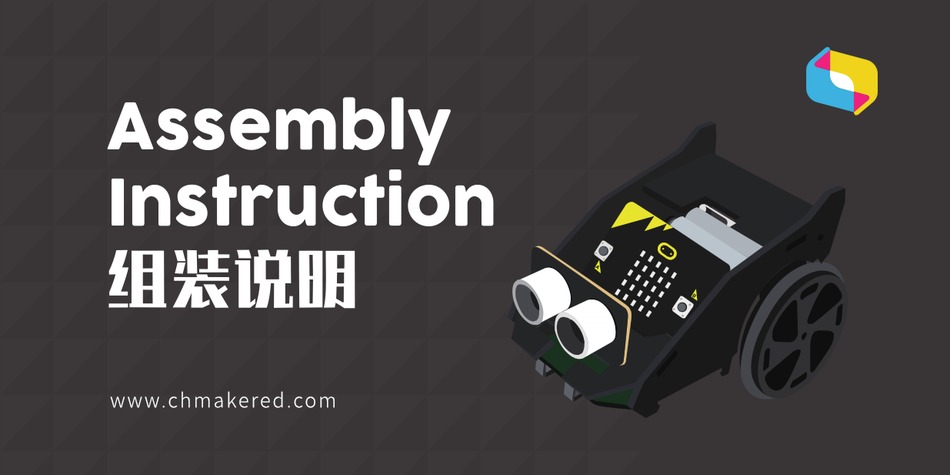

- Page 1 Assembly Instruction 组装说明...
- Page 2 Preparation (准备工作) 1x Chassis 1x Ultrasonic Sensor 1x Battery Holder 2x 3M Sticker (车架) (超声波传感器) (电池盒) (3M胶) 1x Rear Universal Wheel 1x Front Universal Wheel 6x M3x6mm Screws 1x M3*60mm Coupling Nut (后万向轮) (前万向轮) (M3*6mm 螺丝) (M3*60mm铜柱)
- Page 3 2x Side Acrylic Plates 1x Rear Acrylic Plate 1x Front Acrylic Plate 2x Wheels (侧边亚克力板) (尾部亚克力板) （前端亚克力板） (车轮) 1x micro:bit - not included 3x AAA电池 - not included 1x Scew Driver (micro:bit控制板 - 不含在套件内) (7号干电池 - 不含在套件内) (螺丝刀)
- Page 4 Front & Rear Wheel (前&后万向轮) You’ll need (你需要准备) Rear universal wheel (后万向轮) 2x M3x6mm screws (M3*6mm 螺丝) Chassis (车架) Front universal wheel (前万向轮) 2x M3x6mm screws (M3*6mm 螺丝)
- Page 5 3x AAA batteries (7号干电池) *Battery holder (电池盒) 2x 3M sticker (3M胶) * Put the battery holder as close as possible Not included to the back universal wheel, otherwise the Bitcar may fail to stand up. （* 安装时使电池盒尽可能的靠近后万向轮， 否则可能会影响 BitCar 小车站立）...
- Page 6 Left & Right Wheels (左右车轮) You’ll need (你需要准备) Right wheel (右车轮) Left wheel (左车轮) Motor shaft through the ‘D’ hole (电机转轴插入D型孔)
- Page 7 Acrylic Plates (亚克力板) You’ll need (你需要准备) Rear acrylic plate (尾部亚克力板) 2x Side acrylic plates (侧边亚克力板) M3*60mm coupling nut (侧边亚克力板) 2x M3x6mm screws (M3*6mm 螺丝) Front acrylic plate (前端亚克力板）...
- Page 8 Connect micro:bit (连接micro:bit 控制板) You’ll need (你需要准备) *micro:bit (micro:bit 控制板 ) * The micro:bit is not included in this kit. （* micro:bit 控制板不包含在此套件内）...
- Page 9 Connect Ultrasonic Sensor (连接超声波传感器) You’ll need (你需要准备) Ultrasonic Sensor (超声波传感器)
- Page 10 Complete (完成)
- Page 11 Quick Start with MakeCode (MakeCode快速上手指南) 1. Go to makecode.microbit.org 3. Added package will look like this: (前往 makecode.microbit.org) (添加后的扩展积木将如下图所示) 2. Add ‘BitCar’ extension by keyword ‘bitcar’or ‘github URL’ (通过搜索关键字‘bitcar’或 ‘github URL’ 添加‘BitCar’ 积木扩展) Github URL: Extensions github.com/CH-MAKER-Ed/pxt-BitCar...
- Page 12 Thank you for using BitCar and learn coding with it. To improve user experience and deliver better product for STEAM education, if you have any problem or any feedback, please contact us with email or via our social media. 感谢您使用柴火的 BitCar 编程小车。为了提供更优质的STEAM教育产品，如果您对我们的...
- Page 13 Let’s try a line-following code 让我们来写一个小车巡线程序吧 * Try change the speed to improve performance. (试试改变速度值来提高巡线的表现。)
