Summary of Contents for Tekneka WLD500

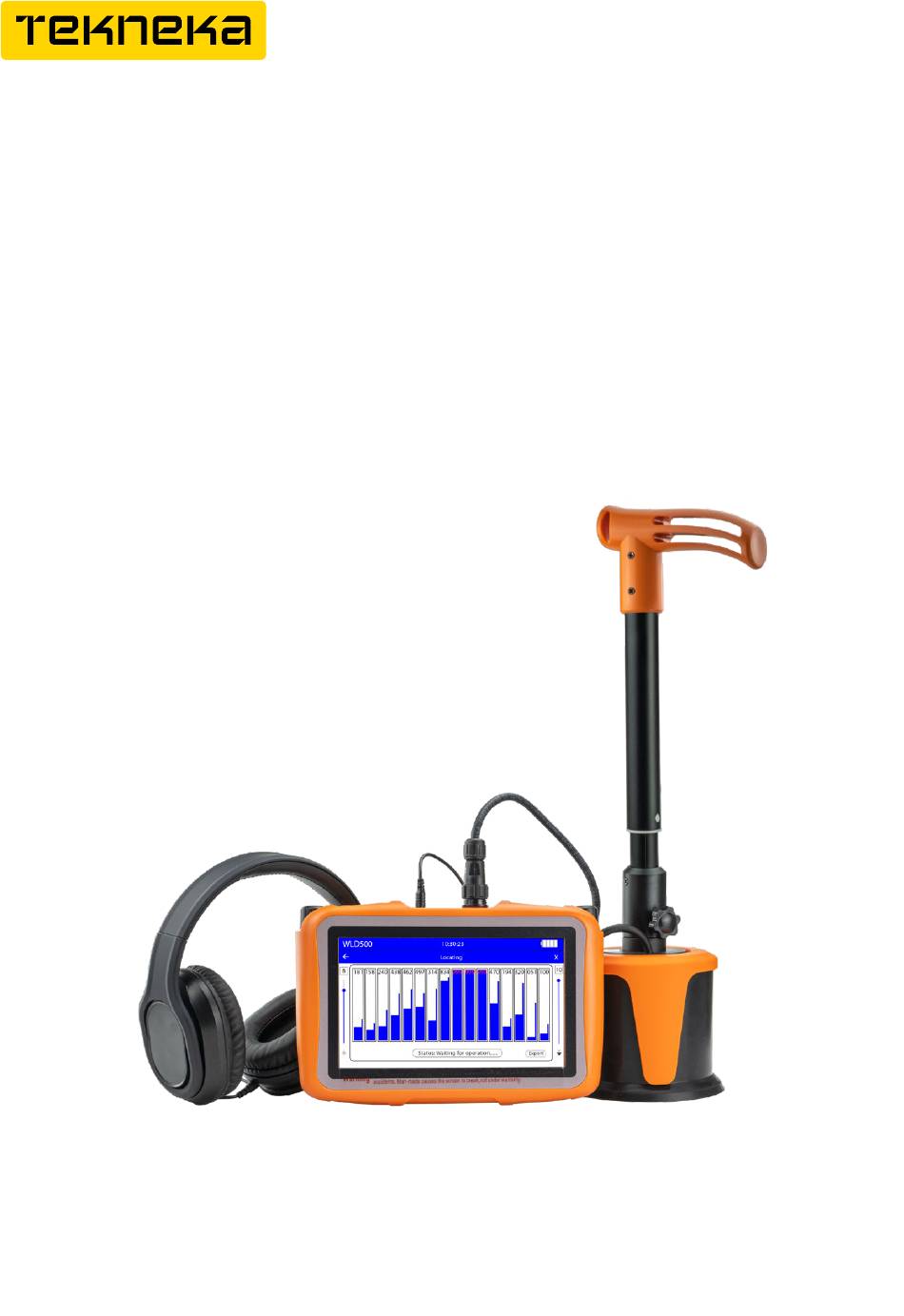

- Page 1 User Manual WLD500 Water Leak Detector Read this manual carefully before using this Device...
- Page 2 Introduction Tekneka WLD500 is an advanced water leak detector, Facilitates users to detect pipe water leaks up to 5 meters in depth. 7” Digital touch LCD display performs very well in the outdoor light condition and helps to analyze detected noise frequencies (1 ~ 10,000 Hz).
- Page 3 Package Includes Extendable outdoor Sensor stick Headphone with 3.5 jack cable Universal Adapter Plugs USB & Micro SD card Charging Adapter, 5 V (USB type) Carrying case with lock Telescopic steel rods Round steel base Monitor 10. Carrying Strap 11. Acoustic Outdoor Sensor Specification Description Ranges...
- Page 4 & record acoustic sounds. This WLD500 has a unique feature to distinguish between environmental noise and underground water leak sound. This difference shall be identified through spectrum signals on the screen (thick &...
- Page 5 Operating Instructions 7. Default soil texture & pipe material will be soft & plastic. Based on the outdoor environ- ment you shall select soil texture: Hard/pipe pipe Material: Plastic, Metal, Unknown Fig.2.2 _Outdoor Mode General Detection mode 1. “General Detection” or “Locating” mode helps you to detect the water leakage by observing acoustic sound through the headphone.
- Page 6 Locating mode 1. Select “ Locating Mode” and press the gain button to receive sound frequency from the sensor. Then press the volume button to enable acoustic sound. Rotate both nobs to increase or decrease it’s ranging. Fig. 3.3 _Locating Mode Identification Sample 2.
- Page 7 Recording Settings MIC ON/OFF: Click “MIC Off” to record operator‘s voice which helps to listen leakage noise along with location voice notes. Recording: Click to record underground noise and press again to stop recording. Connect PC: First, connect the USB to PC and click “Connect PC”...
- Page 8 Copyright © 2021 Tekneka Instruments Inc. Canada. All rights reserved including the right of reproduction in whole or in part in any form. info@tekneka.com www.tekneka.com...
