Summary of Contents for Ronix 4203

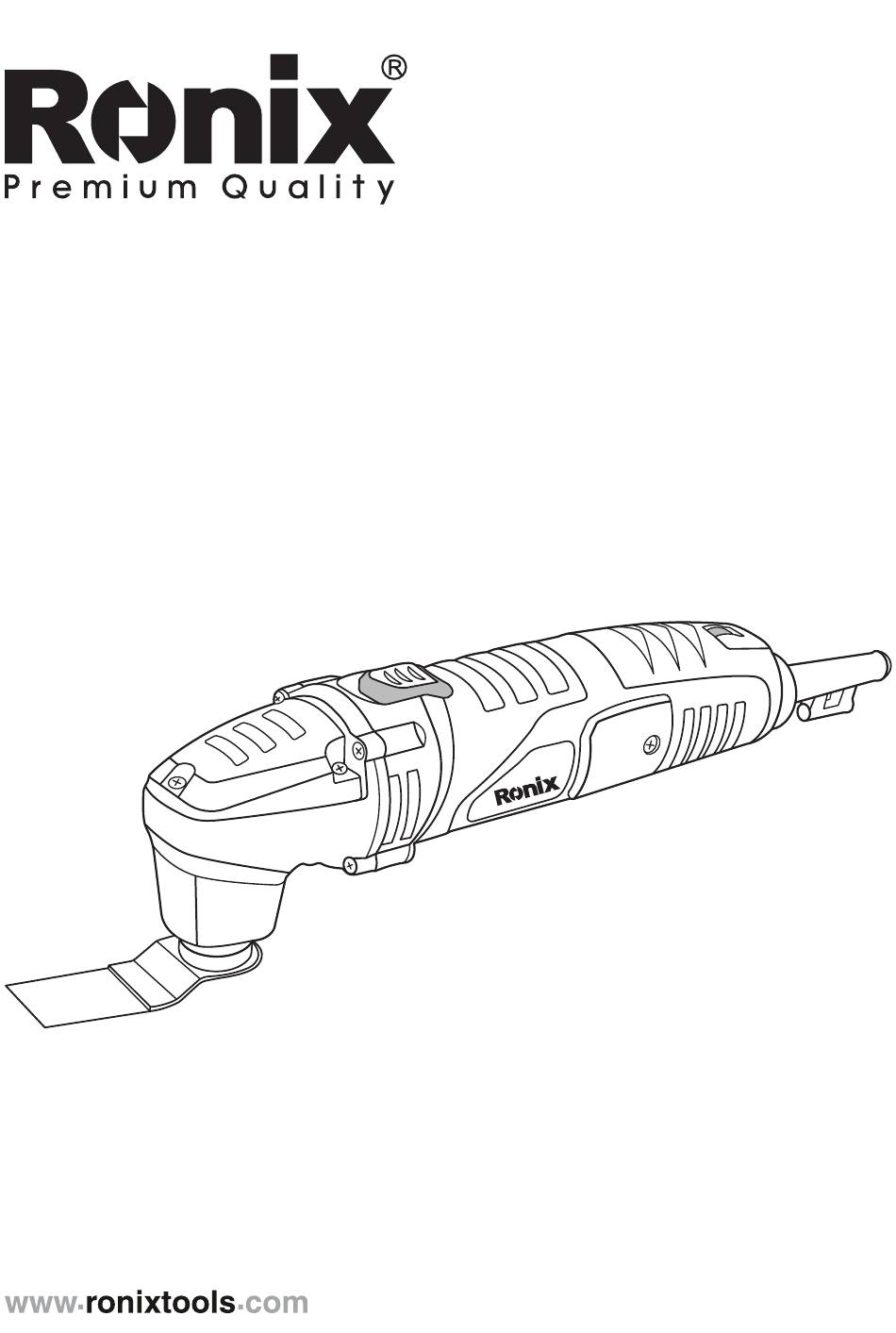

- Page 1 MULTI-FUNCTIONAL TOOL 4203...
-
Page 2: Specification
SPECIFICATION Model 4203 Rated power 250W voltage 220-240V Rated Frequency 50-60Hz No-load Stroke Rate 10000-21000OPM Oscillating Angle Weight 1.35Kg PACKAGE CONTENTS Allen key Instruction manual Sanding Paper Saw blade triangle sand PART LIST Thumbwheel for Speed Preselection I/O Switch Power Cord... -
Page 3: General Safety Rules
SYMBOLS To reduce the risk of injury. User must read instruction manual. Double insulation WARNING! Wear eye protection Wear ear protection Wear dust mask GENERAL SAFETY RULES WARNING! Read all instructions failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “power tool”... -
Page 4: Electrical Safety
ELECTRICAL SAFETY a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. - Page 5 e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
- Page 6 SERVICE a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. SAFETY WARNINGS FOR MULTI-CUTTERS Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord.
-
Page 7: Hand / Arm Vibrations
- Wear protective gloves when changing application tools/accessories. Application tools/accessories become hot after prolonged usage. - Do not scrape wetted materials (e. g. wallpaper) or on moist surfaces. Penetration of water into the machine increases the risk of an electric shock. - Do not treat the surface to be worked with solvent-containing fluids. -
Page 8: Assembly And Adjustment
ELECTRICAL SAFETY The electric motor has been designed for one voltage only. Always check that the power supply corresponds to the voltage on the rating plate. Your power tool is double insulated. ASSEMBLY AND ADJUSTMENT NOTE: Before using the tool, read the instruction book carefully. Prior to assembly and adjustment always unplug the tool. -
Page 9: Dust/Chip Extraction
- Fasten the application tool/accessory with bolt. Tighten the bolt with Allen key until the spring washer of the bolt faces flush against the application tool/accessory. Check the tight seating of the application tool/accessory. Incorrect or not securely fastened application tools/accessories can come loose during operation and pose a hazard. -
Page 10: Switching On And Off
SWITCHING ON AND OFF - To start the machine, push the switch towards the front(I) - To switch off the machine, push the switch towards the back(0) SPEED PRESELECTION Increasing the oscillating frequency: - Push thumbwheel towards the back. Decreasing the oscillating frequency: - Push thumbwheel towards the front. - Page 11 CLEANING Keep the ventilation slots clear and regularly clean the housing with a soft cloth. UNWANTED TOOLS AND THE ENVIRONMENT Take your tool to an authorized power repair agent where it will be disposed of in an environmentally safe way. MULTI-FUNCTIONAL TOOL...
