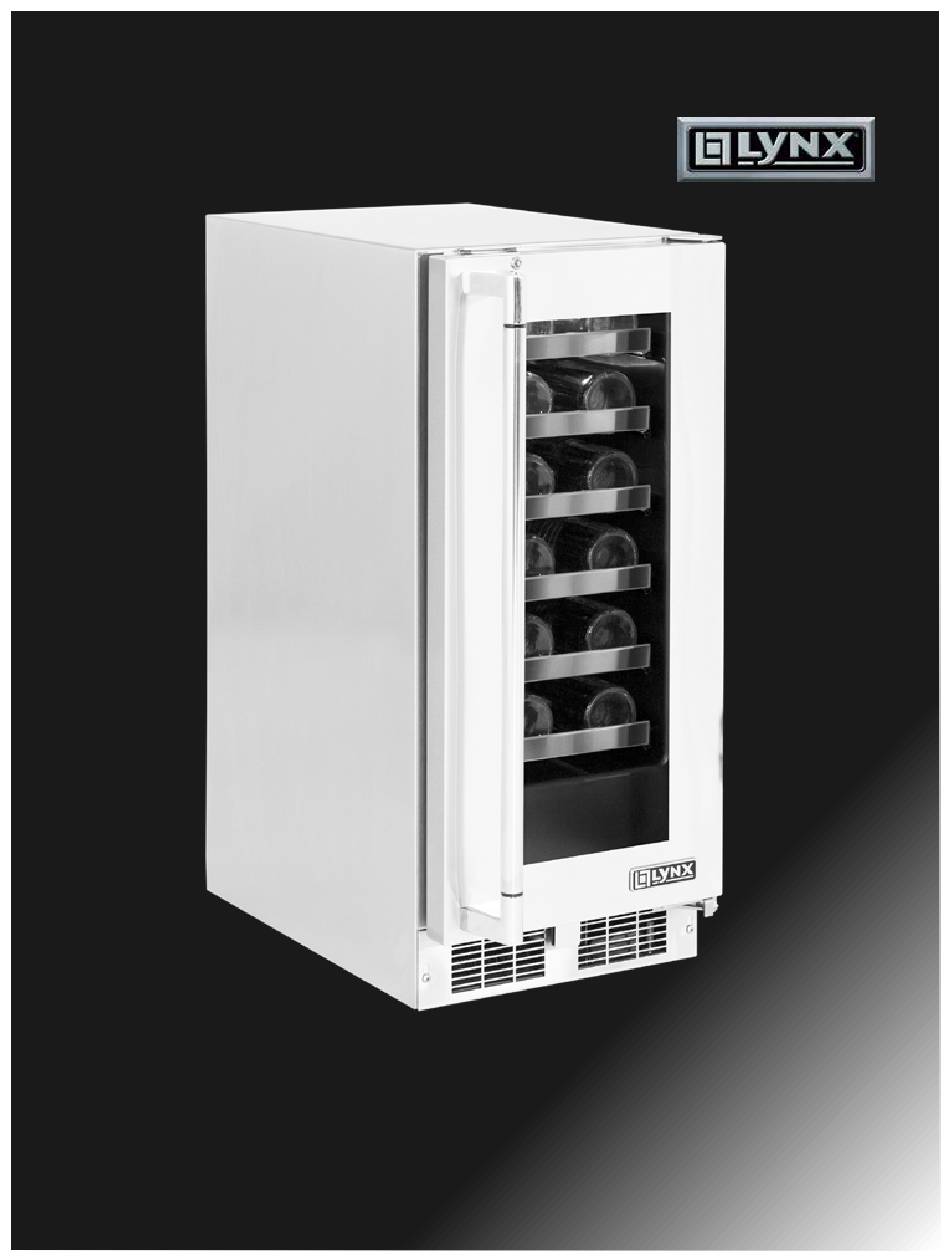

  • Page 1 MAKE THE MOST OF YOUR LN15WINE OUTDOOR WINE CELLAR CARE & USE/INSTALLATION...
  • Page 2: Table Of Contents

    CONTENTS AND SAFETY INSTRUCTIONS Important Safety Instructions Contents Safety information ...............2 Warnings and safety instructions appearing in this guide Unpacking your appliance ..........3 are not meant to cover all possible conditions and situa- Warranty registration .............3 tions that may occur. Common sense, caution, and care Installing your appliance ............4 must be exercised when installing, maintaining, or operat- Cabinet clearances ............4...
  • Page 3: Unpacking Your Appliance

    UNPACKING YOUR APPLIANCE Warranty Registration WARNING It is important you send in your warranty registration card EXCESSIVE WEIGHT HAZARD immediately after taking delivery of your appliance or you can register online at: Use two or more people to move product. www.lynxgrills.com/support/registration Failure to do so can result in personal injury.
  • Page 4: Installing Your Appliance

    Adjustable legs at the front and rear corners of the appli- ance should be set so the unit is firmly positioned on the floor and level from side to side and front to back. The over- all height of your Lynx appliance may be adjusted between the minimum, 33 ⁄...
  • Page 5: Electrical Connection

    INSTALLING YOUR APPLIANCE WARNING Electrical Shock Hazard Do not remove • Do not use an extension cord with this appliance. ground prong They can be hazardous and can degrade product performance. • This appliance should not, under any circumstanc- es, be installed to an un-grounded electrical supply. •...
  • Page 6: Installing The Anti-Tip Device

    INSTALLING THE ANTI TIP DEVICE (FREESTANDING INSTALLATIONS) Anti-Tip WARNING Bracket Leveling Leg • ALL APPLIANCES CAN TIP RESULTING IN INJURY. • INSTALL THE ANTI-TIP Bottom View of ⁄ " BRACKET PACKED WITH Wine cellar (54.6 cm) THE APPLIANCE. • FOLLOW THE INSTRUC- TIONS BELOW Front of cabinet Figure 7...
  • Page 7 INSTALLING THE ANTI TIP DEVICE (FREESTANDING INSTALLATIONS) NOTE When the floor mounted anti-tip bracket is used the mini- mum adjusted height of the cabinet is increased by ⁄ " (9 mm). "V" notches Rear Leveling leg in bracket Figure 8a Screw ⁄...
  • Page 8: Product Dimensions

    ⁄ " to 34 ⁄ " ⁄ " ⁄ " ⁄ " ⁄ " LN15WINE (38.1 cm) (86.4 to 88.9 cm) (37.8 cm) (85.7 to 88.3 cm) (60.2 cm) (67.9 cm) (95 cm) (45.1 cm) "A" "B" "E" Figure 9 "C"...
  • Page 9 PRODUCT DIMENSIONS PRODUCT DATA ELECTRICAL PRODUCT MODEL REQUIREMENTS # WEIGHT 105 lbs LN15WINE 115V/60Hz/15A (47.7 kg) "J" "H" "G" "D" "E" Figure 11 ⁄ " (54.6 cm) "F" * Depth dimension of rough-in opening may vary depend- ing on each individual installation. To recess entire door "F"...
  • Page 10: Using Your Electronic Control

    USING YOUR ELECTRONIC CONTROL Figure 12 Electronic control Control Function Guide Function Command Notes ON/OFF Press and hold for 5 seconds. Unit will immediately turn ON or OFF. Press and release to leave interior light on for After 12 hours, factory default is restored; light will turn on when Leave Interior Light On 3 hours;...
  • Page 11: Shelving Con Igurations

    SHELVING CONFIGURATION Shelving Configuration Your Lynx Grills appliance is equipped with full extension ball bearing shelf glides to provide maximum access and visibility for the product stored on the shelving arrangement listed below. Single Zone Wine Cellar: 15" (38.1 cm) Wide models:...
  • Page 12: Care And Cleaning

    CARE AND CLEANING Front Grille WARNING Be sure that nothing obstructs the required air flow open- ings in front of the cabinet. At least once or twice a year, Electrocution Hazard brush or vacuum lint and dirt from the front grille area (see •...
  • Page 13: Long Term Storage/Winterization

    CARE AND CLEANING 18. Do not place a cover on the unit, as this can trap con- Long Term Storage/Winterization densation. 1. Time to Winterize, when the daily low ambient tempera- After completion of the above, you may choose to store the ture is at or below 38°F (3.3°C).
  • Page 14: Stainless Steel Maintenance

    STAINLESS STEEL MAINTENANCE After the stainless surfaces have been thoroughly cleaned, Background a good quality car wax may be applied to help maintain the Stainless steel does not stain, corrode, or rust as easily as finish. ordinary steel, but it is not stain or corrosion proof. Stain- less steels can discolor or corrode if not maintained prop- erly.
  • Page 15: Energy Saving Tips

    Energy Saving Tips • If the product is within the first year warranty period please contact your dealer or call Lynx Grills Customer The following suggestions will minimize the cost of Service at 888.289.5969 for directions on how to obtain operating your refrigeration appliance.
  • Page 16: Troubleshooting

    TROUBLESHOOTING Before You Call for Service If the appliance appears to be malfunctioning, read through CAUTION this manual first. If the problem persists, check the trouble- shooting guide below. Locate the problem in the guide and In the unlikely event you lose cooling in your unit, do not refer to the cause and its remedy before calling for service.
  • Page 17: Warranty

    Any sealed refrigeration system component, as listed below, is warranted to be free from defective materials or workmanship in normal household use during the third through the sixth year from the date of original retail purchase. Lynx, warranter, agrees to repair or replace, at its option, any part which fails or is found to be defective during the warranty period.
  • Page 18 The best outdoor kitchen products come from: Lynx Grills Service: (888)-289-5969 www.lynxgrills.com 41016157 Rev A All specifications and product designs subject to change without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, replacements or compensation for 6/11/21 previously purchased products.
