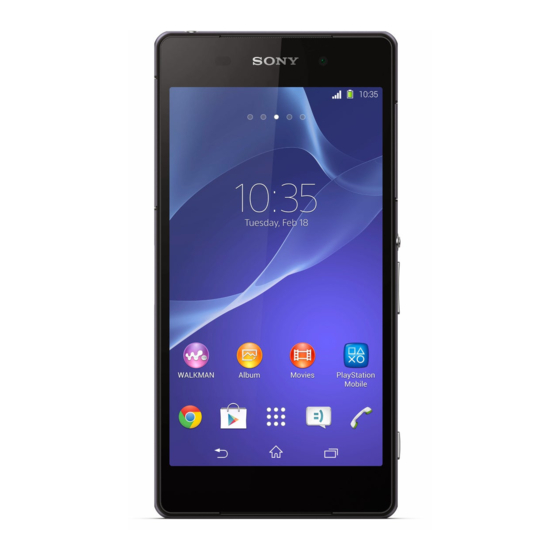

Sony Xperia Z2 Manual
Hide thumbs
Also See for Xperia Z2:
- User manual (121 pages) ,
- Working instructions (80 pages) ,
- White paper (25 pages)
Related Manuals for Sony Xperia Z2
Summary of Contents for Sony Xperia Z2
- Page 1 Component Replacement - electrical - Xperia D6502, D6503, D6543, L50w 1287-4317 Rev 2 Sony Mobile Communications AB – Company Internal...
- Page 2 1220-1336: Generic Repair Manual - electrical Test after electrical replacement: refer to 1273-1772 Mechanical Test Instruction Do not remove shield can lids (Heat pasta are added and RF performance will be damaged) 1287-4317 Rev 2 Sony Mobile Communications AB – Company Internal 2(11)
-
Page 3: Replaceable Components
HA/ST = Hot Air for removal - Soldering Tool for mounting BGA = BGA Station BH = Bottom Heater ADDITIONAL INFORMATION 1 (2,3,4, etc.) = Proceed to ‘Additional Repair Info’ for further instructions in the indicated section(s). 1287-4317 Rev 2 Sony Mobile Communications AB – Company Internal 3(11) - Page 4 X8400 Conn Leaf Spring Plug 1p 1238-5878 S HA+BH 16 X8650 Conn Leaf Spring Plug 1p Antenna/Groundi 1238-5878 P HA+BH 16 X8651 Conn Leaf Spring Plug 1p Antenna/Groundi 1287-4317 Rev 2 Sony Mobile Communications AB – Company Internal 4(11)
-
Page 5: Component Placing
Component Placing To access the Component Placing document, double-click the icon below. Applicable for on-screen viewing only – icon not shown on hard-copies. Primary side Secondary side 1287-4317 Rev 2 Sony Mobile Communications AB – Company Internal 5(11) -
Page 6: Additional Repair Info
Protect the BtB connector with capton tape! R2200 Replace if open circuit (USB charger or data transfer not working) Protect the USB and SIM connectors with capton tape! 1287-4317 Rev 2 Sony Mobile Communications AB – Company Internal 6(11) - Page 7 Replace if mechanical damaged (Main charger not working) Protect the BtB connectors with capton tape! X2200 Replace if mechanical damaged (USB charger or data transfer not working) Protect the SIM connector with capton tape! 1287-4317 Rev 2 Sony Mobile Communications AB – Company Internal 7(11)
- Page 8 Replace if mechanical damaged (No network, restart, No SIM card inserted) Protect the USB connector with capton tape! X8000,X8001, X8002 Replace if mechanical damaged (No or bad GPS) Protect the USB connector with capton tape! 1287-4317 Rev 2 Sony Mobile Communications AB – Company Internal 8(11)
- Page 9 X8400 Replace if mechanical damaged ( no or bad WLAN/ BT) Protect the RF connector with capton tape! X8650,X8651 Replace if mechanical damaged ( no or bad NFC) 1287-4317 Rev 2 Sony Mobile Communications AB – Company Internal 9(11)
-
Page 10: Revision History
Revision History Rev. Date Changes / Comments 2014-05-28 Initial release 2014-05-28 X1300 and X1301 position corrected 1287-4317 Rev 2 Sony Mobile Communications AB – Company Internal 10(11) - Page 11 1287-4317 Rev 2 Sony Mobile Communications AB – Company Internal 11(11)
