Summary of Contents for For-x MAESTRO-DSD

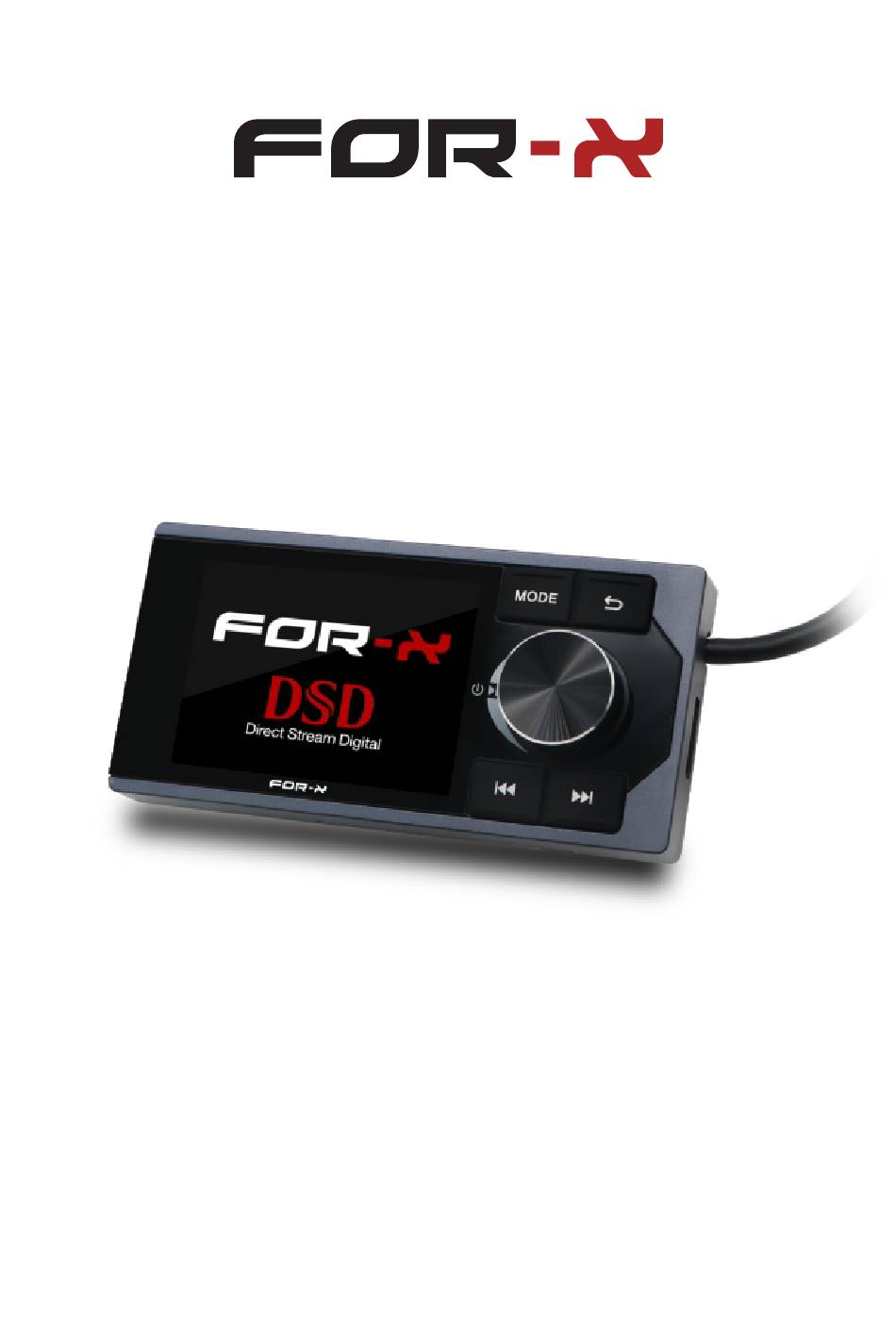

- Page 1 MAESTRO-DSD Car Use DSD Lossless Music Player OWNER’S MANUAL...
-
Page 2: Chapter I Introductions
Chapter I Introductions 1.Product Features Manufacturing Technology of High Precision CNC Aluminum Alloy Shell; Supports TF card and USB flash disk playing with capacity up to 512G; High definition 2.4 inch true color IPS display screen , music file name and pictures display function;... - Page 3 2.Product Diagram and Function Font view: Mode Back Last song / Fast Backward Display screen Next song / Next song Side views： Audio Output USB-Inteface...
-
Page 4: Wiring Diagram
TF card slot 3：Wiring diagram： Voltage：12V,current: 0.5A power supply Dedicated converter (optional accessory) Signal cable (1.5m) Coaxial output RCA analog output Optical output... -
Page 5: Chapter Ii Quick Actions
CHAPTER II Quick Actions 1.Turn-on When the power is turned on, the player will start automatically. After the startup logo is displayed, it will enter the playback state before the last power failure. 2.Shutdown Auto shut down when power of . 3.Standby and restart After the player is powered on, press the knob for 3 seconds to enter the standby mode;... -
Page 6: Chapter Iii Dsp Function Settings
Chapter III DSP Function Settings DSP settings Play mode Sound settings Delete 1.DSP sound source After entering settings, there are 6 sound sources options: High level / Low level /Aux/ Optical / Bluetooth /USB. DSP sound source DSP mode DSP volume DSP communication 2.DSP mode After entering settings, there are 4 sound sources options which are mode 1 \... -
Page 7: Chapter Iv File Management And Player
Chapter IV File Management and player 1 .Delete files In the playback/pause state, press the "MODE" key to display the "Delete" menu, select Delete and confirm, that is, delete the current song. DSP settings Play mode Sound settings Delete 2.Classification of songs In the main menu state, press the "... -
Page 8: Chapter V System Settings
Chapter V System Settings I n t h e m a i n m e n u s t a t e , p r e s s t h e " " o r " " t o s e l e c t t h e "... -
Page 9: Chapter Vi Other
Chapter VI Other I.Troubleshooting： ► No display after power-on Solution: check whether the power wiring is correct. The black power line is the ground wire, the yellow line is connected to the 12V positive pole of the normal power supply, and the red line is connected to the 12V positive pole of the key power supply. -
Page 10: Technical Specifications
2.Technical specifications: MAESTRO-DSD Car use lossless music player Product Name Support memory Maximum 512G card capacity LCD Display Size: 2.4 inch IPS TFT display Resolution: 320*240 Screen Power supply Dedicated adapter box power supply (optional) ≥110dB 0.0005% Break-point play Support break-point play and power-of memory...
