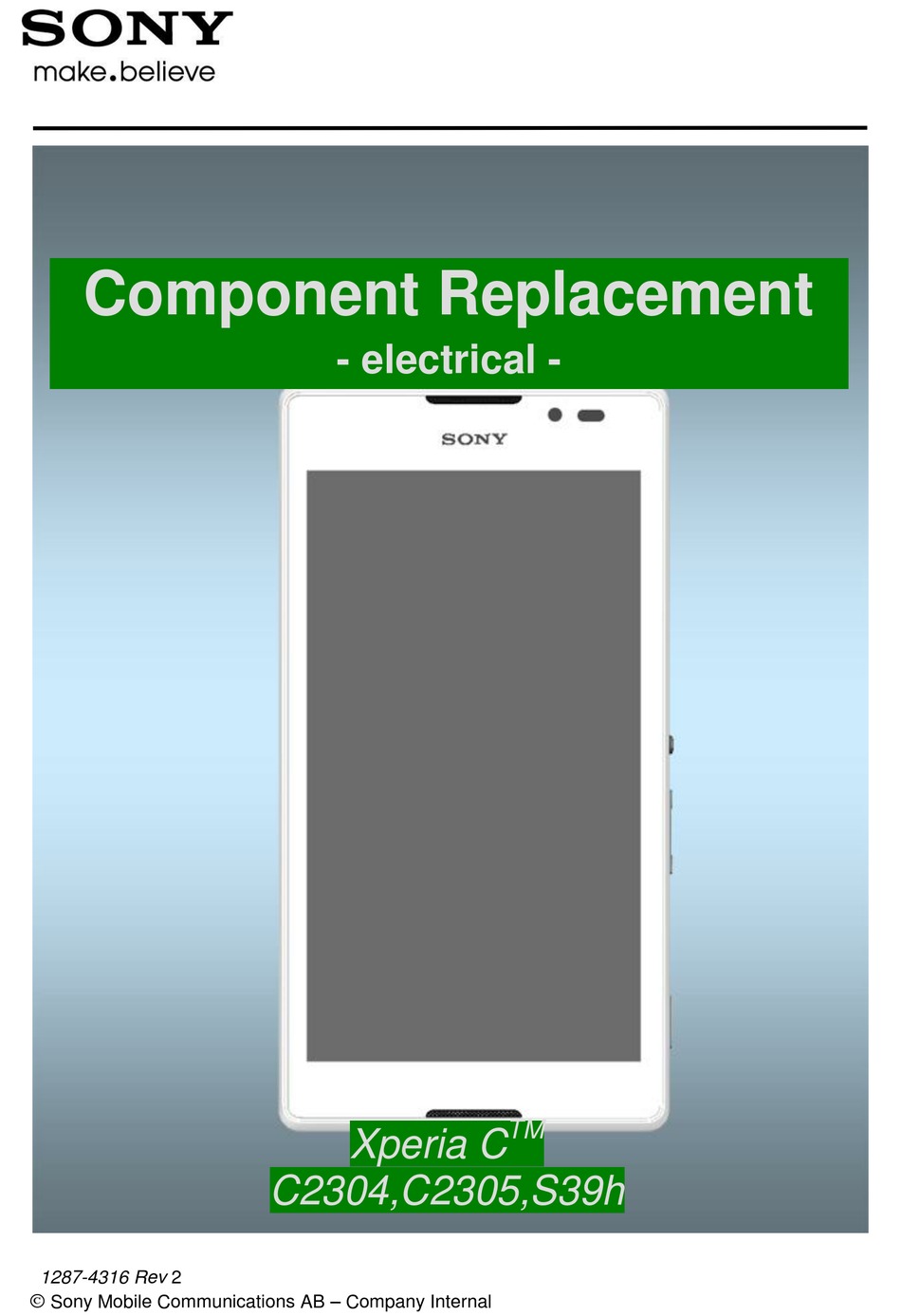

- Page 1 Component Replacement - electrical - Xperia C C2304,C2305,S39h 1287-4316 Rev 2 Sony Mobile Communications AB – Company Internal...
- Page 2 1220-1336: Generic Repair Manual - electrical Test after electrical replacement: refer to 1273-1772 Mechanical Test Instruction Do not remove shield can lids (Heat pasta are added and RF performance will be damaged) 1287-4316 Rev 2 Sony Mobile Communications AB – Company Internal 2(8)
- Page 3 HA/ST = Hot Air for removal - Soldering Tool for mounting BGA = BGA Station BH = Bottom Heater ADDITIONAL INFORMATION 1 (2,3,4, etc.) = Proceed to ‘Additional Repair Info’ for further instructions in the indicated section(s). 1287-4316 Rev 2 Sony Mobile Communications AB – Company Internal 3(8)
- Page 4 Connector Coax Receptacle 1p test switch A/314-0000-00282 S HA+BH 6 JRF1000 Connector Coax Receptacle 1p test switch A/314-0000-00282 S HA+BH 7 JRF1601 A/315-0000-00071 S HA+BH 8 SW1301 Input Switch (Reset button) 1287-4316 Rev 2 Sony Mobile Communications AB – Company Internal 4(8)
- Page 5 Component Placing To access the Component Placing document, double-click the icon below. Applicable for on-screen viewing only – icon not shown on hard-copies. Primary side Secondary side 1287-4316 Rev 2 Sony Mobile Communications AB – Company Internal 5(8)
- Page 6 Protect the BtB connector with capton tape! J1002 Replace if mechanical damaged. (No or bad network, main antenna) J1100 Replace if mechanical damaged. (No or bad audio in headset) 1287-4316 Rev 2 Sony Mobile Communications AB – Company Internal 6(8)
- Page 7 Replace if open circuit 1-2 ( No or bad WLAN/ BT) SW1301 Replace if short circuit (Restart) or if open circuit when pushed (reset not possible). Protect the RF connector with capton tape! 1287-4316 Rev 2 Sony Mobile Communications AB – Company Internal 7(8)
- Page 8 Revision History Rev. Date Changes / Comments 2014-05-13 Initial release 2014-08-14 J1101 USB connector removed from parts list. (Side glued) 1287-4316 Rev 2 Sony Mobile Communications AB – Company Internal 8(8)
