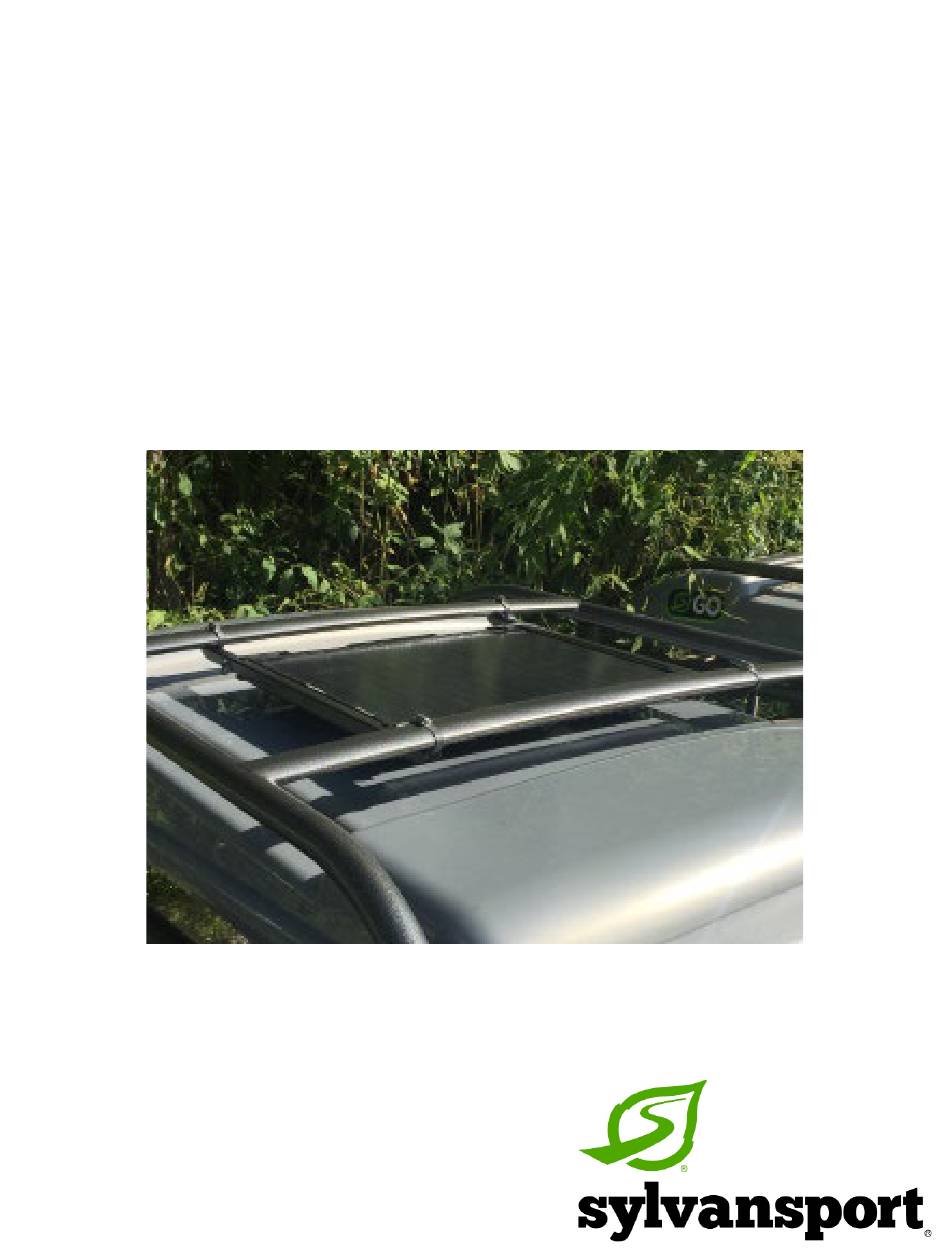

- Page 1 Sunny Side Up Installation Manual...
-
Page 2: Tools Required
Configuration Tools Required Tape Measure 5/16” Socket Driver Power Drill with 3/16” Bit 3/4” Drill Bit Rivet (Forstner syle preferred) Installation Tool 8mm Wrench (automatic shown, (optional) but manual too is fine too) 3mm Hex Wrench... - Page 3 Solar Panel Mount Installation Components Long Rails x2 Short Rails x2 Bolts x4 Sticky Pads x4 Nuts x4 Large Bumpers x4 Washers x8 Band Clamps x4 Pine Tree Clips x4 Cotter Pins x4 Small Bumpers x8...
- Page 4 Insert 4 Small Bumpers into a Short Rail as shown. Do the same for the other Short Rail and remaining 4 Small Bumpers. You can use the hex wrench to help push the bumpers in. Insert 2 Large Bumpers into a Long Rail as shown.
- Page 5 Place 2 Sticky Pads onto a Long Rail centered on the ends. Do the same for the other Long Rail and remaining 2 Sticky Pads. Line the 2 Short Rails and 2 Long Rails as shown. Attach the four rails together through the bottom holes shown below.
- Page 6 Set the mount assembly on the top of the GO pod below the bars as shown. The Short Rails should pivot outward to accommodate the solar panel. Place your solar panel into the mount. Ensure that the cord is below the mount rails.
- Page 7 Insert all 4 Cotter Pins through the outer holes in the Long Rails and push them all the way through. Run the 4 Band Clamps through the openings, and wrap them around the GO rails. Ensure that the mount is centered on the GO, and tighten all 4 Band Clamps down using your socket driver.
- Page 8 Tighten the nuts at all 4 connection points using your wrench/driver and hex wrench.
- Page 9 Generator Mount Installation Components Securing Strap Generator Mounting Plate Flower Rivets Grommet...
- Page 10 Drill a 3/4” diameter hole in the back of the storage box. The center of the hole should be located 7/8” from the bottom of the box and 7/8” from the left side. Feed the female end of the power cable through the hole and push the Grommet over the plug.
- Page 11 Push the plug back into the Grommet until the end protrudes about 1/4”. Note: Again, some soap applied to the outside of the plug will make it easier to slide it into the grommet. Weave the Securing Strap through the slots on the Generator Mounting Plate as shown.
- Page 12 Install the Flower Rivets in each of the four holes to secure the Generator Mounting Plate in place. Install the Yeti 400 on the Generator Mounting Plate. Secure the Yeti 400 using the Securing Strap, cinching it tightly.
- Page 13 Attach cables as instructed in the Goal Zero instruction manual. Feed the cord from the solar panel down to the deck, and plug it into the grommet connector.
