Star Lake ETR1500 User Manual

Railway panel computer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

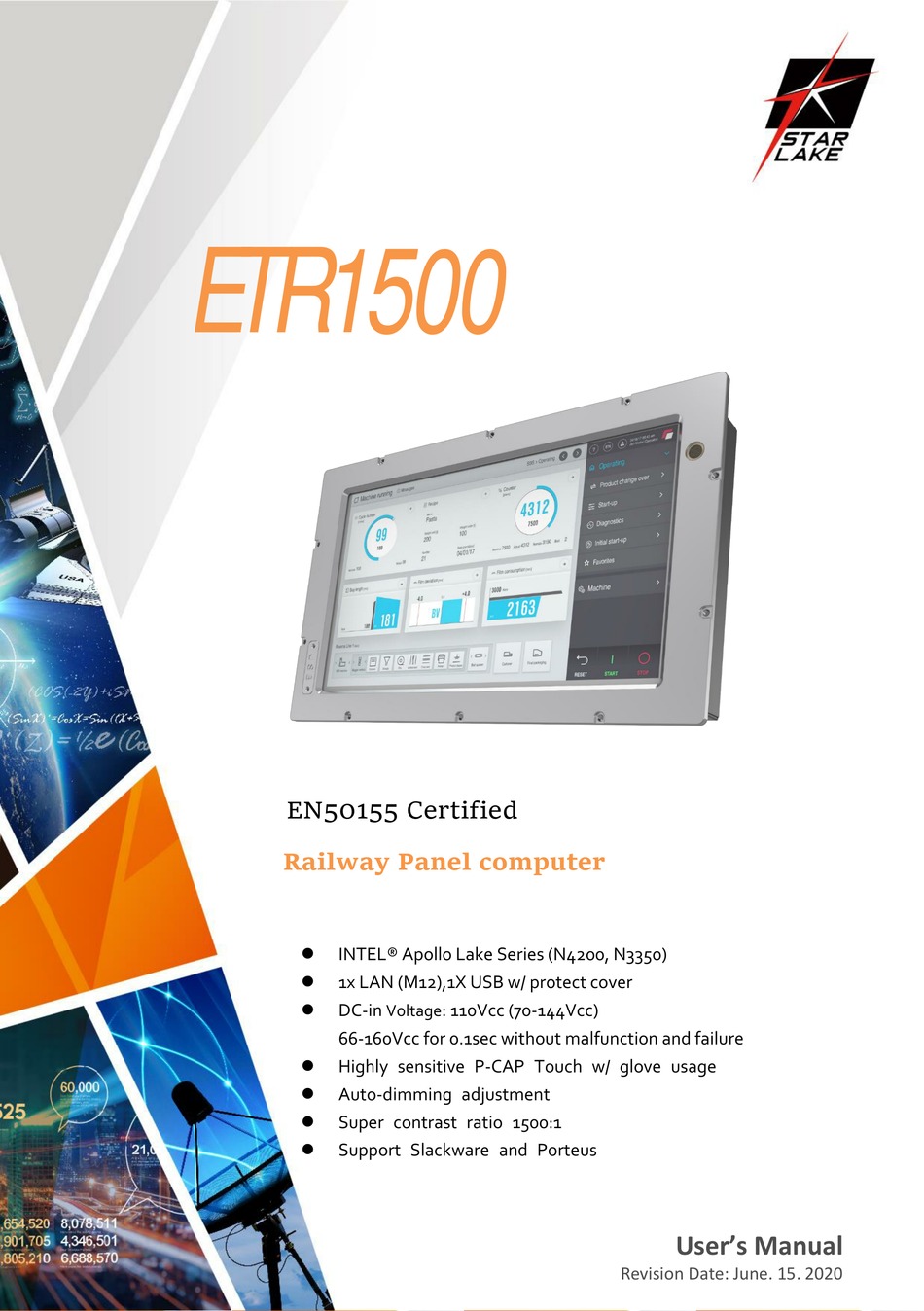

ETR1500
EN50155 Certified
Railway Panel computer
INTEL® Apollo Lake Series (N4200, N3350)
1x LAN (M12),1X USB w/ protect cover
DC-in
66-160Vcc for 0.1sec without malfunction and failure
Highly sensitive P-CAP Touch w/ glove usage
Auto-dimming adjustment
Super contrast ratio 1500:1
Support Slackware and Porteus
: 110Vcc (70-144Vcc)
Voltage
User's Manual
Revision Date: June. 15. 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ETR1500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Star Lake ETR1500

  • Page 1 ETR1500 EN50155 Certified Railway Panel computer  INTEL® Apollo Lake Series (N4200, N3350)  1x LAN (M12),1X USB w/ protect cover  DC-in : 110Vcc (70-144Vcc) Voltage 66-160Vcc for 0.1sec without malfunction and failure  Highly sensitive P-CAP Touch w/ glove usage ...

  • Page 2: Safety Information

    ETR1500 User’s Manual Revision Date: June. 15. 2020 Safety Information Electrical safety  To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system.  When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected.
  • Page 3 ETR1500 User’s Manual Revision Date: June. 15. 2020 Table Contents Safety Information Chapter 1: Product Introduction 1.1 Specifications 1.2 Front i/o Placement 1.3 rear i/o Placement 1.3 Mechanical Dimension Chapter 2: IO Introduction 2.1 USB 2.0 x1 (w/ Waterproof Cover) 2.2 2W2C female (A1 pos, A2 neg), 4-40 UNC threaded insert...
  • Page 4 ETR1500 User’s Manual Revision Date: June. 15. 2020 Safety Information Electrical safety  To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system.  When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected.

  • Page 5: Chapter 1: Product Introduction

    ETR1500 User’s Manual Revision Date: June. 15. 2020 Chapter 1: Product Introduction 1.1 Specifications System INTEL® Apollo Series (N4200, N3350) Up to 8 GB Memory type mSATA Up to 1TB Storage Display 15.6 Size 1920 *1080 Resolution 1500:1 Contrast Ratio...
  • Page 6 ETR1500 User’s Manual Revision Date: June. 15. 2020 Shock and Vibration according to EN 61373 class B category 1 IEC 60605, EN50121-3-2 Applications, Operating System Train journey, entertainment contents and commercial advertisements. Applications Windows 10 64 Bit, Ubuntu13.04, Ubuntu13.10, Ubuntu14.04, Fedora20 Operating System Full compatible to Slackware and Porteus Linux distribution 4.14.29...

  • Page 7: Mechanical Dimensions

    ETR1500 User’s Manual Revision Date: June. 15. 2020 1.4 Mechanical dimension Mechanical Dimensions...

  • Page 8: Chapter 2: Io Introduction And Pin Assigement

    ETR1500 User’s Manual Revision Date: June. 15. 2020 Chapter 2: IO INTRODUCTION AND PIN ASSIGEMENT 2.1 USB 2.0 x1 (w/ Waterproof Cover) 2.2 2W2C female (A1 pos, A2 neg), 4-40 UNC threaded insert 2.3 M12 D-coded connector...

  • Page 9: Chapter 3: Auto Dimming

    ETR1500 User’s Manual Revision Date: June. 15. 2020 Chapter 3: Auto Dimming Because the human eye perceiving brightness is nonlinear, PWM duty must be set percentage at each stage of opening and closing LCD Backlight: Level 10 = 100% Level 9 = 91%...

  • Page 10: Chapter 4: Wall Mount

    Revision Date: June. 15. 2020 Chapter 4: WALL MOUNT The ETR1500 can be panel mounted using 10 countersunk M4 screws and Nut. Make sure there is adequate space behind the panel for ventilation and I/O connectors, and that the panel material and thickness can...

  • Page 11: Chapter 5: Bios Setup

    ETR1500 User’s Manual Revision Date: June. 15. 2020 Chapter 5: BIOS Setup Once you enter the Aptio Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several setup functions and exit choices. Use the arrow keys to select among the items and press <Enter>...
  • Page 12 ETR1500 User’s Manual Revision Date: June. 15. 2020 This section allows you to configure your CPU and other system devices for basic operation through the following sub-menus. 5.3 Chipset...
  • Page 13 ETR1500 User’s Manual Revision Date: June. 15. 2020 5.3.1North Bridge Item Option Description 2 GB[Default] 2.25 GB Max TOLUD 2.5 GB Maximum Value of TOLUD. 2.75 GB 5.3.1SOUTH Bridge Item Option Description Serial IRQ Mode Quiet Configure Serial IRQ Mode.
  • Page 14 ETR1500 User’s Manual Revision Date: June. 15. 2020 Windows[Default] OS Selection Android Select the target OS. Intel Linux 5.4 Uncore configuration...
  • Page 15 ETR1500 User’s Manual Revision Date: June. 15. 2020 Item Option Description GOP Driver Enable[Default] Enable GOP Driver will unload VBIOS; Disable Disabled it will load VBIOS. Cd Clock Frequency 144 MHz 288 MHz 384 MHz Select the highest Cd Clock frequency 576 MHz supported by the platform.
  • Page 16 ETR1500 User’s Manual Revision Date: June. 15. 2020 5.5 South cluster configuration 5.6 SCC configuration Item Option Description SCC eMMC Support (D28:F0) Disable[Default], Enable/Disable SCC eMMC Support. Enable...
  • Page 17 ETR1500 User’s Manual Revision Date: June. 15. 2020 5.7 usb configuration Item Option Description XHCI Pre-Boot Driver Enable, Enable/Disable XHCI Pre-Boot Driver support. Disable[Default] Once disabled, XHCI controller would be Enable[Default] function disabled, none of the USB devices ae XHCI Mode Disable detectable and usable during boot and in OS.
