Summary of Contents for Warmlite WL42009
- Page 1 2000W PATIO HEATER YOUR SAFETY & INSTRUCTION MANUAL MODEL WL42009 PLEASE READ CAREFULLY www.warmlite.co...
-
Page 2: Technical Data
TECHNICAL DATA Description: Patio Heater Model: WL42009 Rated Voltage: 220 - 240V Frequency: ~ 50/60Hz Power Consumption: 2000W DOCUMENTATION We declare that this product conforms to the following product legislation in accordance with the following directive(s): 2014/30/EU Electromagnetic Compatibility Directive. - Page 3 On no account must either the brown or the blue Never attempt to reuse the plug or insert it into a wire be connected to the [EARTH] terminal. socket outlet as there is a danger of an electric shock. WARNING: This Appliance MUST be Earthed www.warmlite.co...
-
Page 4: Product Safety
PRODUCT SAFETY When using any electrical appliance, basic safety precautions should always be followed including the following: • Check that the voltage of the • Switch off at the wall socket main circuit corresponds with then remove the plug from the rating of the appliance the socket when not in use or before operating. - Page 5 www.warmlite.co...
- Page 6 • DO NOT rotate the appliance’s • WARNING! This heater is not heating element assembly while equipped with a device to it is turned on. Turn off the control the room temperature. appliance and allow it to cool DO NOT use this heater in small completely (for at least for 15 rooms when they are occupied...
-
Page 7: Before Your First Use
BEFORE YOUR FIRST USE: Remove your appliance from the packaging. Check that there is no damage to the cord or any visible damage to the body. Your appliance is now ready for normal use. Dispose of the packaging in a responsible manner. www.warmlite.co... - Page 8 ASSEMBLY: Join the Upper Post Assembly (5) and the Middle Post (6) together with 3 x M5X6 Insert the lower post assembly (8) into the screws. base assembly (10) and then fix it tightly by means of 4 x M6X30 screws, and insert the clamp (7) into the lower post (8).
- Page 9 (3). Once the angle is correct, tighten and put the power cord supply into the the Heating Element Tightening Knob. clamp. The angle can be adjusted from 0 to 45 degrees. www.warmlite.co...
-
Page 10: Using Your Appliance
WALL MOUNTING YOUR HEATER CLEANING AND CARE Your patio heater can be wall mounted for more Be sure to switch off the power supply at the permanent placing. wall socket and disconnect the plug before commencing cleaning. To mount, remove the three screws from the base of the mounting plate at the rear •... -
Page 11: Troubleshooting
If plugged in, make sure the Power button is in the On position. The heating Check with the manufacturer element lights or a qualified service person will not turn for repair. www.warmlite.co... - Page 12 1 year peace of mind. *To receive your extra guarantee period, register your appliance online within 28 days of purchase by visiting: www.warmlite.co Make sure to retain your original receipt. Should you have a problem...
Need help?
Do you have a question about the WL42009 and is the answer not in the manual?
Questions and answers

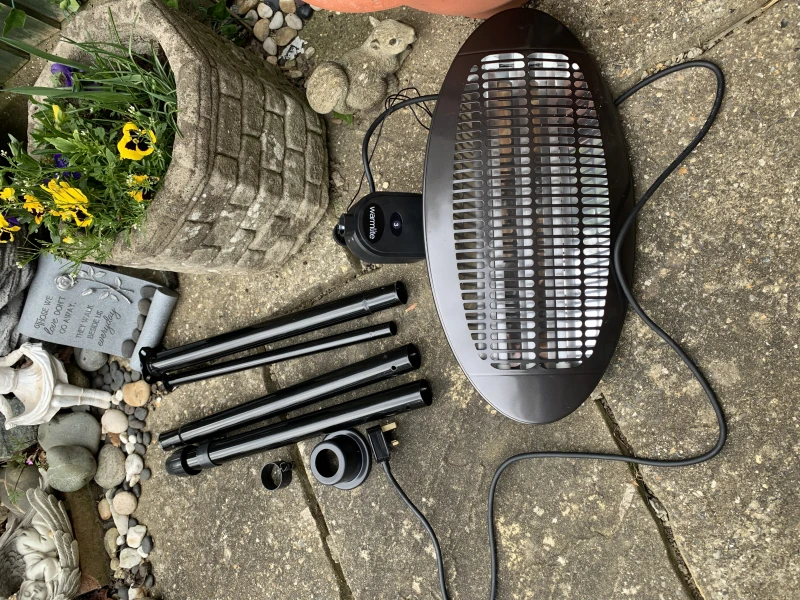

We have lost the instructions for putting this lamp together
To assemble the Warmlite WL42009 lamp:
1. Insert the Lower Post Assembly (part 8) into the Middle Post (part 6).
2. Use 3 x M5X6 screws to fix them together tightly.
3. Attach the Base Assembly (part 10) using 4 x M6X30 screws.
4. Insert the Clamp (part 7) into the Lower Post.
5. Join the Heating Element Assembly (part 1) with the Upper Post Assembly (part 5).
6. Adjust the angle of the Heating Element (0–45 degrees) using the Heating Element Tightening Knob (part 3) and tighten it.
7. Place the power cord into the clamp.
The lamp can be used free-standing or wall-mounted.
This answer is automatically generated
