Gembird WM-90F-01 User Manual

Tv wall mount (fixed)

Advertisement

TV wall mount (fixed)
TV-Wandhalterung (fest)
TV muurbeugel (vast)
Supporto TV a parete (fisso)
Uchwyt ścienny do telewizora (stały)
TV držák na stěnu (pevný)
Soporte de pared para TV (fijo)
Držiak na TV na stenu (pevný)
Suporte para TV na parede (fixo)
(

FEATURES

Heavy duty steel LCD screen wall mount
Supports most 43" - 90" LCD TV's
Automatic spring locks with quick release cords for easy
installation
VESA compatible, max. 800 mm x 400 mm
Distance to the wall: 29 mm
Includes all necessary installation materials

SPECIFICATIONS

Material: steel
Surface finish: powder coating
Color: fine texture black
Fit screen size: 43" - 90"
Vesa compatible: 200 mm x 200 mm,
300 mm x 200 mm, 400 mm x 200 mm,
300 mm x 300 mm, 400 mm x 300 mm,
400 mm x 400 mm, 600 mm x 400 mm,
800 mm x 400 mm
Weight capacity: 70 kg
Profile: 29 mm
Tilt range: N/A
Swivel range: N/A
Screen level: N/A
Installation: solid wall, double stud
(406 mm / 450 mm / 600 mm)
Net weight: 2.37 kg
22
Made
in China
PAP
www.gembird.eu
GEMBIRD EUROPE B.V. - Wittevrouwen 56, 1358CD Almere, The Netherlands
User manual | Benutzerhandbuch | Handleiding | Manuale d'uso |
Instrukcja obsługi | Uživatelský manuál | Manual de usuario | Používateľská príručka |
(
)
)
max. 70 kg
43" - 90"
Installation materials
M5x14
(x4) M6x14
(x4)
A (x2)
B (x1)
C (x8)
M-A
M-B
M8x50
(x4)
D5 (x4)
D (x2)
E (x8)
F (x1)
M-E
M-F

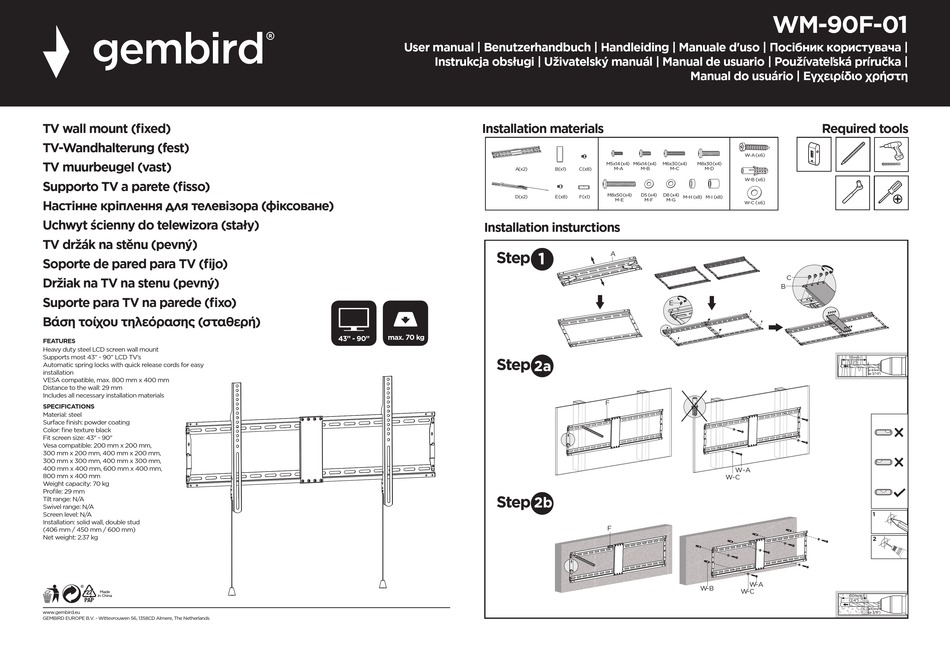

Installation insturctions
Step
1
F
F
WM-90F-01
Manual do usuário |
Required tools
W-A (x6)
M6x30
(x4)
M8x30
(x4)
M-C
M-D
W-B (x6)
D8 (x4)
M-H (x8)
M-I (x8)
M-G
W-C (x6)
C
B
E
X
W-A
W-C
W-A
W-B
W-C
|
55mm
(2.2")
ø 4.5mm
(ø 3/1 6")
1
2
60mm
(2.4")
ø 10mm
(ø 3/8")
