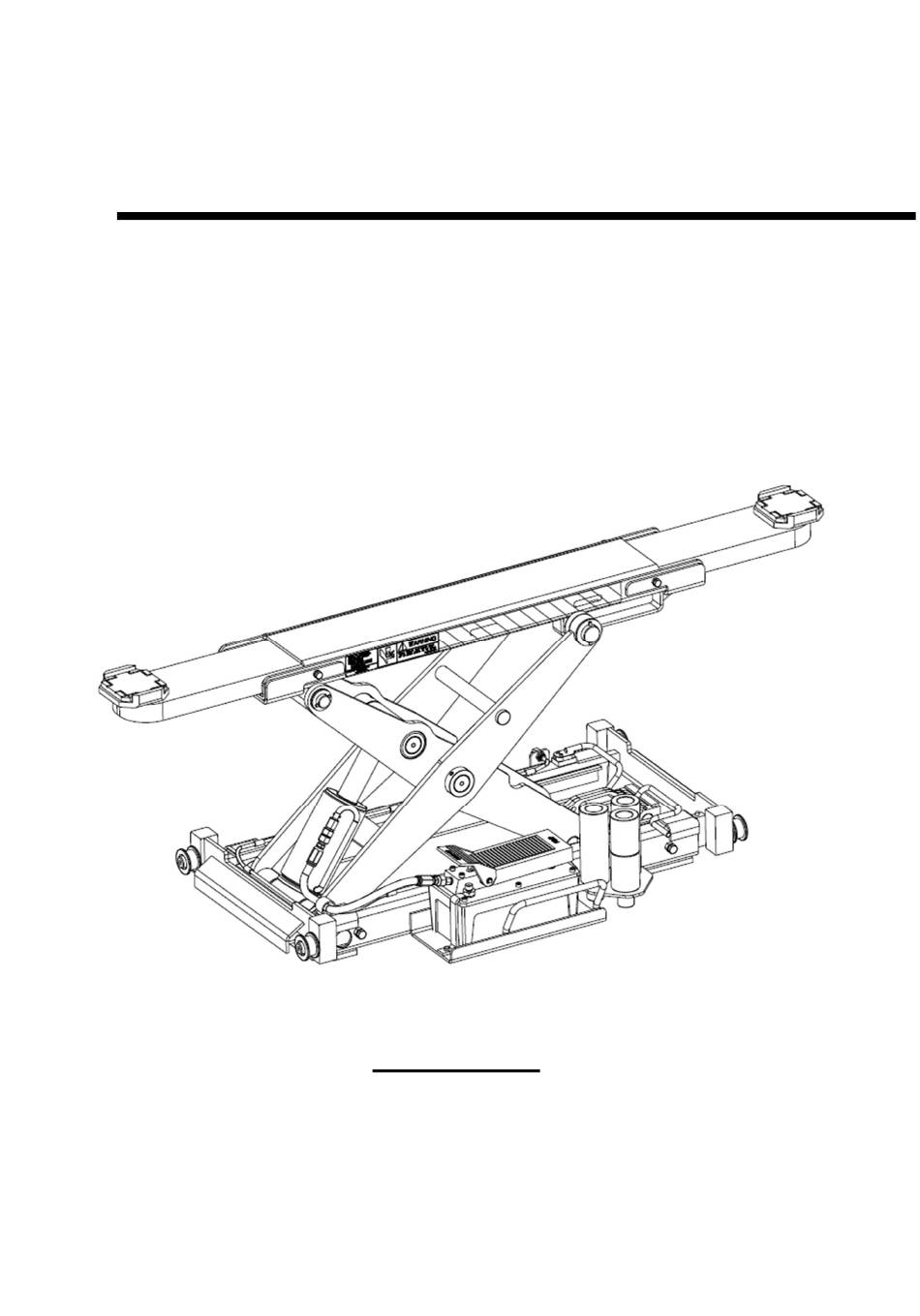

Installation, Operation & Maintenance Manual
R
J
F
A
L
OLLING
ACK
OR
LIGNMENT
IFT
EELS904A & EELS905A&
EELS906A
ADJUSTABLE AIR-HYDRAULIC ROLLING Jack Beam
CAPACITY: 6000 & 7000 & 7500LBS
309 Exchange Avenue, Conway, AR 72032
TEL: 800-225-5786
IMPORTANT:
READ THIS MANUAL COMPLETELY BEFORE
INSTALLING or OPERATING JACK
DECEMBER 2022 REV. D
EAZ0080V72A
Advertisement
Table of Contents
Summary of Contents for John Bean EELS904A
- Page 1 Installation, Operation & Maintenance Manual OLLING LIGNMENT EELS904A & EELS905A& EELS906A ADJUSTABLE AIR-HYDRAULIC ROLLING Jack Beam CAPACITY: 6000 & 7000 & 7500LBS 309 Exchange Avenue, Conway, AR 72032 TEL: 800-225-5786 IMPORTANT: READ THIS MANUAL COMPLETELY BEFORE INSTALLING or OPERATING JACK DECEMBER 2022 REV.
- Page 2 OWNER / EMPLOYER OBLIGATIONS 1. The Owner/Employer shall ensure that lift operators are qualified and that they are trained in the safe use and operation of the lift using the manufacturer’s operating instructions; ALI/SM 93-1, ALI Lifting it Right safety manual; ALI/ST-90 ALI Safety Tips card;...
- Page 3 Jack Beam INSTALLATION AND OPERATION MANUAL The Jack Beam should only be used with lifts installed on level concrete floors conforming to the installation instructions for the lift. Consult lift installation instructions for concrete thickness and strength requirements. Ensure clearance around and above lift conforms to installation instructions for the lift.
-
Page 4: Table Of Contents
Table of Contents Specifications ......................5 Shipping Contents....................6 Safety Instructions ....................6 Positioning of Jacking Beam on Lift ............... 7 Raising the Jack Beam ..................9 Lowering the Jack Beam ..................10 Storage Position of Jack Beam ................10 Positioning of Vehicle on Jack Beam .............. -
Page 5: Specifications
Specifications EELS904A EELS905A EELS906A Model 7,000 lbs. 7,500 lbs. 6000 lbs. Capacity (3190kg) (3420kg) (2720kg) A: Minimum Arm Reach ” (900mm) ” (1450mm) B: Maximum Arm Reach ” ” ” C: Minimum Drive Over Height With Pad Arm (44.1mm) (38.6mm) (45.6mm) -
Page 6: Shipping Contents
Shipping Contents The jacking Beam is fully assembled and packaged to protect it from any damage that may occur during shipping. Included are the following components: Jacking Beam assembly, including: Jacking Beam Assembly Lifting Arms Roller Adapters Air/Hydraulic Pump ... -
Page 7: Positioning Of Jacking Beam On Lift
Positioning of Jacking Beam on Lift Note: The Jack Beam must be positioned on the lift correctly prior to usage. 1. Place Jack Beams on runway tracks at front and rear of lift with the pump of each facing to the front and rear. a. - Page 8 3. To prevent oil leaks during shipment, a metal air bleed knob is installed and tightened to ensure a good seal. Loosen it by turning counterclockwise before use. 4. Prior to placing vehicle on lift, raise and lower the Jack Beam multiple times and check for air and hydraulic leaks.
-
Page 9: Raising The Jack Beam
Raising the Jack Beam 1. Prior to placing vehicle on lift, check the operation of the Jack Beam. 2. Press the "PUMP" end on the air/hydraulic pump and hold until jacking Beam is at full working height. 3. As lift travels up: ... -
Page 10: Lowering The Jack Beam
Lowering the Jack Beam 1. To lower the Jack Beam, first raise the Jack Beam up off the mechanical safety lock. 2. Disengage the safety lock by lifting and holding the Safety Release Handle. 3. Press the “RELEASE" handle down on the pump to release pressure allowing the jacking Beam to lower to its full down position. - Page 11 Lowered standard and/or custom vehicle heights may affect drive over and use of jack or loading of vehicle on lift. Failure to follow the cautionary steps as outlined above may result in property damages. 1. The vehicle must be positioned correctly on the lift prior to raising the vehicle with the Jack Beam.
- Page 12 Recommended Maintenance Daily: 1. Inspect that the Jack Beam is in proper working condition. 2. Make certain that the automatic engaging safety drops into place when the Jack Beam is raised and that it will release when held in the up position during lowering.
-
Page 13: Trouble Shooting
Trouble Shooting Trouble Cause Remedy Pump runs but lift will Lift loaded beyond capacity. Do not exceed capacity of lift list on tag. not rise after contacting load. Fluid leak at pump, hose or Repair leak, refill reservoir. cylinder Pump malfunction. Contact customer service to have pump serviced. -
Page 14: Jack Beam Assembly: Total Exploded View
10.0 Jack Beam Assembly: Total Exploded View 14 of 22 DECEMBER 2022 REV. D EAZ0080V72A... -
Page 15: Jack Beam Assembly: Parts List
ADAPTER ASSEMBLY (USED ON EELS906A 6K on 12K 4 POST) EAA0385V01A ADAPTER ASSEMBLY (USED ON EELS905A 7.5K on 15K 4 POST) EAA0526V06A ADAPTER ASSEMBLY (USED ON EELS904A 7K on 14K Scissor) EAA0526V07A BLACK YELLOW HAZARD WARNING TAPE EAL0500V03A HEX BOLT GB/T 5781-2000 M8X30... -
Page 16: Jack Beam Assembly: Arm Exploded View
12.0 Jack Beam Assembly: Arm Exploded View 13.0 Jack Beam Assembly: Arm Part List ITEM QTY. DESCRIPTION PART # TOP FRAME WELDMENT EAS2242V10A PLATED STACK PAD EAS2242V14A JACK BEAM ARM WELDMENT EAS2242V12A RUBBER BLACKET A1104-H STACKABLE INTERLOCKING RUBBER PAD (OPTIONAL) 6-4025 6-4025 16 of 22... -
Page 17: Jack Beam Assembly: Scissor Exploded View
14.0 Jack Beam Assembly: Scissor Exploded View 15.0 Jack Beam Assembly: Scissor Part List ITEM QTY. DESCRIPTION PART # SHIM – CENTER PIN EAM0194V65A PIN – SCISSOR CENTER EAM0194V30A NYLON SLIDE BLOCK EAM0194V31A SCISSOR OUTER - WELDMENT EAS2242V08A SCISSOR INNER - WELDMENT EAS2242V09A 17 of 22 DECEMBER 2022 REV. -
Page 18: Jack Beam Assembly: Adapter Exploded View
16.0 7K Jack Beam Assembly: Adapter Exploded View 17.0 7K Jack Beam Assembly: Adapter Part List ITEM QTY. DESCRIPTION PART # ADAPTER WELDMENT EAS2242V21A ROLLER ASSEMBLY EAS2242V17A SHOULDER SCREW M12 EAM0194V54A SLIDING STEM EAM0194V55A SPRING 45 EAM0194V59A WASHER EAM0194V58A ROLLER AND SPRING ASSEMBLY (INCLUDING ITEMS 2, 3, 4, 5 AND 6) EAK0338V02A 18 of 22 DECEMBER 2022 REV. -
Page 19: 7.5K Jack Beam Assembly: Adapter Exploded View
18.0 6K & 7.5K Jack Beam Assembly: Adapter Exploded View 19.0 6K & 7.5K Jack Beam Assembly: Adapter Part List ITEM QTY. DESCRIPTION PART # ADAPTER WELDMENT (USED ON EELS905A 7.5K on 15K 4 POST) EAS2242V15A ADAPTER WELDMENT (USED ON EELS906A 6K on 12K 4 POST) EAS2136V24A ROLLER ASSEMBLY EAS2242V17A... -
Page 20: Maintenance Schedule
20.0 Maintenance Schedule Records of all lift maintenance and operator training should be recorded in the following table. Maintenance and Training Date Notes Performed 20 of 22 DECEMBER 2022 REV. D EAZ0080V72A... - Page 21 Maintenance and Training Date Notes Performed * Make copies of this form as required. 21 of 22 DECEMBER 2022 REV. D EAZ0080V72A...
- Page 22 Add arm, scissor and adapter exploded view and part list on page 16, 17, 18 and 19. Change specifications of width between runways for EELS904A from 38” to 40” on page 5. Change maximum operating pressure at rated load mistake to on page 5.
