BIG NBK-TL Operation Manual

BIG NBK-TL Operation Manual

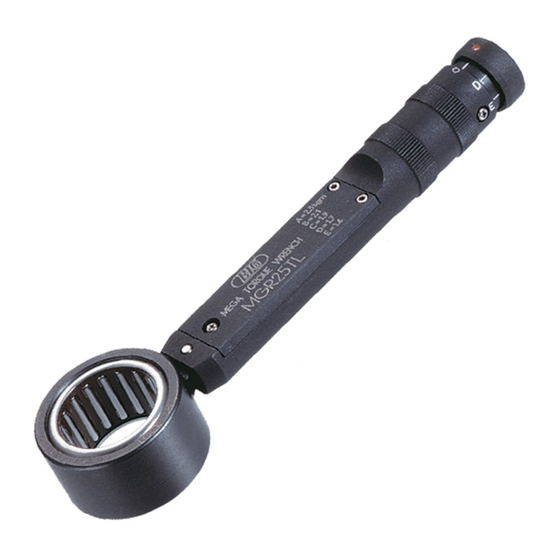

Torque wrench

Advertisement

この度は、  トルクレンチをお買い求めいただき誠にありがと
うございます。ご使用前にあたっては必ず本書をお読みいただ
き、ご使用される方がいつでも見ることができる場所に必ず保管
してくださいますようお願いいたします。
トルクレンチ仕様    SPECIFICATION
名 称
Configuration
ニューベビーチャック用
For NEW BABY CHUCK
NBK-TL
NBK-TLS
メガチャック用
For MEGA CHUCK
MGR-TL
MGR-TLS
使用方法    HOW TO USE
ニューベビーチャック用/NBK-TL型 For NEW BABY CHUCK
Tighten the clamping nut until the wrench clicks.
ご注意
1.NBK-TL型の引っ掛けスパナをナットに装着する際は、 ス
 パナの爪がナットの溝に確実に引っ掛かっていることを
 確認してください。
1.When setting the NBK-TL Type wrench to the nut,  
 assure the claw is caught in the groove of the nut.
トルクレンチ
取扱説明書

SPECIFICATION

型 式
適合本体
Model
Body
NBK  6TL(S)
NBS  6
    8TL(S)
          10TL
        13TL
16TL
20TL
MGR10TL
MEGA  3S
12TL(S)
           4S
14TL(S)
           6S
18TL
           8S
20TL(S)
           6N
           8N
25TL(S)
           6E
         10N
30TL
           8E
         13N
35TL
         10E
         16N
42TL
         13E
         20N
46TL
締め付けナットを回
して「カチッ」と音
がしたら締め付け完
了です。
東 部 支 店
仙 台 営 業 所
北関東営業所
南関東営業所
長 野 営 業 所
TORQUE WRENCH
OPERATION MANUAL
Thank you for purchasing the         TORQUE WRENCH.
Please read these instructions before use and keep them where
the operator may refer to them whenever neccessary.
メガチャック用/MGR-TL型
《締め付け方》Clamping
8
10
L O C K
13
Slide the wrench over the nut to leave the face marked
16
LOCK nearer the cutting tool. Tighten by rotating the wrench
in the direction of the arrow until it clicks.
20
《ゆるめ方》Unclamping
Slide the TORQUE WRENCH over the Nut with the face marked
"OPEN" towards the cutting tool. Release by rotating the
TORQUE WRENCH in the direction of the arrow(anti-clockwise).
●レンチをナットに装着する際、矢印の逆方向に回しながら装着
 するとスムーズに入ります。
To ease the application of the wrench to the chuck it is
 suggested to rotate in the reverse direction while sliding
 into position.
1.締め付け、緩め作業を行う前は、必ずナット外径をウエ
 スなどできれいに拭き取り、ナットとレンチの「すべり」
 を防いでください。
2.レンチをナットに装着する際は、
 向きを確認し、 刃具にレンチや指、 手があたらないように
 して、レンチが止まる所まで確実に装着してください。
 また、装着後レンチを回す際は、レンチがナットに喰い
 付いた事を確認の上、徐々に力を加えてください。
3.一方クラッチ部へのグリース注入は、クラッチの作動を
 阻害しますので行わないでください。
1.Before clamping or unclamping clean the outer   
 diameter of the nut with a cloth or similar to    
prevent slippimg.
2.When applying the WRENCH to the nut, ensure
 it is correct way around and fully engaged. Be   
 careful not to touch the cutting tool with WRENCH
 or your hand / fingers. Then rotate the WRENCH
 carefully to ensure it is fully engaged.
3.NEVER grease the one-way clutch. This could result
 in incorrect operation.
TEL048 ( 252 ) 1323
中 部 支 店
TEL022 ( 382 ) 0222
静 岡 営 業 所
TEL0276 ( 30 ) 5511
北 陸 営 業 所
TEL046 ( 204 ) 0055
西 部 支 店
TEL0263 ( 40 ) 1818
岡 山 営 業 所
For MEGA CHUCK
O P E N
ご注意
CAUTION
「LOCK」「OPEN」 面の
TEL052 ( 871 ) 8601
広 島 営 業 所
TEL054 ( 654 ) 7001
九 州 営 業 所
TEL076 ( 292 ) 1002
海外営業本部
TEL06 (6 747 ) 7558
TEL086 ( 245 ) 2981
ヘッ ド部の「LOCK」
面を上にしてナット
に装着し、 矢印の方向
に 回 して 「 カチッ」 と
音がしたら締め付け
完了です。
ヘッ ド部の「OPEN 」
面を上にしてナット
に装着し、 矢印の方向
に回してゆるめます。
TEL082 ( 420 ) 6333
TEL092 ( 451 ) 1833
TEL072 ( 982 ) 8277
No.0914

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NBK-TL and is the answer not in the manual?

Questions and answers

Summary of Contents for BIG NBK-TL

  • Page 1  確認してください。  carefully to ensure it is fully engaged. 3.NEVER grease the one-way clutch. This could result 1.When setting the NBK-TL Type wrench to the nut,    in incorrect operation.  assure the claw is caught in the groove of the nut.
  • Page 2 トルクの調整    TORQUE ADJUSTMENT    目盛りCの位置で、各レンチの適合本体にとって最 グリ ッ プ部 1. At position C the appropriate torque is 調整用マーク A=MAX. 適なトルク設定となるように調整されています。 GRIP provided. On delivery your wrench will be MARK FOR ADJUSTMENT adjusted to this position. 通常トルク調整は必要ありませんが、刃具径 または加工径に応じてトルク調整が必要な場 2. In normal use, torque adjustment is not 合は下記の表を参考の上、トルク調整キャッ...
