TMG -HPC40 Product Manual

TMG -HPC40 Product Manual

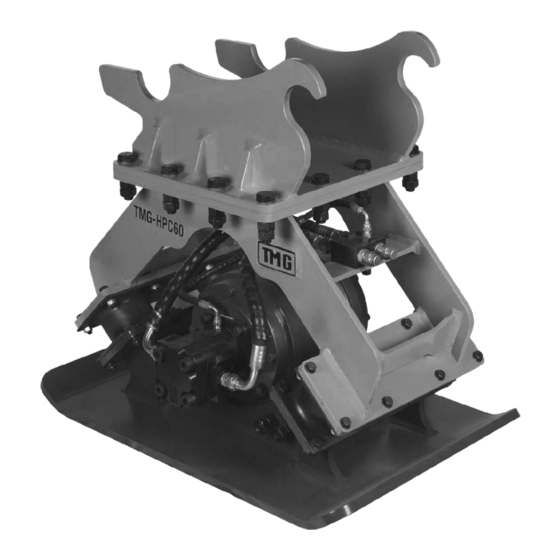

Excavator hydraulic plate compactor

Advertisement

Quick Links

Excavator Hydraulic Plate Compactor
WWW.TMGINDUSTRIAL.COM
Please read the product manual completely before assembly
Check against the parts list to make sure all parts are received
Wear proper safety goggles or other protective gears while in assembly
Missing parts or questions on assembly?
Please call: 1-877-761-2819 or email: cs@tmgindustrial.com
Do not return the product to dealer, they are not equipped to handle your
requests
PRODUCT MANUAL
MODEL:TMG-HPC40
TMG-HPC60
TMG-HPC80
Toll Free:1-877-761-2819

Advertisement

loading
Need help?

Need help?

Do you have a question about the TMG-HPC40 and is the answer not in the manual?

Questions and answers

Summary of Contents for TMG TMG-HPC40

  • Page 1 PRODUCT MANUAL Excavator Hydraulic Plate Compactor MODEL:TMG-HPC40 TMG-HPC60 TMG-HPC80 Please read the product manual completely before assembly Check against the parts list to make sure all parts are received Wear proper safety goggles or other protective gears while in assembly Missing parts or questions on assembly? Please call: 1-877-761-2819 or email: cs@tmgindustrial.com...
  • Page 2 ATTENTION * Please read this manual carefully before installing, operating or servicing the plate compactor. * Please read and follow this manual in order to better protect the user's safety. * To avoid unnecessary damage or loss, please always follow the relevant laws, regulations and safety practices.
  • Page 3: Table Of Contents

    Contents CHAPTER 1 PREFACE................4 CHAPTER 2 APPLICATION...............5 CHAPTER 3 DESCRIPTION..............6 CHAPTER 4 GENERAL DESCRIPTION............7 CHAPTER 5 INSTALLATION..............9 CHAPTER 6 OPERATION................10 CHAPTER 7 MAINTENANCE..............12 CHAPTER 8 PARTS LIST.................13 WWW.TMGINDUSTRIAL.COM P03/18 Toll Free:1-877-761-2819...
  • Page 4: Chapter 1 Preface

    Chapter 1 Preface * This manual contains information on safety, operation, lubrication and maintenance. * The manual is a reference document for the new operator and a training document for experienced personnel. * If you have any questions about hydraulic compactor, consult your agent or factory. WARNING * Please do not use hydraulic compactor for other unrelated works * If you do not operate properly, you can cause serious accidents and even cause...
  • Page 5: Chapter 2 Application

    Chapter 2 Application 1) Slope road construction 2) Building foundation 3) Soil & Gravel 4) Bottom soil for the Pipeline construction 5) Drainage pipes and rock base 6) Test pile work 7) Slope shore embankment 8) Others WWW.TMGINDUSTRIAL.COM P05/18 Toll Free:1-877-761-2819...
  • Page 6: Chapter 3 Description

    Chapter 3 Description Category Unit TMG-HPC40 TMG-HPC60 TMG-HPC80 Power of Impulse Vibration Frequency 2000 2000 2200 Oil Flow 12-20 23-28 32-53 Operating Pressure 1450-1850 1450-2130 2130-2850 Bottom Measurement 900*550 1100*700 1300*900 Weight 1084 Carrier Weight 10-16 17-25 * The oil return line must be connected to the low pressure oil return tank and the oil return pressure is less than 100 PSI WWW.TMGINDUSTRIAL.COM...
  • Page 7: Chapter 4 General Description

    Chapter 4 General Description 1. The use of the compactor The special design of the compactor can be applied to all kinds of quarry and construction sites. 2. Product Number The product number on the compactor bracket is particularly important for product maintenance and replacement of parts.
  • Page 8 8. Machine usage status Please operate the machine appropriately. Exceeding the limit will damage the machine and cause a dangerous accident. Please do not arbitrarily transform the compactor. The wrong transformation is likely to cause dangerous accidents. Do not operate the machine when it missed parts.
  • Page 9: Chapter 5 Installation

    Chapter 5 Installation 1) Connection The next procedure is to connect the two tubes on the compactor to the excavator arm. Import and export size Product Model Import Size Export Size TMG-HPC40 1/2” NPT 1/2” NPT TMG-HPC60 3/4” NPT 3/4” NPT TMG-HPC80 1”...
  • Page 10: Chapter 6 Operation

    Chapter 6 Operation 1) Make sure that all piping is properly installed and that all oil return lines are not squeezed 2) When operating, please use the different sizes of the force, the first use of a slight ramming force, followed by the use of slightly larger ramming force, repeated alternately, please do not over-ramming.
  • Page 11 7. Operating Environment: Observe the work site carefully before operating, strictly abide by the construction safety rules to prevent the occurrence of security incidents; ※ It is strictly forbidden to operate the machine after drinking or taking doping drugs; ※ Preheating before the operation; ※...
  • Page 12: Chapter 7 Maintenance

    *Note: When replacing the bearings, please use the original parts, because these are specially selected spare parts. 4) Lubricant The bearing oil must be maintained at a moderate amount, the following is the amount of fuel for the compactor: Model Oil Amount TMG-HPC40 1.5L TMG-HPC60 2.4L TMG-HPC80 4.9L WWW.TMGINDUSTRIAL.COM...
  • Page 13: Chapter 8 Parts List

    Chapter 8 EXPLODED DRAWINGS and PATTS LIST 1)TMG-HPC40 EXPLODED DRAWINGS WWW.TMGINDUSTRIAL.COM P13/18 Toll Free:1-877-761-2819...
  • Page 14 TMG-HPC40 PARTS LIST Parts Name Quantity TMG-HPC40-01 Hydraulic Motor TMG-HPC40-02 Motor Bolt TMG-HPC40-03 Spring Washer TMG-HPC40-04 Nipple TMG-HPC40-05 Hose TMG-HPC40-06 Body Cover Bolt TMG-HPC40-07 O-Ring TMG-HPC40-08 O-Ring TMG-HPC40-09 Body Cover(A) TMG-HPC40-10 Bearing TMG-HPC40-11 Socket Plug TMG-HPC40-12 Cam Shaft Ass’y TMG-HPC40-13...
  • Page 15 2)TMG-HPC60 EXPLODED DRAWINGS WWW.TMGINDUSTRIAL.COM P15/18 Toll Free:1-877-761-2819...
  • Page 16 TMG-HPC60 PARTS LIST Parts Name Quantity TMG-HPC60-01 Hydraulic Motor TMG-HPC60-02 Motor Bolt TMG-HPC60-03 Spring Washer TMG-HPC60-04 Nipple TMG-HPC60-05 Hose TMG-HPC60-06 Body Cover Bolt TMG-HPC60-07 O-Ring TMG-HPC60-08 O-Ring TMG-HPC60-09 Body Cover(A) TMG-HPC60-10 Bearing TMG-HPC60-11 Socket Plug TMG-HPC60-12 Cam Shaft Ass’y TMG-HPC60-13...
  • Page 17 3)HPC80 EXPLODED DRAWINGS WWW.TMGINDUSTRIAL.COM P17/18 Toll Free:1-877-761-2819...
  • Page 18 TMG-HPC80 PARTS LIST Parts Name Quantity TMG-HPC80-01 Hydraulic Motor TMG-HPC80-02 Motor Bolt TMG-HPC80-03 Spring Washer TMG-HPC80-04 Nipple TMG-HPC80-05 Hose TMG-HPC80-06 Body Cover Bolt TMG-HPC80-07 O-Ring TMG-HPC80-08 O-Ring TMG-HPC80-09 Body Cover(A) TMG-HPC80-10 Bearing TMG-HPC80-11 Socket Plug TMG-HPC80-12 Cam Shaft Ass’y TMG-HPC80-13...

This manual is also suitable for:

Tmg-hpc60Tmg-hpc80
