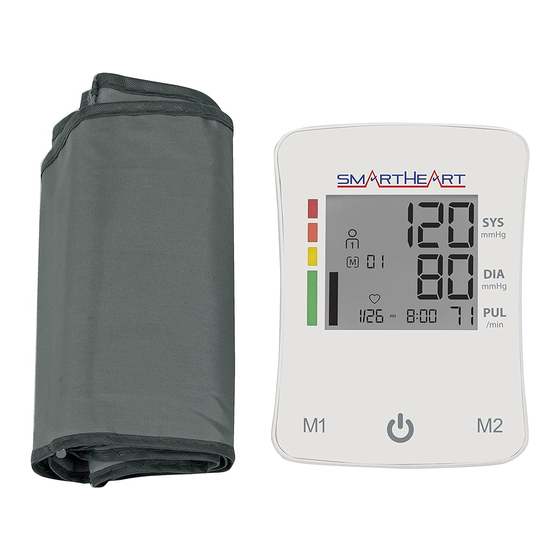

smartheart 01-563 Quick Start Manual

Automatic Digital
Arm Blood Pressure Monitor
Model # 01-563
THIS QUICK START GUIDE IS INTENDED
AS A SUPPLEMENT TO THE INSTRUCTION
MANUAL. PLEASE READ THE COMPLETE
MANUAL PRIOR TO FIRST USE.
Before applying your blood pressure cuff, be sure you
have selected the appropriate size cuff:
Wide-Range Adult Cuff fits arm circumference:
8.6"—16.5" (22—42 cm).
Additional cuffs are available for order on the included
order form or by calling 866-326-1313.
A 15 minute resting period is needed to stabilize the
body prior to taking a reading. No eating, drinking or
smoking while resting.
Applying the Arm Cuff
Remove any constrictive clothing or
jewelry that may interfere with cuff
placement. Wrap the cuff snugly
around your left arm. Position the
cuff's bottom edge half an inch
ABOVE the elbow joint. Position the
air tubing over the main artery (on
the inside of your arm). You should
be able to insert one finger between
your arm and cuff.
IF YOU HAVE ANY QUESTIONS OR ARE EXPERIENCING DIFFICULTIES, PLEASE CALL THE TOLL-FREE
CUSTOMER SERVICE HELP LINE FOR FURTHER ASSISTANCE AT 1-866-326-1313.
Taking Your Measurement
Please read the preceding portions of this manual prior to
taking your first reading.
Reminder, it is important to avoid smoking, eating, taking
medication, alcohol consumption or physical activity 30
minutes prior to taking a reading.
1. Position the monitor on
a flat, stable surface
with the digital display
in view. After applying
the cuff insert the cuff
tubing connector into
the port on the left side
of your monitor. Rest
your elbow on a solid
surface with your palm
facing upward. Elevate
your arm so that the cuff is at the same level as your
heart, Fig 1. Relax your left
hand.
2. Press and release the POWER
button to turn the unit on; the
unit will briefly flash a self-test,
Fig 2.
3. The measurement results will
default to the memory bank in
use. To select a memory bank,
while the results show on the display, press M1 or
M2 to store the results.
4. The cuff will automatically inflate; you will see the
numbers increase on the display screen and feel the
cuff inflate.
5. When the measurement
is complete, the cuff will
automatically deflate, then your
blood pressure measurement
~0.5/1-2cm
and pulse reading results will
show on the display screen at
the same time, Fig 3.
6. Consult the included Instruction Manual for
information on interpreting your reading results.
7. The reading will automatically be stored in memory,
up to 60 readings per user bank.
Select POWER to turn the unit off and conserve
8.
energy and battery life. The unit will automatically
shut-off approximately 1 minute after use.
Please Note:
• You can stop the inflation or deflation process of the
cuff at any time by pressing the POWER button.
• Many factors such as genetics, age, sex, altitude,
physical activity, anxiety, muscular development,
certain medications or even the time of day can
influence blood pressure.
• Blood pressure varies from moment to moment; even
Fig. 1
readings taken after proper rest periods can vary.
Home blood pressure readings may vary as much as
10-20 points from ones taken at your doctor's office.
• Variations in your individual readings should only be
interpreted by your physician or trained health care
professional.
• We encourage you to consult with your physician
to achieve the maximum benefit from your blood
pressure monitor.
Fig. 2
Fig. 3
#93-2186 10/2022
©2022 Veridian Healthcare
