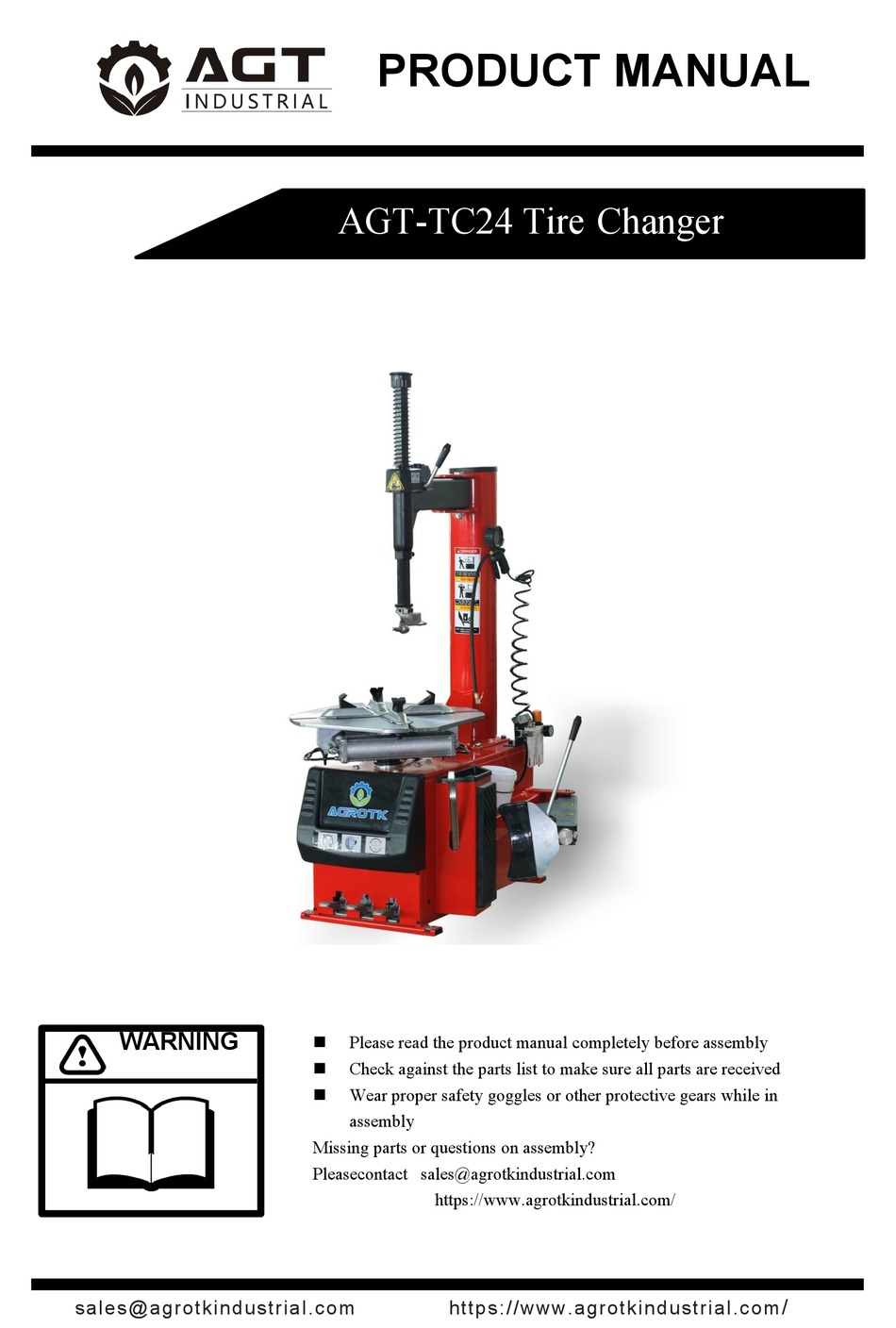

PRODUCT MANUAL
AGT-TC24 Tire Changer
Please read the product manual completely before assembly
Check against the parts list to make sure all parts are received
Wear proper safety goggles or other protective gears while in
assembly
Missing parts or questions on assembly?
Pleasecontact sales@agrotkindustrial.com
https://www.agrotkindustrial.com/
https://www.agrotkindustrial.com
/
Advertisement
Table of Contents
Summary of Contents for AGT INDUSTRIAL AGT-TC24
- Page 1 PRODUCT MANUAL AGT-TC24 Tire Changer WARNING Please read the product manual completely before assembly Check against the parts list to make sure all parts are received Wear proper safety goggles or other protective gears while in assembly Missing parts or questions on assembly? Pleasecontact sales@agrotkindustrial.com...
-
Page 2: Table Of Contents
catalogue catalogue 1 ．equipment description.............................. 3 2．executive summary ..............................5 2．1 uesr’s manual..............................5 2．2 safety orperation rules ..........................5 3．transport ...................................5 4．unpacking ................................6 5．Installation instruction ............................6 5．1 location requirements ...........................6 5．2 installation of components ...........................7 5．3 test run ................................. 9 6．operation ................................ - Page 3 Semi-automatic tire changer manual Preface ： Thank you for buying our semi- automatic tyre changer. It is the best quality . In order to proper operation and extended the lifetime, pls read the instruction for each operation section carefully. This manual is an indispensable part for machine operation before using the machine, you should read each part of the manual carefully, The operation safety and maintenance parts are necessity.
-
Page 4: Equipment Description

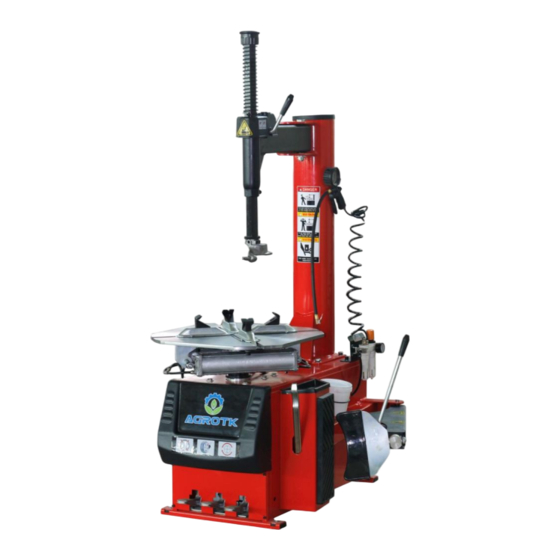

Semi-automatic tire changer manual Description of equipment Three pedals pedal control bead breaker clamp jaw column pedal control turntable working head air connection head Z、Z1) pedal control clamp inflation inlet bead breaker turntable operation arm rubber pad locking handle horizontal swing arm crowbar... - Page 5 Semi-automatic tire changer manual Danger warning sign...
-
Page 6: 2．Executive Summary
Semi-automatic tire changer manual Executive summary The semi-automatic tyre changer is designed to facilitate to mount and demount the tires which the ● rim sizes is from 9"to 25" and the maximum diameter of 1,070 mm. Operation against instruction is prohibited. The manufacturer shall not be liable for damage resulting from non-compliance with the instructions. -
Page 7: 4．Unpacking
Semi-automatic tire changer manual unpacking Open protective boxes and plastic bags. ● ● Refer to figure 1 to check whether the machine surface is intact and the parts are missing and damaging. ● If any problem is found, please do not use the machine and contact the supplier immediately. Installation instruction The installation position of the machine must meet the standard of safe working. -
Page 8: 5．2 Installation Of Components
Semi-automatic tire changer manual Unscrew the fixed screws on the packing wooden pallet and place the semi-automatic tyre changer ● on the ground. As shown in figure 5/a, unscrew 4 screws from the box body and install the vertical column at the ●... - Page 9 Semi-automatic tire changer manual Pic.5/a Pic.5/b Pic.5/c Pic.5/d Pic.5/f Pic.5/e Pic.5/g Pic.5...
-
Page 10: 5．3 Test Run
Semi-automatic tire changer manual Before the machine is turned on, make sure the user' s voltage and air pressure are consistent with the machine's requirements. When the operating voltage of the machine needs to be changed, the terminal board can be adjusted ●... - Page 11 Semi-automatic tire changer manual Adjust the jaw position of turntable The clamps of tyre changer have been adjusted to the central position before left ● factory. the clamp rim from outside size is from 10 "to 20"， the clamp rim from inside size is from 13 "to 24". If you want to demount the larger or smaller rim, you can adjust the position of the four ●...
-
Page 12: 6．Operation
Semi-automatic tire changer manual Operation Please read the instruction manual carefully and note before use. The operation of semi-automatic tyre changer is divided into the following three parts: Breaking the bead/demount tire/mount tire. Discharge all air from the tire and remove the balance lead from the tire. Mattersneedattention: ●... -
Page 13: 6．2 Tire Dismantling
Semi-automatic tire changer manual Pic. 7 Pic. 8 Before any operation, check to see if the tire is out of air. And ensure that the balance lead has been removed from the rim. Apply special lubrication to the rim. Failure to apply lubricant may result in wheel rim damage. Do not put your hand under the tire when you lock the rim. - Page 14 Semi-automatic tire changer manual Don’t put your hands on the wheel: if you put your hands between rim and mounting head, it may getting hurt when column return to its original position. Lower the operating arm (M)，until the dismounting head is supported on the rim edge ●...
-
Page 15: 6．3 Tire Fixing
Semi-automatic tire changer manual Pic.9 Pic.10 Note: in order to prevent tire bursting during inflation, it is very important to check the tires and rims. Before assembling the tires, it is necessary to pay attention to: ● check the tires, and do not install them if there is any damage. ●... - Page 16 Semi-automatic tire changer manual Do not put your hand between the wheel rim and the fixture in the process of operating the fixture, so as not to hurt your hand. Note: when operating the same size rim, it is not necessary to repeatedly open or close the operating arm (M), just move the set horizontal swing arm (N) to the side.
-
Page 17: 7．Inflation
Semi-automatic tire changer manual Inflation You have to inflate the tire carefully, following below instructions strictly. Pls. note there is no protection device on designing of semi- automatic tire changer for the safety of the operator on the machine or surrounded machine if the tire explode suddenly. -
Page 18: 8．Relocate
Semi-automatic tire changer manual Danger of burst Never to exceed the pressure indicated by the manufacturer 3.5bar ● Remove the tire from the turntable, if you need more inflating ● pressure, place the tire in special protection cage to continue the inflation operation Never to exceed the maximum inflation pressure ●... -
Page 19: 11．2 Repairt And Maintenance
Semi-automatic tire changer manual Untrained people is not allowed to carry out maintenance work. Regular maintenance as described in the instructions for correct operation and long ● lifetime of the tire changer. If maintenance is not carried out regularly, the operation and reliability of the machine ●... - Page 20 Semi-automatic tire changer manual Disconnect power supply before operation。 Remove the left side body panel of tire changer, unscrewing the four fixing screws 。 ● Tighten the drive belt by means of the special adjusting screw X on the motor support。 ●...
-
Page 21: 12．Trouble Shooting-Causes And Solutions
Semi-automatic tire changer manual trouble shooting troubleshooting trouble cause Turntable rotates only in one direction universal switch is damaged universal switch 1 、 Belt is damage 1 、replace the belt Turntable doesn`t rotate 2 、 universal switch is damage 2 、replace the universal switch 3 、motor trouble 3 、replace motor Adjust belt tension... -
Page 22: 14．Circuit Diagram And Pneumatic System Diagram
Semi-automatic tire changer manual black sensor inverter user equipment plug socket and blue red white black red white inverter switch Circuit diagram and pneumatic system diagram speed Circuit diagram User equipment speed2 selector plug socket and inverter switch speed2 selector blue blue B direction... -
Page 23: 14．2 Pneumatic System Diagram
Semi-automatic tire changer manual pneumatic system diagram Oil and water separator Tire pressure control valve Operating arm locking cylinder 1/8” silencer Control valve turntable Ball valve Inflatable gun Manual control valve 1/4” quick exhaust valve 1/4” silencer Cylinder bead breaker Cylinder turntable Rotation valve...
