Summary of Contents for AUTODA TDA-03

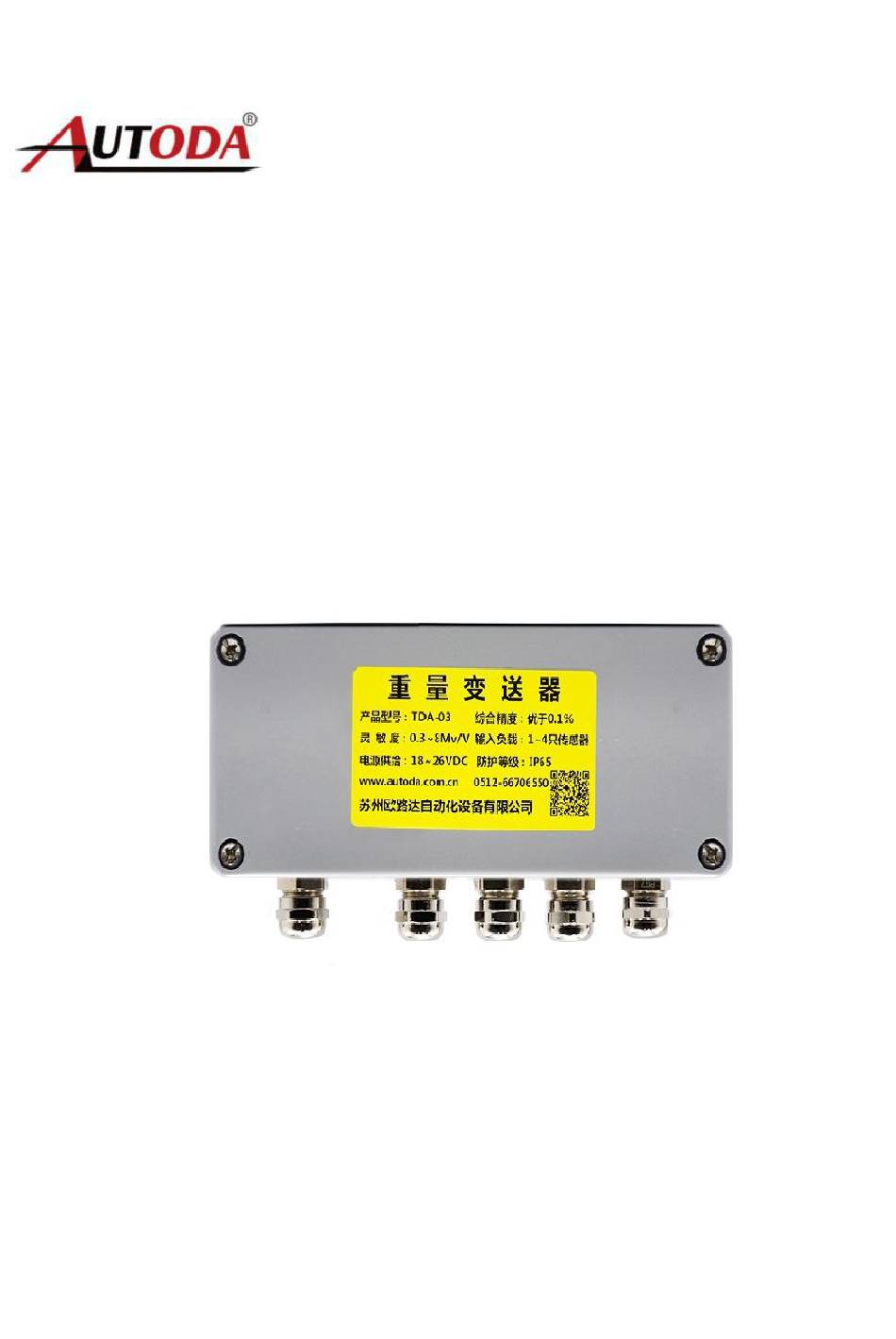

- Page 1 Weigh transmitter TDA-03 Suzhou Autoda Automation Equipment Co., Ltd.
- Page 2 Feature: Using special waterproof joint, Compensation adjustment uses high stability multi-turn potentiometer The cover has waterproof rubber gasket, waterproof and dustproof, suitable for industrial spots with harsh environmental conditions Prevent damage to the sensor caused by induced lightning and surge signals ...
- Page 3 Parameter： （mm) Wiring...
- Page 4 Zero point adjustment: (Enter calibration after 10 minutes warm up after power on) Press and hold the "K1" key for more than 3 seconds. LED1 blinks 3 times from the original state and turns off, indicating that the zero calibration mode has been entered.
- Page 5 4. Press and hold the "K2" key, LED2 will flash continuously, the output voltage or current will continue to decrease, release the key to stop 5. Press "K1" and "K2" simultaneously (short press) to adjust and exit, and save the current adjustment Set the filter coefficient: Press and hold "K1"...
- Page 6 Suzhou AUTODA Automation equipment Co., Ltd. Add: Room 114, No. 25, Lushan Road, Huqiu District, Suzhou, China. Tel: 0086-512-68083646 Phone： +86 16605198827 Mail：AUTODA@szautoda.com, Katherine@szautoda.com Site：www.autoda.com.cn...
