RMC3116-670-HS

User Manual

Version 1.0

Need help?

Do you have a question about the RMC3116-670-HS and is the answer not in the manual?

Questions and answers

Summary of Contents for Gooxi RMC3116-670-HS

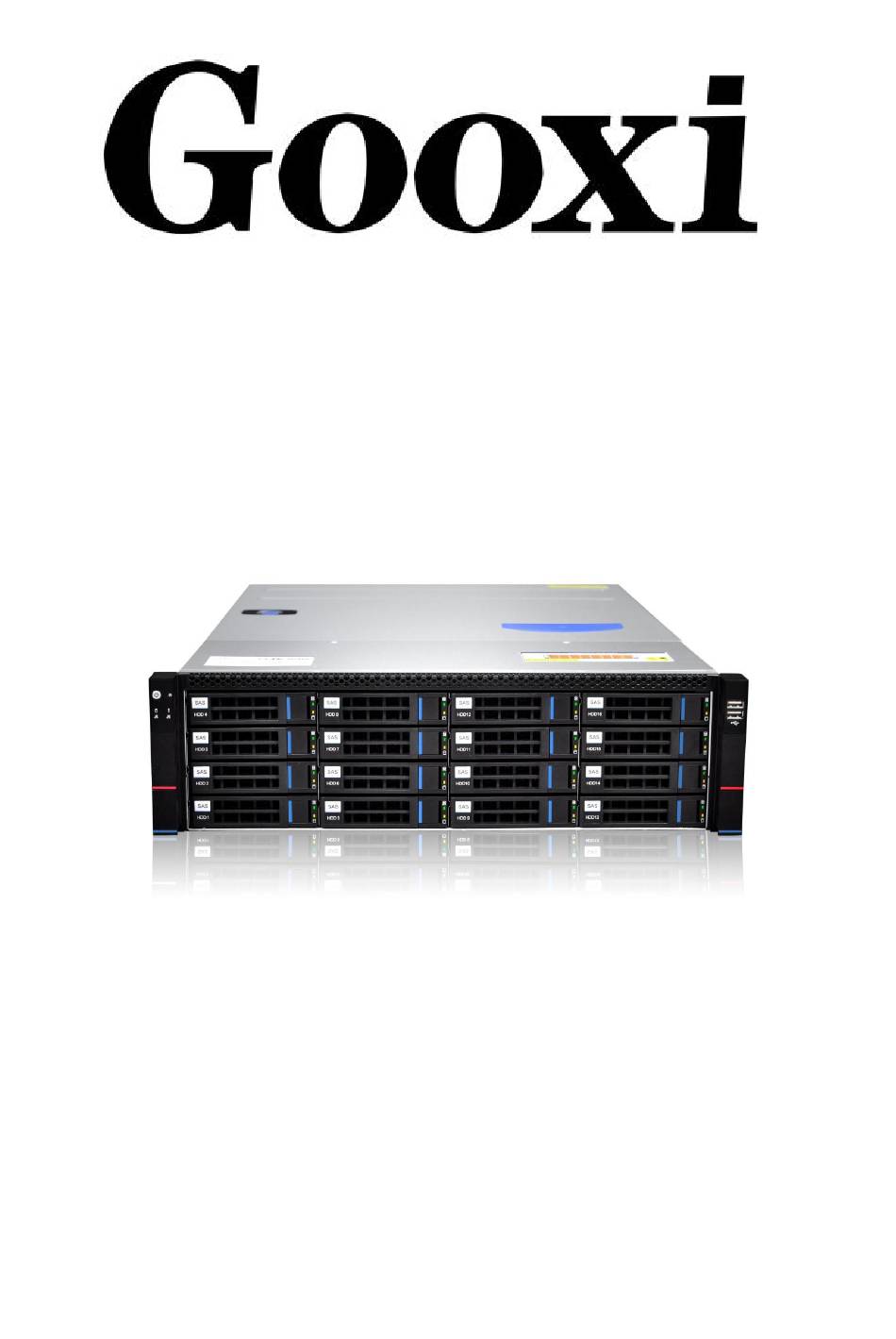

Page 1 RMC3116-670-HS User Manual Version 1.0...
Page 2 Content Manual Structure Foreword Chapter 1 Chassis Overview Chapter 2 Easy Installation Instruction Chapter 3 Chassis Parameters Shenzhen Gooxi Hengyu Technology Co., Ltd...
Page 3 Internet bar server, database server, VOD storage server, HPC server, and so on. The server chassis is different from ordinary desktop chassis that pays more attention to appearance design, as it focuses on the quality and content. Gooxi RMC3116-670-HS server chassis uses imported first-class SGCC galvanized steel,...
Page 4 Chapter 1 Chassis Overview Chassis Structure （1） Top cover （2） Rear window （3） Front cover （4） Fan （5） Hard disk module （6） Power supply （7） 3.5-inch hard disk box （8） Left-side ear （9） Right-side ear Shenzhen Gooxi Hengyu Technology Co., Ltd...
Page 5  16 pieces of #6-32*6mm cross recessed pan head screws are used for fastening the motherboard and power supply.  0～15 SAS - label.  One 100 * 120 * 0.045mm PE valve bag. 1.4 Chassis View Front view: Shenzhen Gooxi Hengyu Technology Co., Ltd...
Page 6 Rear view: 1.5 Related Indicators of Chassis Panel Shenzhen Gooxi Hengyu Technology Co., Ltd...
Page 7 IPMI management software Internet access 1 connection The green light is on ⑥ is normal Internet access 2 connection The green light is on ⑦ is normal USB interface 2*USB2.0 interface ⑧ Shenzhen Gooxi Hengyu Technology Co., Ltd...
Page 8 Hard disk Flash 4Hz/s location Hard disk fault RAID Flash 1Hz/s reconstruction 1.7 Brief Introduction to Backplane The standard configuration of Gooxi backplane model is RMC3116-BP-12G, and the specific description is as follows: Shenzhen Gooxi Hengyu Technology Co., Ltd...
Page 9 Interface / jumper / slot ding site slot site 4 ATX power input 9、10、11、12 SFF-8643 12Gb SAS input 1、2、3、4 interface 4 Sockets of 4PIN 5、6、7、8 temperature control fans 1.8 Introduction to the Output Interface of Backplane Hard Disk Shenzhen Gooxi Hengyu Technology Co., Ltd...
Page 10 Chapter 2 Easy Installation Instruction 2.1 Introduction to the Disassemble Steps of Gooxi 3116 Chassis Cover ⑴ Unscrew the top cover screws Shenzhen Gooxi Hengyu Technology Co., Ltd...
Page 11 ⑶ Push the back cover (4) Pull the back cover 2.2 Introduction to the Installation Steps of Gooxi3116 Chassis Fan Module ⑴ Install the hot-swappable fan modules into the chassis, respectively. (1) Finished completion effect of fan module. Shenzhen Gooxi Hengyu Technology Co., Ltd...
Page 12 (2) Finished completion effect of the last three fan modules. Shenzhen Gooxi Hengyu Technology Co., Ltd...
Page 13 ⑴ Press the button to pull out the hard disk from the hard disk site. (2)Install the 3.5-inch hard drive to the hard drive bracket according to screw holes, as shown in the figure below. Shenzhen Gooxi Hengyu Technology Co., Ltd...
Page 14 (3) The installed hard disk is shown in the following figure: (4) Insert hard disk to the chassis, and close the switch. As shown in the following figure. Shenzhen Gooxi Hengyu Technology Co., Ltd...
Page 15 (1) Place the power supply case to the chassis according to the hole site, as shown in the figure below. (2) Fix the power supply bracket, and screw on the screws at the position marked in the figure below. Shenzhen Gooxi Hengyu Technology Co., Ltd...
Page 16 (3)Insert the hot-swappable power modules PSU1 and PSU2, respectively (4)The final installation effect of power supply Shenzhen Gooxi Hengyu Technology Co., Ltd...
Page 17 2.5 Introduction to the Installation Steps of Motherboard on Gooxi 3116 Chassis (1) Open the chassis, and place insulation pad according to the correct orientation. Based on the hole of motherboard screw, motherboard active stud (8mm height) is installed at the corresponding position on the insulation pad. As shown in the figure below: Install Gooxi G1DE-4B dual circuit motherboard corresponding to the base hole site.
Page 18 As shown in the figure below: 2.6 Introduction to the Installation Steps of Built-in 2.5-inch Hard Drive on Gooxi3116 Chassis ⑴ Dismantle the front cover. (2)Install the 2.5-inch hard disk on the bracket. Shenzhen Gooxi Hengyu Technology Co., Ltd...
Page 19 (3) As shown below: Install two 2.5-inch modules on the inside of the chassis Shenzhen Gooxi Hengyu Technology Co., Ltd...
Page 20 2.7 Introduction to the Installation Steps of Rear Hot-swappable 2.5-inch Hard Drive on Gooxi3116 Chassis (1) Replace the rear window of CRPS power supply case, the rear window suite supports the installation of 2.5 modules. As shown below: Install the 2.5-inch module. Shenzhen Gooxi Hengyu Technology Co., Ltd...
Page 21 (2) Completed installation effect (3)Install two 2.5-inch hard disks on the hard disk box Shenzhen Gooxi Hengyu Technology Co., Ltd...
Page 22 (4)Insert two 2.5-inch hard drives into the rear hard disk module, respectively (5)The completed installation effect is as follows Shenzhen Gooxi Hengyu Technology Co., Ltd...
Page 23 Note: If customer selects two optional 2.5-inch hot-swappable hard drives, then Gooxi-type CRPS power must be equipped with. Chapter 3 Chassis Parameters Basic Parameters Chassis style Rack mount Chassis structure Applicable motherboard EEB(12*13)/CEB(12*10.5)/ATX(12*9.5)/Micro ATX Supported motherboard brands Gooxi、Intel、ASUS、SuperMicro、TYAN、MSI、GIGABYTE, etc. Power type Single charge and 1+1 redundant power Shenzhen Gooxi Hengyu Technology Co., Ltd...
Page 24 902*591*273mm(Depth * width * height） Overall gross weight 21KG Safety certification CE、FCC、RoHS Note: This manual is a general instruction of RMC3116-670-HS series. Specific parameters of each type please refer to the chassis detailed parameters. Shenzhen Gooxi Hengyu Technology Co., Ltd...
