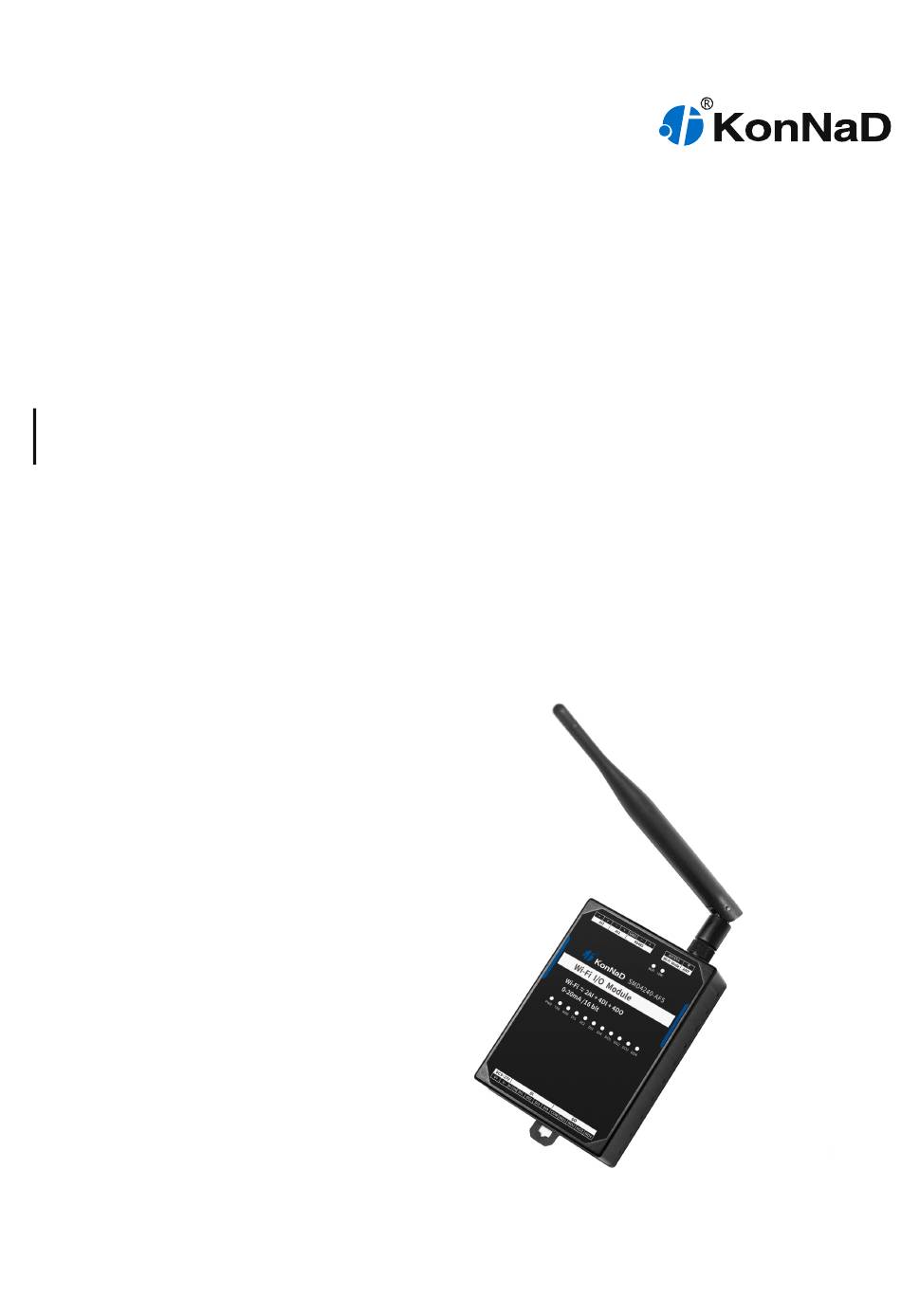

- Page 1 Last updated: 2020-11-26 C2000-A2-SMD4240-AF5 User Manual Wi-Fi ⇋ 2AI + 4DI + 4DO 0-20mA / 16bit Remote I/O Module — Wi-Fi I/O Module SinoCon Co., Ltd.
-
Page 2: Table Of Contents
C2000-A2-SMD4240-AF5 User Manual Catalog Catalog 1. Hardware Description 1.1. Specifications 1.2. Apprearance 1.3. Indicators 1.4. Port Description 1.5. Product Dimensions 1.6. Installation Method 2. Package Contents 3. Warranty Policy SinoCon Co., Ltd. www.sinoconsys.com 2 / 12... - Page 3 Copyright Notice ©2000 - 2020 SinoCon Co., Ltd. All Rights Reserved. Trademarks The KonNaD logo is a registered trademark of SinoCon Co., Ltd. All other trademarks or registered marks in this manual belong to their respective manufacturers. Disclaimer This document only provides information about KonNaD products. No license to any intellectual property rights is granted by this document, including any intellectual property licenses, expressed or implied, or by any means.
- Page 4 C2000-A2-SMD4240-AF5 User Manual SinoCon Co., Ltd. www.sinoconsys.com 4 / 12...
-
Page 5: Hardware Description
RS485 cascade connection Connection/Transparent Transmission Baud Rate 1200~115200bps Communication Distance 1200m Analog Input AI Channels Connector Terminal block Acquisition Range 0-20mA Acquisition Accuracy 1‰ Resolution 16 bit Acquisition Characteristics Differential input Acquisition Frequency 10Hz SinoCon Co., Ltd. www.sinoconsys.com 5 / 12... - Page 6 Other Support DNS ✓ Parameters Physical Dimensions 75*105*30mm+171*37mm Characteristics Installation Din-rail or wall Environmental Operating Temperature -40℃ ~ 85℃ Limits Storage Temperature -60℃ ~ 125℃ Ambient Relative Humidity 5% ~ 95% RH, non-condensing SinoCon Co., Ltd. www.sinoconsys.com 6 / 12...
-
Page 7: Apprearance
C2000-A2-SMD4240-AF5 User Manual 1.2. Apprearance SinoCon Co., Ltd. www.sinoconsys.com 7 / 12... -
Page 8: Indicators
Off：No power or abnormal power supply, please check if the voltage range is 9~27VDC Ethernet LINK TCP status ： indicator Wireless Wi-Fi Wi-Fi mode Steady on：AP mode Parameters indicator Slow flashing：STA connecting Fast flashing：STA connected SinoCon Co., Ltd. www.sinoconsys.com 8 / 12... -
Page 9: Port Description
RS485+, RS485-, GND（upstream） RVSP 2*0.5 Serial Port Wireless AP/STA Short press to switch AP/STA and long press to Parameters restore default settings Power Input V+、V- Power supply input positive, power supply input RVV 2*1.0 negative SinoCon Co., Ltd. www.sinoconsys.com 9 / 12... -
Page 10: Product Dimensions
C2000-A2-SMD4240-AF5 User Manual 1.5. Product Dimensions unit: mm（inch） 1.6. Installation Method SinoCon Co., Ltd. www.sinoconsys.com 10 / 12... - Page 11 C2000-A2-SMD4240-AF5 User Manual 2. Package Contents Contents Device (contain mounting kit) * 1 Terminal block * 1 set Installation guide card * 1 SinoCon Co., Ltd. www.sinoconsys.com 11 / 12...
-
Page 12: Warranty Policy
8. Our company's responsibility for the manufacture, sale and use of the products shall not exceed the original cost of the products. The company does not assume any joint responsibility. 9. The right to interpret this clause belongs to the company. SinoCon Co., Ltd. www.sinoconsys.com 12 / 12...
