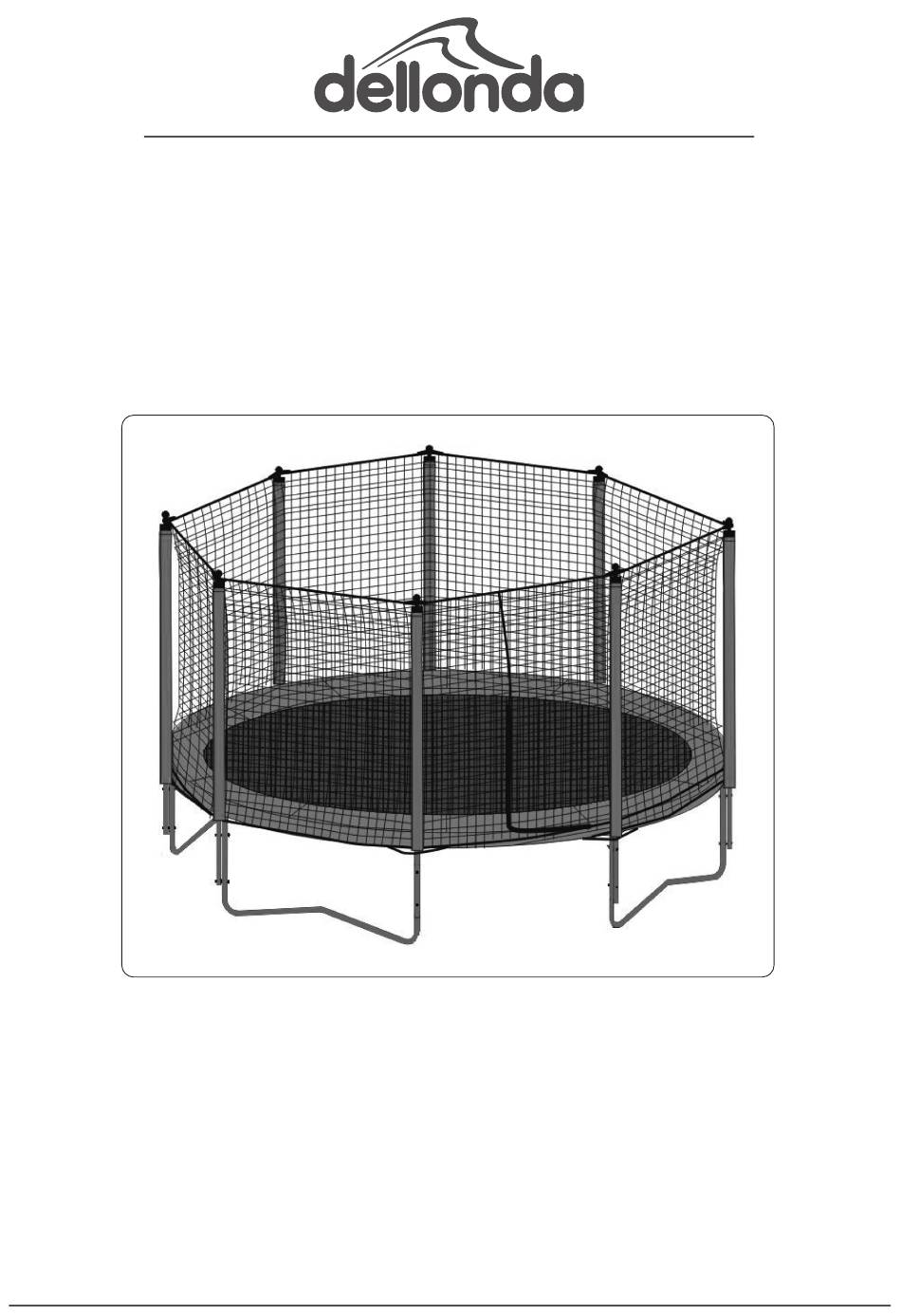

Dellonda 10ft Heavy Duty Outdoor
Trampoline for Kids with Safety
Enclosure Net
Model No. DL68
Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will,
if used according to these instructions, and properly maintained, give you years of trouble free performance.
DL68 Issue:1 19/07/21
www.dellonda.co.uk
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for dellonda DL68
Summary of Contents for dellonda DL68
- Page 1 Trampoline for Kids with Safety Enclosure Net Model No. DL68 Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will, if used according to these instructions, and properly maintained, give you years of trouble free performance. DL68 Issue:1 19/07/21...
-
Page 2: About The Product
Tested and approved to EN71. PVC and PE covered EPE foam surround to protect children from accidentally landing on the springs. High quality galvanised steel springs tested to last for a minimum of 1 million bounces! • SPECIFICATION • Model no: ............DL68 • Dimensions (ØxH): ......3050 x 680mm • Maximum user weight: ...... 100kg (220lbs) •... - Page 3 WEATHER CONDITIONS: Please be aware of the weather conditions when using the trampoline. If the mat of the trampoline is wet, the user could slip and injure himself/ herself. If it is too windy, the user could lose control. www.dellonda.co.uk...
- Page 4 • Swing arms forward and up above head in a circular motion. • Bring legs and feet together in mid-air position and point toes. • Land back on the mat with feet shoulder width apart (same as start position). • Only move onto the next skill once comfortable and proficient. www.dellonda.co.uk...
-
Page 5: Parts List
• When you are ready to start, make sure that you have plenty of space and a clean dry area for assembly. Parts list Ref Number Description Unit DL66 DL67 DL68 DL69 6” 8” 10” 12” Trampoline Mat, stitched with V-Rings... - Page 6 • Ensure you have plenty of space to begin assembly, layout the frame components as shown prior to starting assembly. • DL67 8ft and DL68 10ft Trampolines with 3 legs • Ensure you have plenty of space to begin assembly, layout the frame components as shown prior to starting assembly.
- Page 7 • Socket the vertical leg extenders (4) onto the base leg (5) as shown in the illustration, secure in place the screws provided. • Lift the frame and insert to assembled legs into the T sockets from the underside of the ring frame. (The legs will be bolted on when the safety net legs are added). www.dellonda.co.uk...
- Page 8 • Hook the open end of the spring into the next corresponding hole in the frame and release the spring tool carefully. www.dellonda.co.uk...
- Page 9 • Rotate the padding so the tie straps line up with the leg positions. Tie the padding around the frame and leg, this will help to stop the padding from moving. Safety net/Safety net assembly Parts list Ref Number Description Unit DL66 DL67 DL68 DL69 6” 8” 10” 12” Upper Pole A Upper Pole B Bar Spacers...
-
Page 10: Safety Net Assembly
Step 4: Line up the net poles with the holes in the leg extensions on the main frame as shown (Fig.4), pass the coach bolts through the leg, bar spacer, frame leg add the curved washer (Fig.5), tighten off with the capped nuts on the inside of the leg assembly (Fig.6). Fig.5 Fig.4 Fig.6 www.dellonda.co.uk... - Page 11 If it is left to sag or loosen it WILL compromise the safety of your trampoline and it’s users. This should complete the assembly of your trampoline, please ensure you have read and understood all of the safety information and instructions prior to use. www.dellonda.co.uk...
-
Page 12: Maintenance
No liability is accepted for incorrect use of this product. Dellonda Limited Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR 01284 757575 support@dellonda.co.uk...
