142*100mm
Specifications
Images sensors:
Power upply:
Lens Angle(Deg.):
TV System:
Video Output:
S/N Ratio:
IP rating:
Operating
Temperature(Deg.C):
White Balance:
Minimum illumination:
AGC:
Resolution(TV Lines):
Electronic shutter
Effective pixels:
The above parameters can ba modified without separate notification
PC1030
MT9V136
PC3030
DC9V - 15V
170
PAL/NTSC
1.0vp-p,75ohm
48dB
IP68
-30 ~ +70
RH95%MAX.
Auto
0.5Lux
Auto
420
480
1/60(NTSC) 1/50(PAL)
1/10,000second
656*492

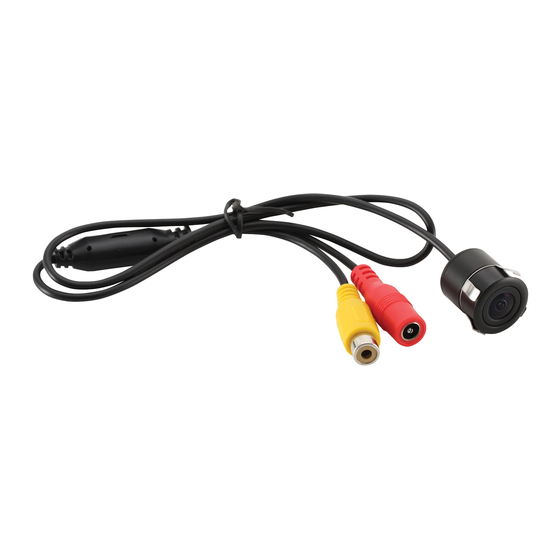

Mini Rear-view
Flush Mount Camera
Model : CAM22
User Manual
Thank you for choosing Boss Audio.
DO NOT FULLY RELY ON THE REVERSE
CAMERA WHEN BACKING UP, know your
surroundings before backing.
Advertisement
Related Manuals for Boss Audio Systems CAM22
Summary of Contents for Boss Audio Systems CAM22
- Page 1 S/N Ratio: 48dB Flush Mount Camera IP rating: IP68 Operating -30 ~ +70 RH95%MAX. Temperature(Deg.C): White Balance: Auto Model : CAM22 Minimum illumination: 0.5Lux AGC: Auto User Manual Resolution(TV Lines): 1/60(NTSC) 1/50(PAL) Electronic shutter Thank you for choosing Boss Audio. 1/10,000second...
- Page 2 Installation Simple Troubleshooting Guide 1. Wire connection The following checklist might help to solve the problems which you meet when using the unit. Please double check and make sure if the connection and the procedure of DC 12V the operation is done properly before using the checklist below DC 12V Power / video...
