Summary of Contents for AXMINSTER WORKSHOP AW37E

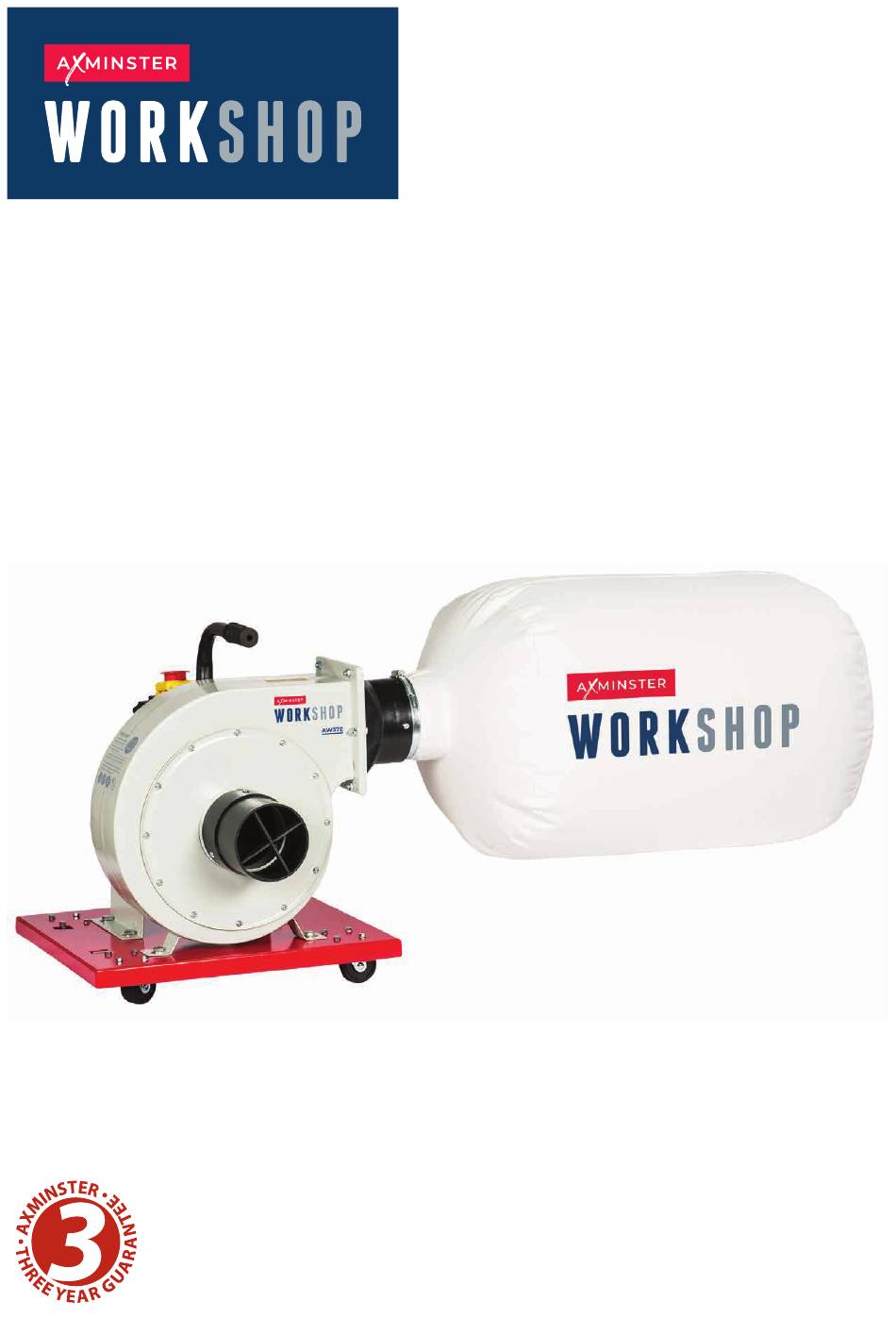

- Page 1 Code 107695 Original Instructions AW37E 1HP Extractor AT: 11/01/2023 BOOK VERSION: 3...
-
Page 2: Eu Declaration Of Conformity
EN 62233:2008 EN 60335-2-69:2012 Type Extractor Model AW37E and conforms to the machinery example for which the EC Type-Examination Certificate No AM 50352798 has been issued by Laizhou Planet Machinery Co., Ltd. Signed at: Yutai West Street Laizhou, Shandong 261400 China and complies with the relevant essential health and safety requirements. -
Page 3: What's Included
WHAT’S INCLUDED Quantity Item Part Model Number AW37E Dust Extractor Dust Bag Outlet Duct and Gasket Inlet Grill Large Clip Handle Castor Wheels with Fixings Wall Mounted Hook Brackets Hex Key... -
Page 4: General Instructions For 230V Machines
GENERAL INSTRUCTIONS FOR 230V MACHINES The following will enable you to observe good • Leave machine unplugged until work is about to working practices, keep yourself and fellow workers commence. • Always disconnect by pulling on the plug body safe and maintain your tools and equipment in good working order. - Page 5 SPECIFIC SAFETY FOR DUST EXTRACTORS DO NOT use this machine as a vacuum cleaner, try to KEEP the particle filter clean. The machine relies on keep the waste medium to wood by-products. its ability to ‘blow’ air through the filter to generate good suction.
-
Page 6: Specification
SPECIFICATION Code 107695 Model AW37E Rating Workshop Power 230V 50Hz 750W 1ph Air Flow 640 m³/hr @ 100mm Filtration 30 micron Sound Power Level 70 dB(A) (1.5 dB) Hose Diameter 100mm Bag Capacity 37 litre Overall L x W x H... - Page 7 ASSEMBLY Step 3 Step 5 • Locate the outlet duct and gasket (C) assembly and remove the bolts nuts and washers. Step 4 Gasket • Remove the two thread bolts on the handle (F). Line up the holes with the pre-drilled holes to the rear of the fan housing and secure in position with the two bolts.
- Page 8 ASSEMBLY Step 7 Step 9 • Introduce the inlet duct (D) over the inlet fan housing. Line up the holes and replace the Phillips • Open up the dust bag and introduce the large screws to secure it in position. clip (E) over the bag’s opening.
-
Page 9: Illustration And Parts Description
ILLUSTRATION AND PARTS DESCRIPTION Dust bag Handle Base plate Fan housing Inlet duct Access plate Wall mounting slots NVR Control switch Motor Emergency Stop NVR Switch ON/OFF buttons Cutout slots for wall Press down to stop the machine mounted hook brackets (H) -
Page 10: Wall Mounting
WALL MOUNTING... - Page 11 WALL MOUNTING 172mm Wall hook brackets 1,100mm Inlet hose Floor Locate the wall mounting brackets (H) and fasten to the wall, using wall plugs and screws. The position of the wall brackets needs to be 172mm (centre to centre) with the ‘hook’ of the brackets at least 1,100mm above the floor.
-
Page 12: Maintenance
MAINTENANCE DISCONNECT THE EXTRACTOR FROM THE MAINS SUPPLY BEFORE CONTINUING. ALWAYS WEAR A DUST MASK AND EYE PROTECTION WHEN CLEANING THE EXTRACTOR. Daily • Empty the collection bag before it overflows; wear a dust mask whilst removing and emptying the bag. Weekly •... - Page 13 EXPLODED DIAGRAMS/LISTS...
- Page 14 EXPLODED DIAGRAMS/LISTS PART NO DESCRIPTION SIZE CASTER SCREW PAN. HEAD. M6X16 SPRING WASHER ø6 BASE PLATE SCREW PAN. HEAD. M5X10 INLET COVER SCREW HEX.SOCKET. HEAD. M6 X 20L(L.H.) SET SCREW SOCKET. HEAD. M8X10 WASHER TURBO FAN FAN HOUSING WASHER ø8 12-1 SCREW HEX.
-
Page 15: Wiring Diagram
WIRING DIAGRAM... - Page 16 The Axminster guarantee Buy with confidence from Axminster! So sure are we of the quality, we cover all parts and labour free of charge for three years! axminstertools.com/3years For more information visit The packaging is suitable for recycling. Please dispose of it in a responsible manner. EU Countries Only Do not dispose of electric tools together with household waste material.
