User Manual

SE5000U (15S 48V-4.8Kwh /16S 51.2V-5.12Kwh)

SE7000U (15S 48V-7.2Kwh / 16S 51.2V-7.68Kwh)

SE10000U (15S 48V-9.6Kwh / 16S 51.2V-10.24Kwh)

For On / Off Hybrid Solar Storage System

Table of Contents

Need help?

Do you have a question about the SE5000U and is the answer not in the manual?

Questions and answers

Summary of Contents for SPARENERGO SE5000U

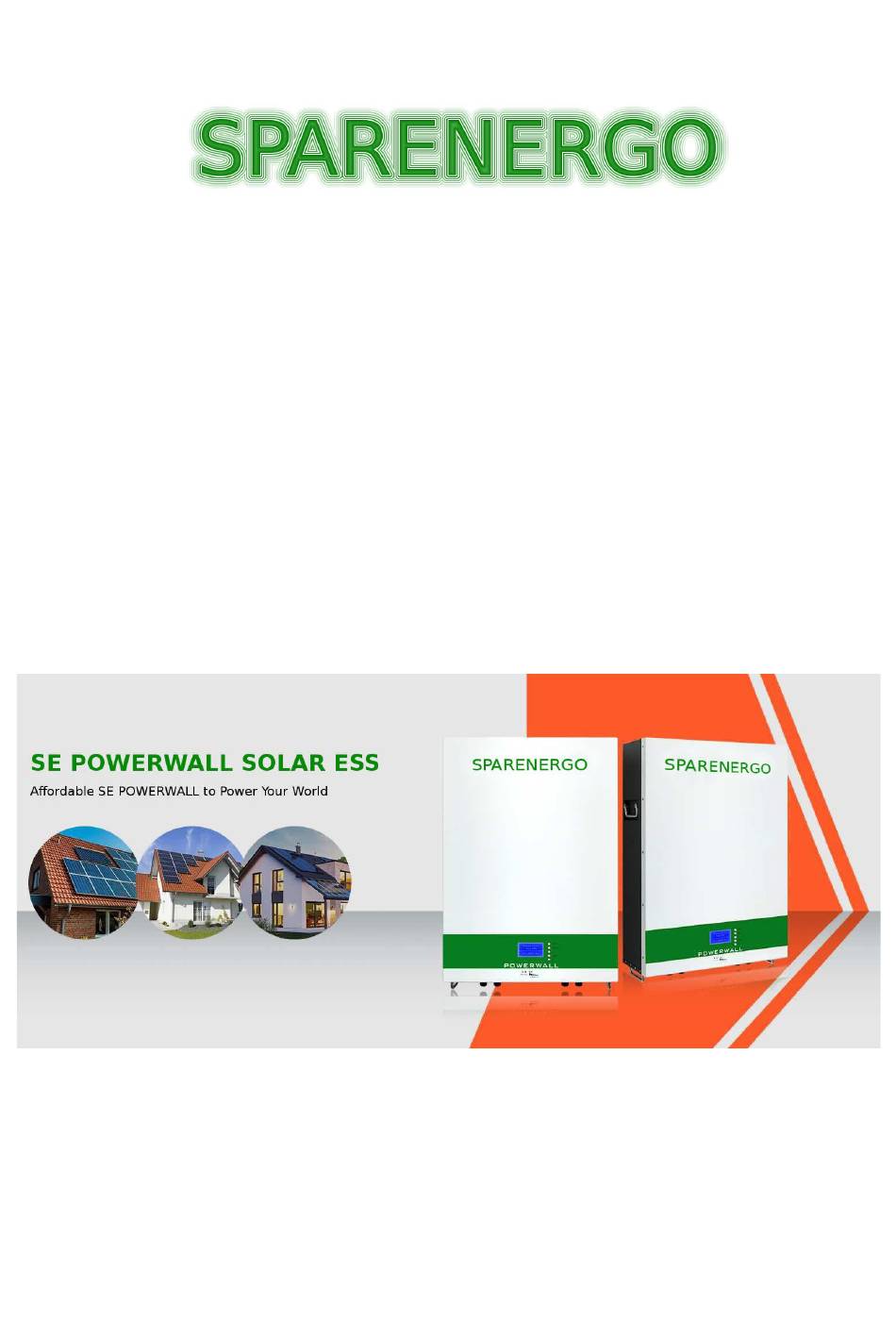

Page 1 User Manual SE5000U (15S 48V-4.8Kwh /16S 51.2V-5.12Kwh) SE7000U (15S 48V-7.2Kwh / 16S 51.2V-7.68Kwh) SE10000U (15S 48V-9.6Kwh / 16S 51.2V-10.24Kwh) For On / Off Hybrid Solar Storage System...
Page 2: Table Of Contents
Version: 1.0 Contents Safety Precautions.............................. - 2 - 1.1. Before Connecting ..............................- 2 - 1.2. During operation ..............................- 2 - 2. Battery Specifications..............................- 3 - 3. Introduction to the battery ............................- 5 - 3.1. Key Features ................................- 5 - 3.2.
Page 3: Safety Precautions
Safety Precautions It is very important and necessary to read the user manual carefully before installing or using the • battery. Failure to follow any of the instructions or warnings in this document can result in electrical shock, serious injury, death, or may damage the battery and the whole system. If the battery is stored for a prolonged time, it is requirement that they are charged every three to •...
Page 4: Battery Specifications
Battery Specifications Battery Specifications Model No SE-5000U/15S SE-7000U/15S SE-10000U/15S Nominal Parameters Voltage 48 V 48 V 48 V Capacity 100Ah 150Ah 200Ah Energy 4.8 KwH 7.2 KwH 9.6 KwH Dimensions (L x W x H) 680 x480 x180(220)mm 680 x480 x180(220)mm 680x480x180(220)mm Weight 58.5kg...
Page 5 Battery Specifications Model No SE-5000U/16S SE-7000U/16S SE-10000U/16S Nominal Parameters Voltage 51.2V 51.2V 51.2V Capacity 100Ah 150Ah 200Ah Energy 5.12KwH 7.68KwH 10.24KwH Dimensions (L x W x H) 680 x480 x180(220)mm 680 x480 x180(220)mm 680x480x180(220)mm Weight 60.50kg 78.0 kg 105.5kg Basic Parameters Life time(25°C) 20 years Life cycles(80% DOD, 25°C)
Page 6: Introduction To The Battery
Introduction to the battery Key Features 3.1. LiFePO4 composition – provides exceptional safety and longevity • High safety and reliability • 6,000cycles/20 year service life • Consistent performance over wide temperature range • Wall-mounted, convenient installation • Integrated state-of-the-art BMS to manage and monitor battery information including voltage, •...
Page 7 •7 RS485 port RS485 RS485 communication port • • • port Reset button For reset the batter •8 • • • •9 Battery Switch On/Off Turn On/Off • • • CAPACITY Capacity indicator • • • • Alarm indicator • •...
Page 8: Soc Indicator & Status Indicator Guides
SOC Indicator & Status Indicator Guides 3.3. Chart 1: Battery Status • Capacity LED Normal/ Status Warning/ Description Protection Shut Shut down All OFF Down Standby Normal Flash Standby Normal Warning Flash Charge Based on capacity Protection Normal Based on capacity Warning Flash Discharge...
Page 9: Connectors
Chart 2: Battery Capacity • Status Charging Discharging Capacity LED Indicator ～ 0 25% Flash ～ 25 50% Flash ～ Capacity 50 75% Flash ～ 75 100% Flash RUN Status Flash Connectors 3.4. Charge / Discharge connectors: to connect the positive pole (+) and negative pole (-) from the battery to the inverter via DC isolator.
Page 10: Screen Display
3.6.2. Screen Display 3.6.3. Functional Specifications Interface introduction • Main menu page • Electricity/dormancy activated, will show the welcome screen, press the MENU button to enter • the main menu page. As shown in the figure below： Battery parameters collection page •...
Page 11 Battery status page • When the cursor “》”is point to “Battery Status”，press ENTER key will enter into the page of “Battery Status”，As shown in the figure below： Parameter Settings • Screen can not set up parameters System Settings Page • Baud Rate：9600 do not set...
Page 12: Safe Handling Guide
Key description • 1) SW1----NEMU，SW2----ENTER，SW3----UP，SW4----DOWN， SW5-----ESC. 2) Each item is “》”or“--”as a beginning，among them“》”shows the current cursor position， press UP or DOWN key can move the cursor position；with“ 》 ”end of the project，the content of the said project has not shown, press ENTER key can enter the corresponding page.
Page 13: Safety Gear
Safety Gear 4.3. It is recommended to wear the following safety gear when dealing with the battery pack: Insulated gloves • Safety goggles • Safety shoes • Installation Inventory of items 5.1. Thoroughly inspect the packaging upon receipt of goods. If there is any item missing or if there is any damage to the external packaging or to the unit itself upon unpacking, please contact us immediately.
Page 14: Minimum Clearances
5.2.1. Minimum clearances Observe the minimum clearances to walls, other batteries or objects as shown in the diagram and picture below in order to guarantee sufficient heat dissipation Direction Minimum clearance (mm) Above Below Sides Front...
Page 15: Installing The Battery Pack
Installing the Battery 5.3. Pack 5.3.1. Mounting to a wall 1.Choose suitable firm wall with thickness greater than 80mm. 2.Use the mounting frame as a template, mark the hole position. Drill 8 holes according to the hole position, it is ø10 with depth 60mm. Hammer the M8 screws to the above holes, and screw the nut.
Page 16: Parallel Use Of Battery
Parallel use of battery 5.4. Parallel use of battery ( All off grid solar inverters ) 5.4.1. GSL ENERGY powerwall battery is a smart battery to match all off grid solar inverter ( 48VDC) types. When the battery needs to be used in parallel, the maximum connection is 14 units, but we recommend 2- 4 units according to application.
Page 17 Three pcs connect diagram Four pcs connect diagram...
Page 18: Parallel Use Of Gsl Battery On Canbus /Rs485( All Hybrid On-Off Grid Solar Inverters)
Fourteen pcs connect diagram Parallel use of SE battery on Canbus /RS485( All hybrid on- 5.4.2. off grid solar inverters) When the battery needs to be used in parallel, the maximum connection is 15 units(Canbus), 14units ( RS485 ) with hybrid solar inverter, but we recommend to use 2-4 units according to application.
Page 19: Ads Guide Line
If you start to connect GSL hybrid inverter , make sure you should consult with GSL sales manager before connection. If the hybrid inverter is not from GSL factory brand, please specify related hybrid on-off grid inverter brand with Sparenergo sales managers.
Page 20 Canbus Version –Max 15 PCS RS485 Version –Max 14 pcs...
Page 21 One pcs connect diagram...
Page 22 Two pcs connect diagram...
Page 23 Three pcs connect diagram...
Page 24 Four pcs connect diagram...
Page 25 15/14 pcs connect diagram...
Page 26: Product Warranty
Product Warranty 6.1. If you have purchased this product from factory, you should be aware that this warranty is provided in addition to other rights and remedies held by a consumer at law. 6.2. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
Page 27 Please fill the required information in and send this page to factory when you need to apply warranty service support Warranty Card User Information Company / User Name: Address: Telephone: Email: Project installation location: Product Information Battery Model: Serial No : Invoice Number : Purchase Date : Dealer :...
Page 28 Holteiweg 20D 70565 Stuttgart Deutschland Tel: +49 711 96891302 E-Mail: info@sparenergo.de Website: https://sparenergo.de...
