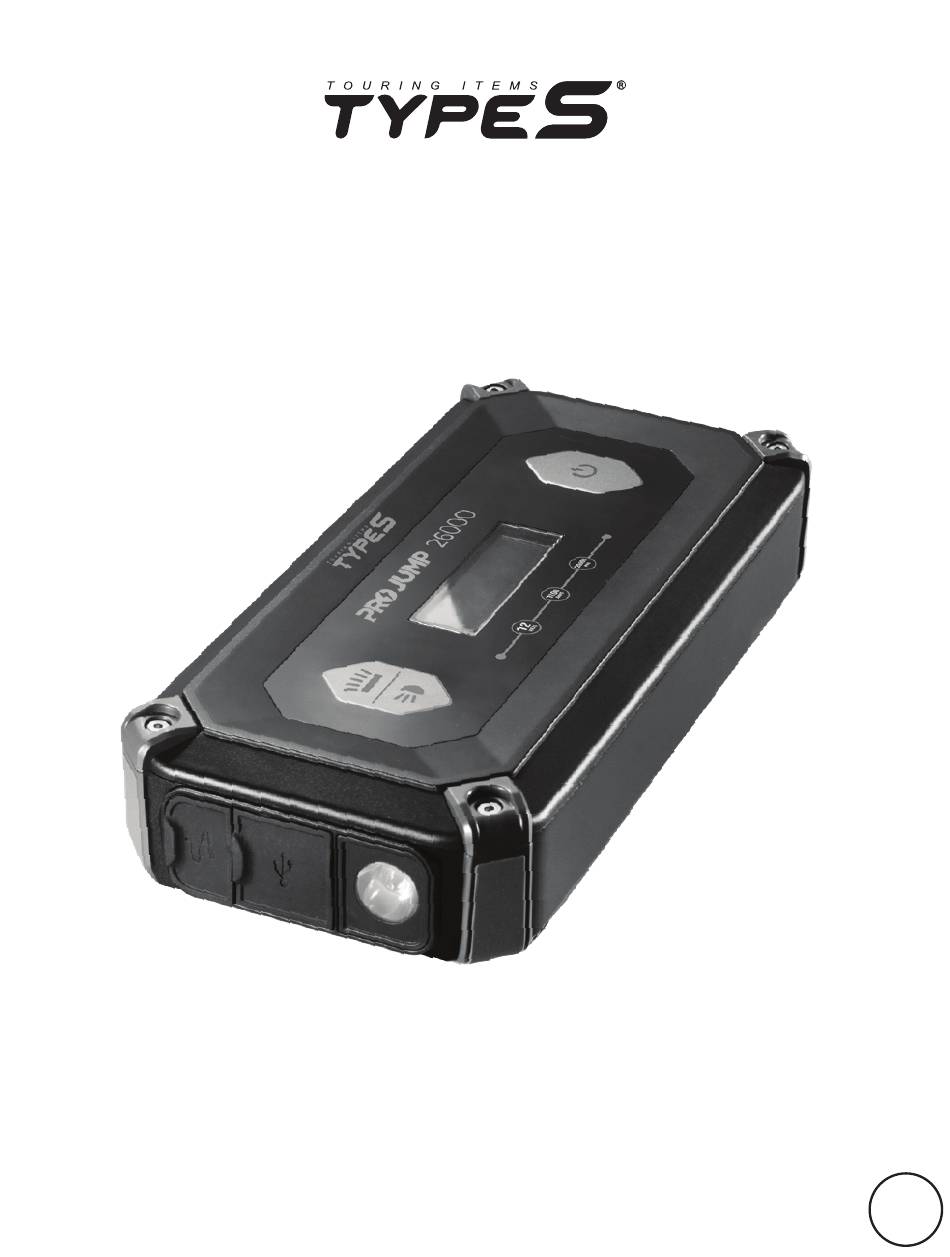

- Page 1 PROJUMP 26000 12V Jump Starter & Portable Power Bank WP ITM. AC530020 User Manual IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY...
-
Page 2: Technical Specifications
TECHNICAL SPECIFICATIONS: Product Dimensions: 8.39 x 4.45 x 1.89 in (213 x 113 x 48mm) Product Weight: 2.22 lb (1010g) Internal Battery: Lithium-Ion Battery Capacity: 94.35 Wh Input (DC Jack): 15V 2A Input (Micro USB): 5V 2A / 9V 2A Input (USB-C): 5V 3A / 9V 3A / 12V 3A / 15V 3A / 20V 2.25A USB-A Output:... -
Page 3: Battery Disposal
WARNING: INSTRUCTIONS PERTAINING TO RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS • Always wear safety glasses when jump starting a battery (to protect your eyes), and gloves when handling a battery (to protect your hands). • When jump starting a vehicle please ensure that the gray plug is securely fitted into the jump starter socket on the jump starter. -
Page 4: Important Safety Instructions
WARNING CONT.: IMPORTANT SAFETY INSTRUCTIONS WARNING - When using this product, basic precautions should always be followed, including the following: a) Read all the instructions before using the product. b) To reduce the risk of injury, close supervision is necessary when the product is used near children. - Page 5 WARNING CONT.: 3) Wear complete eye protection and clothing protection. Avoid touching eyes while working with battery. 4) If battery acid contacts skin or clothing, wash immediately with soap and water. If acid enters eye, immediately flood eye with running cold water for at least 10 minutes and get medical attention immediately.
-
Page 6: Package Contents
PACKAGE CONTENTS: 12V USB Charger & 110-120V PROJUMP Safe & Smart Storage Case Micro USB AC/DC 26000 Jumper Cables Charging Cable Adapter CHECKING THE POWER LEVEL Press the to check the battery status of the PROJUMP. When charging, the battery indicator will glow. PROJUMP is fully charged when the battery indicator is solid and reads 100%. - Page 7 MIRCO TYPE-A CHARGING THE PROJUMP 26000: TYPE-A MIRCO At home: 110-120V AC/DC Adapter TYPE-C TYPE-C 1. Plug bundled 110-120V AC/DC Adapter into wall socket. 2. Connect the DC jack of the 110-120V AC/DC Adapter into the DC charge input port on the PROJUMP.
-
Page 8: Jump Starting
JUMP STARTING: BEFORE YOU JUMP START! Before you attempt to jump start your vehicle, ensure your vehicle is in Park. Unplug all USB charging cables. Ensure manual transmission vehicles are in Neutral with the Emergency Brake engaged. Black The Cable Clamps are color-coded, POSITIVE (+) and BLACK for NEGATIVE (-). - Page 9 JUMP STARTING CONT.: 3. Connect the clamp to the POSITIVE (+) post on the car battery. The POSITIVE battery post will be slightly larger than the NEGATIVE post, and will be marked with a PLUS (+) sign. There may also be a plastic protective cover over the positive battery post.
- Page 10 JUMP STARTING CONT.: Clamp cables to battery. The engine should start if there are no other problems (such as a bad starter or ignition circuit problem). Do not attempt to jump start the vehicle more than 3 times with the PROJUMP. If the vehicle fails to start after 3 attempts, it is likely due to alternative reasons that should Ready, Start vehicle ignition.
- Page 11 This status shows after 90 seconds time out. Disconnect the jumper cables from the car battery and PROJUMP to reset. Reconnect the jumper cables to jump start the vehicle. None Please contact TYPE S for troubleshooting Solid LED On Flashing LED LED Off Message on LCD Screen...
-
Page 12: Language Selection
LANGUAGE SELECTION: Function Action Remarks Turn on the Press the PROJUMP Switch Press and hold for 5 seconds until the Remain in French language word “English” is shown on the LCD screen, mode if product is idle to French then press once to enter French mode. -
Page 13: Conditions Of Warranty
TYPE S LIMITED WARRANTY TYPE S warrants, to the original purchaser, that its products are free from defects in material and workmanship for 1 year from the date of original purchase. Where permitted by law, TYPE S’s liability shall be limited to that set forth in this limited express warranty. -
Page 14: Owner's Responsibilities
If at that time it is determined that a replacement unit is needed, the support representative will issue a Return Authorization and instruct on how to get a new unit. TYPE S makes no other warranty of any kind aside from the limited express warranty stated herein. - Page 15 WARRANTY CONT.: FCC Compliance Statement: PROJUMP 26000 Model: AC530020 Responsible Party: TYPE S 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626 Tel: 1-866-294-9244 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:...
-
Page 16: Troubleshooting
A Horizon Brands Company 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626 Mon - Fri, 8AM - 5PM (Pacific Time) Tel: 1-866-294-9244 (English only) | info@typesauto.com ©2021 TYPE S. All rights reserved. www.typesauto.com Made in China ML-530020_V1...
