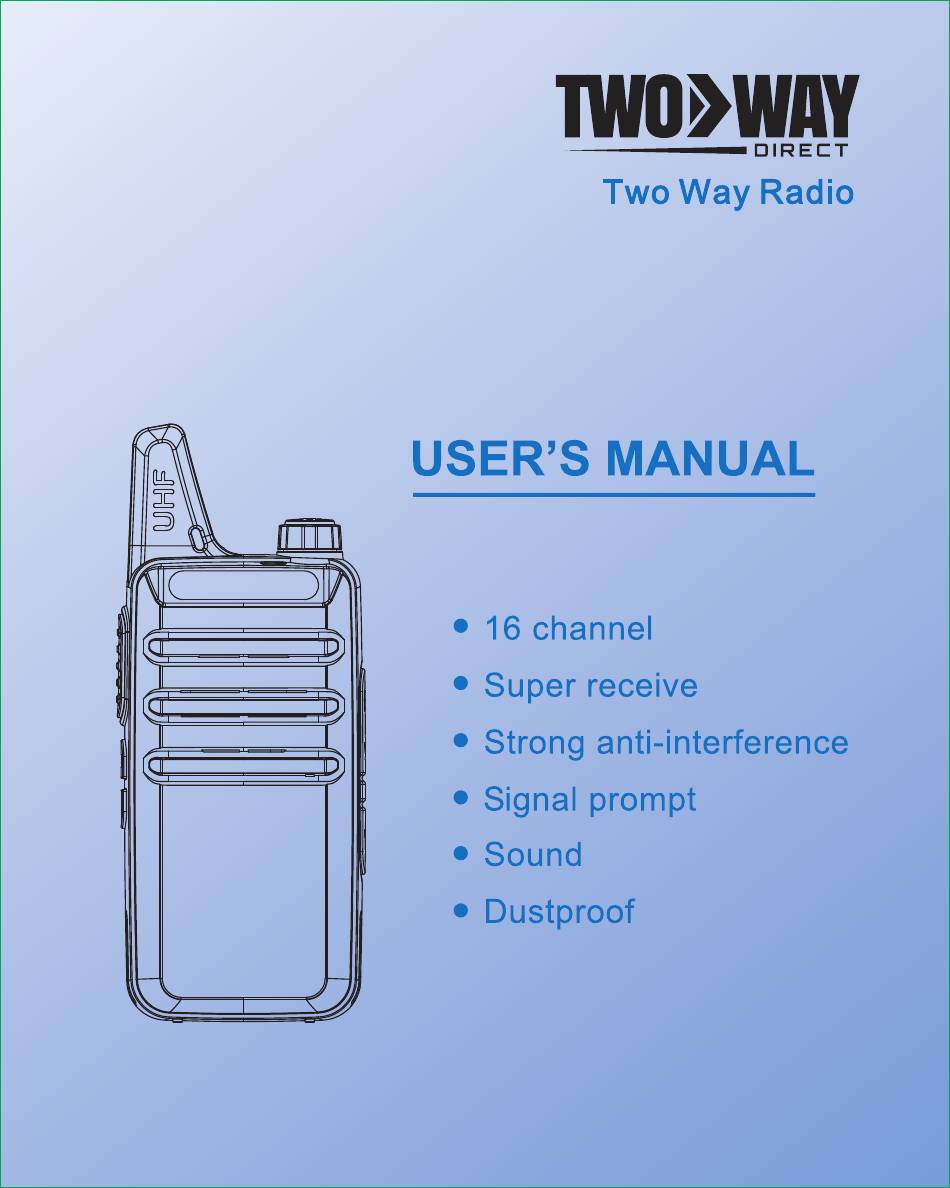

Page 1 XTR50U （EN）...
Page 2 WARNINGS Product safety and RF Exposure for two way radio: Before using this two way radio, please read the manual which contains important operating instructions for safe usage, RF Energy Awa- reness, control information and operational instructions for compliance with RF Energy Exposure limits in applicable national and international standards, and also read the operational instructions for safe use.
Page 3: Table Of Contents
Contents Function Operation ----------------------------------------- 01 Standard Accessories ------------------------------------- 02 Optional Accessories -------------------------------------- 02 More Optional Accessories ------------------------------- 03 Get Acqainted ---------------------------------------------- 04 Function Description --------------------------------------- 04 Attaching & Removing ------------------------------------- 05 Technical Parameters -------------------------------------- 06 Warnings ---------------------------------------------------- 07...
Page 4: Function Operation
Function Operations Antenna Power/Voice volume Signal light Charger light Speaker Microphone PTT key Channel selector plus Monitor Lock key MIC/Speaker Channel port selector reduce Charger USB plug connector Charger connector...
Page 5: Standard Accessories
Standard Accessories Radio body Micro-USB Belt clip Battery Optional Accessories Charger...
Page 6: More Optional Accessories
More Optional Accessories Acoustic tube headset Programming cable Speaker microphone Throat mic Note: For more information, please visit our website: www.twowaydirect.com...
Page 7: Get Acqainted
Get Acquainted ● The battery is not charged in a factory. Please charge the battery before initial use or after long time storage. ● Repeat charging and discharging the battery 2 or 3 times and the battery would reach its maximum capacity, please replace or charge the battery when it is in low power.
Page 8: Attaching & Removing
Charge” will sound, required to replace battery or recharge the battery. ● Monitor This function can be realized by the long press of the default key. Press the monitor key, the Signal Indicate will change to Green. ● QT and DQT This function mainly uses to avoid irrelative calling in caertain channel.
Page 9: Technical Parameters
Technical Parameters General Operating Frequency Output Power ≤2.0W Channels Modulation Type FM(F3E) Antenna Integrated Antenna Antenna Gain 1.8dBi Bandwidth 12.5KHz/25KHz Power Source DC3.7V Dimension 96*55*22mm Transmit The maximum deviation ≤±5KHz Residual radiation <60dB Current ≤1000mA Receiver Sensitivity <0.16μV (12dB SINAD) Squelch Sensitivity <0.2μV Intermodulation...
Page 10: Warnings
Warnings RF ENERGY EXPOSURE AND PRODUCT SAFETY GUIDE FOR PORTABLE TWO-WAY RADIOS Before using this radio, read this guide which contains important operating instructions for safe usage and RF energy awareness and control for compliance with applicable standards and regulations. This two way radio uses electromagnetic energy in the radio frequency (RF) spectrum to provide communications between two or more users over a distance.
Page 11 operating instructions required to control your RF exposure and to satisfy compliance requirements. Radio License Governments keep the radios in classification, business two-way radios operate on radio frequencies that are regulated by the local radio management departments (FCC, ISED, OFCOM, ANFR, BFTK, Bundesnetzagentur...).To transmit on these frequencies, you are required to have a license issued by them.
Page 12 (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interfer- ence that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
Page 13 electrical and electronic products, batteries, and accumulators (rech- argeable batteries) must be taken to designated collection locations at the end of their working life. Do not dispose of these products as unsorted municipal waste. Dispose of them according to the laws in your area.
Page 14 possibly cause interference with other devices or systems. To avoid such interference, turn off the radio in areas where signs are posted to do so. • DO NOT operate the transmitter in areas that are sensitive to elect- romagnetic radiation such as hospitals, aircraft, and blasting sites. •...
Page 15 herein are not met. Operating Instructions: • Transmit no more than the rated duty factor of 50% of the time. To Transmit (Talk), push the Push to Talk (PTT) button. To receive calls (listen), release the PTT button. Transmitting 50% of the time, or less, is important because the radio generates measurable RFenergy exposure only when transmitting in terms of measuring for standards compliance.
Page 16 configured for electromagnetic compatibility. Avoid Choking Hazard Small Parts. Not for children under 3 years. Turn off your radio power in the following conditions: • Turn off your radio before removing (installing) a battery or accessory or when charging battery. •...
Page 17 • When using the radio without a headset or earpiece, do not place the radio's speaker directly against your ear • Use careful with the earphone maybe possible excessive sound pressure from earphones and headphones can cause hearing loss Note: Exposure to loud noises from any source for extended periods of time may temporarily or permanently affect your hearing.
Page 18 of electrical shock or fire. • Do not operate the charger if it has been broken or damaged in any way. • Do not place a portable radio in the area over an air bag or in the air bag deployment area. The radio may be propelled with great force and cause serious injury to occupants of the vehicle when the air bag inflates.
Page 19 Remarks: 1. This guarantee card should be kept by the user, no replacement if lost. 2. Most new products carry a two-year manufacturer’s warranty from the date of purchase. 3. The user can get warranty and after-sales service as below: •...
Page 20 MADE IN CHINA Two Way Direct, Inc. 3262 Grey Hawk Court, Carlsbad, CA 92010, USA www.twowaydirect.com...
