NINGBO YOUWON TECHNOLOGY ELECTRONICS CO., LTD
Features：
1．
Providing RS-422 interface，highly integrated，can connect with transceiver equipment
directly.
2. Low power RF transmission：Maximum transmit power 10mW
3. GFSK/FSK modulation mode
4. Crystal frequency stabilization.
5. High-efficiency forward error correction channel encoding technology is used.
Main Application Areas：
1. AMR – Automatic Meter Reading
2. Wireless alarm and security systems
3. Wireless POS, PDA
4. Long-distance non-contact RF smart cards, RFID tags.
5. Wireless Field Bus、wireless conference voting system
ADDRESS ：#928, XUEYUAN ROAD, LUGANG VILLAGE, GAOQIAO TOWN, NINGBO TELE
PHONE：0574 88046201
ZF01-C Wireless Module
Operation Manual

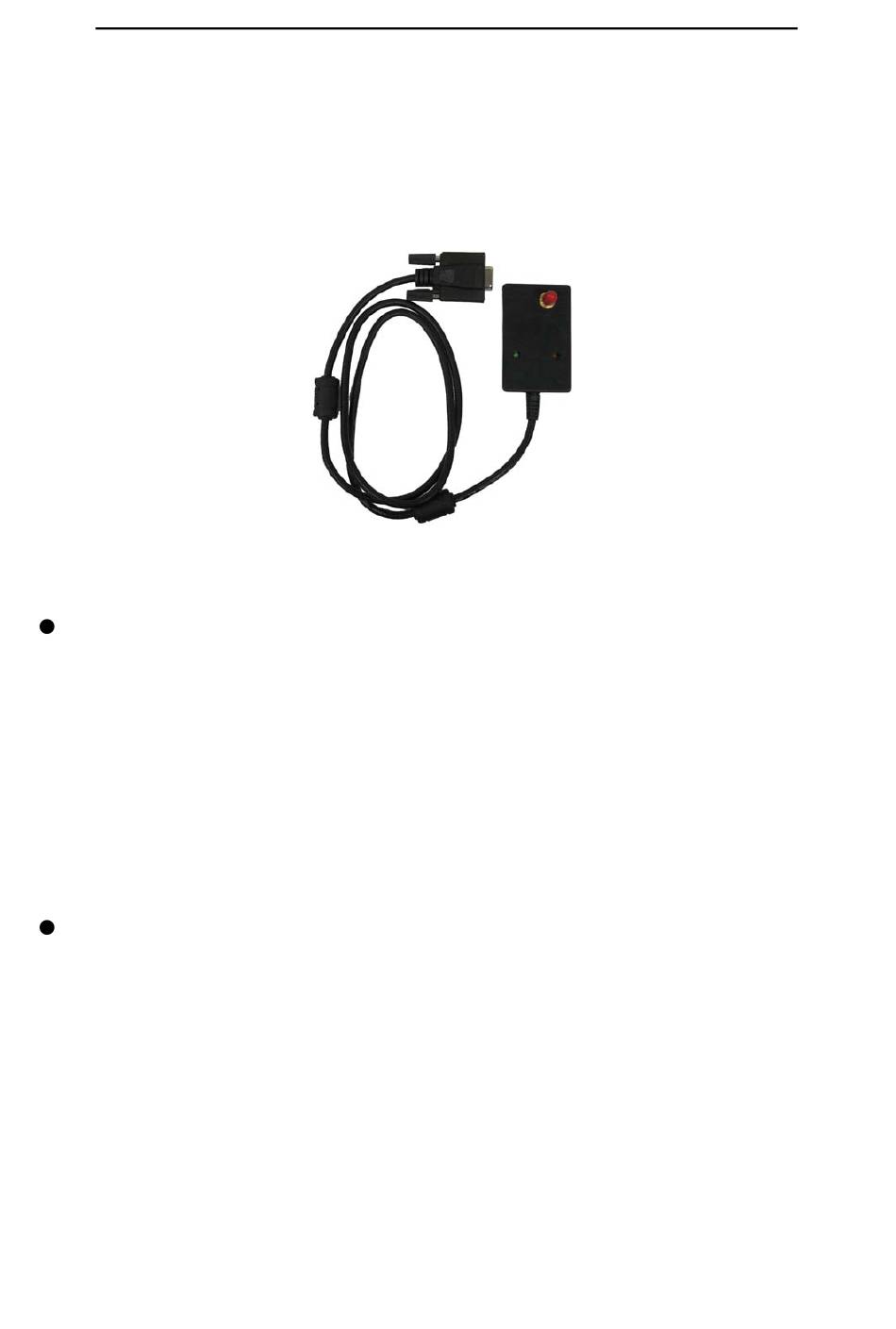

Figure 1. ZF01-C wireless module
FAX：0574-88046202
Advertisement
Table of Contents
Summary of Contents for Youwon ZF01-C
- Page 1 NINGBO YOUWON TECHNOLOGY ELECTRONICS CO., LTD ZF01-C Wireless Module Operation Manual Figure 1. ZF01-C wireless module Features： 1． Providing RS-422 interface，highly integrated，can connect with transceiver equipment directly. 2. Low power RF transmission：Maximum transmit power 10mW 3. GFSK/FSK modulation mode 4. Crystal frequency stabilization.
- Page 2 NINGBO YOUWON TECHNOLOGY ELECTRONICS CO., LTD Main Technical Specifications： 433.050MHz RF channels GFSK modulation mode baud rate 9600bps output power 10mW Interface data UART ,8E1/8N1 data format format Power supply DC 3.6V---5V overall 70 X 45 X 17 mm dimensions Figure2.
- Page 3 NINGBO YOUWON TECHNOLOGY ELECTRONICS CO., LTD Interface Description： ZF01-C wireless module can be directly connected to RS-422 by RS-422 port,shown equipment as Figure3. Antenna Antenna Wireless communication RS422 RS422 channel setting RS422 RS422 RS422 RS422 RS-422 RS-422 equipment equipment Figure3. ZF01-C wireless communication application diagram Channel setting There is one group of 5-bit short-circuiter wire (JP2) as shown in Figure 2, defined as A、...
- Page 4 NINGBO YOUWON TECHNOLOGY ELECTRONICS CO., LTD FCC Notices 1. Any changes or modifications not expressly approved by the party responsible for compliancecould void the user’s authority to operate the equipment. 2. This device complies with Part 15 of the FCC Rules. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
