MAV Sense T125ID User Manual

T125 (ID) is a tiny temperature sensor that supports multiple telemetry protocols. It can be used to measure
temperature of the electric motor, batteries and other aspects of your model.
The T125ID is able to communicate with the IBEX controllers as it offers direct temperature readings of the motor
temperature to the controller. It also contains some memory space for predefined motor parameters. In case you
don't want to play with the IBEX ESC settings, use the T125ID sensor to store the motor parameters. As a result,
the controller will read the motor settings and adjust its own behavior.
F
EATURES
- Small dimensions. The sensor is connected directly to the receiver telemetry port.
- Temperature min/max values are logged.
- Automatic telemetry detection: Duplex EX, Hott, MSB, S.Bus2, P
- Configurable alarms on high temperature.
- Configuration through the transmitter or MAV Manager PC software.
- Firmware Updates.
- T125ID: Communication with the IBEX controllers.
Dimensions
Weight
Temperature range
Temperature resolution
Operating current
Supply Voltage
Telemetry
Status LED

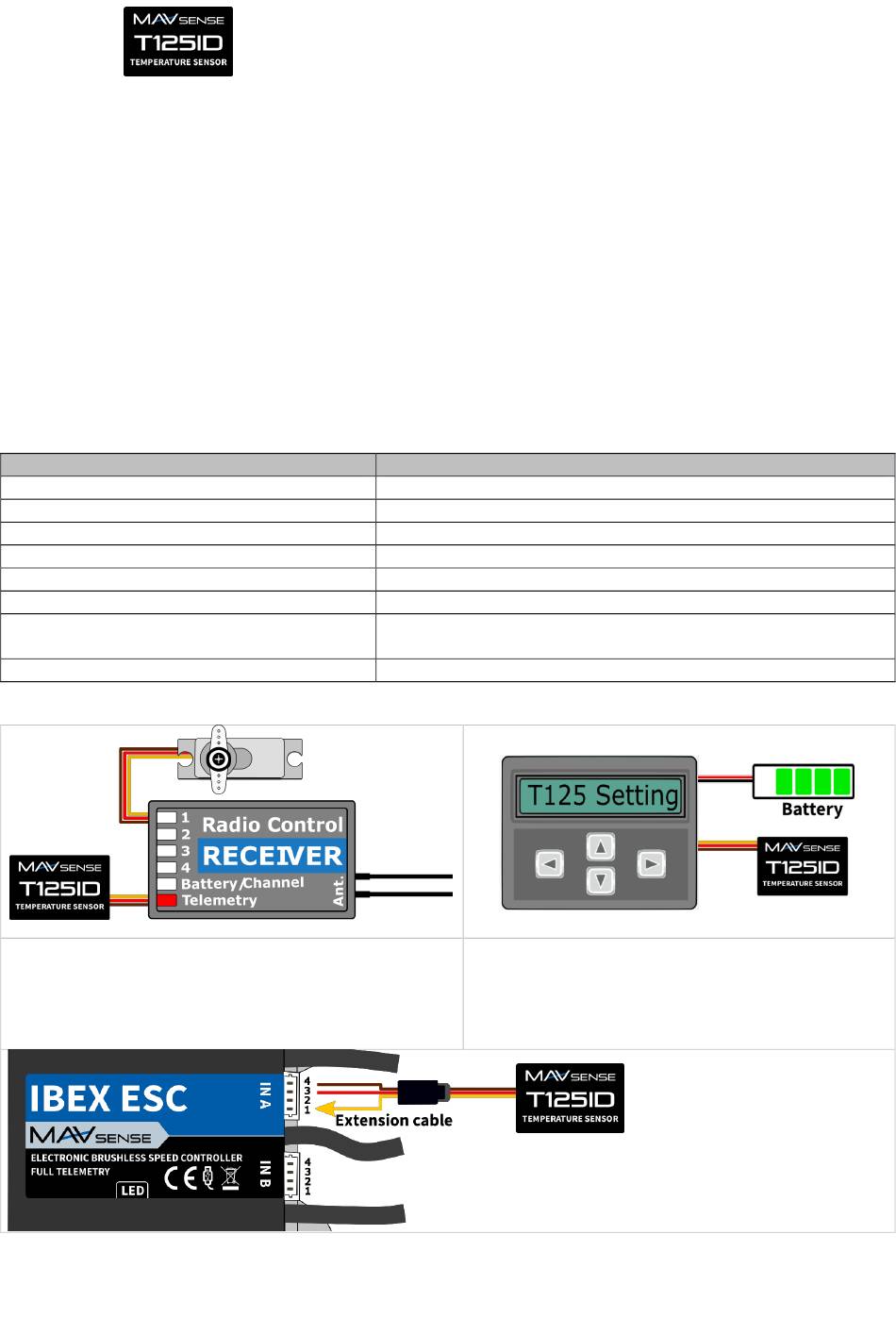

Installation

Connect the T125 directly to the receiver telemetry port
as shown in the picture.
T125 / T125ID U
Duplex EX, Multiplex MSB, Graupner Hott, Futaba S.Bus2,

JETIBOX Connection

Plug the T125 into the sensor slot of the JETIBOX.
Power it up with a battery (4.5 - 8.4V). Now you can
configure the sensor using the arrows on the
JETIBOX.
1
M
SER ANUAL
Bus.
2
T125
21,5x10x4mm
1g
-10÷125°C
1°C
4mA
3.5 – 12V
PowerBox P
NO

IBEX controller connection

Connect the T125ID sensor to
the
supplied JR/Micro-JST cable
adapter. Use the "IN A" port on
the controller.
Firmware Version 1.03
Bus
2
controller using the
