Muse M-09 C, M-09 CW - Portable Clock Manual

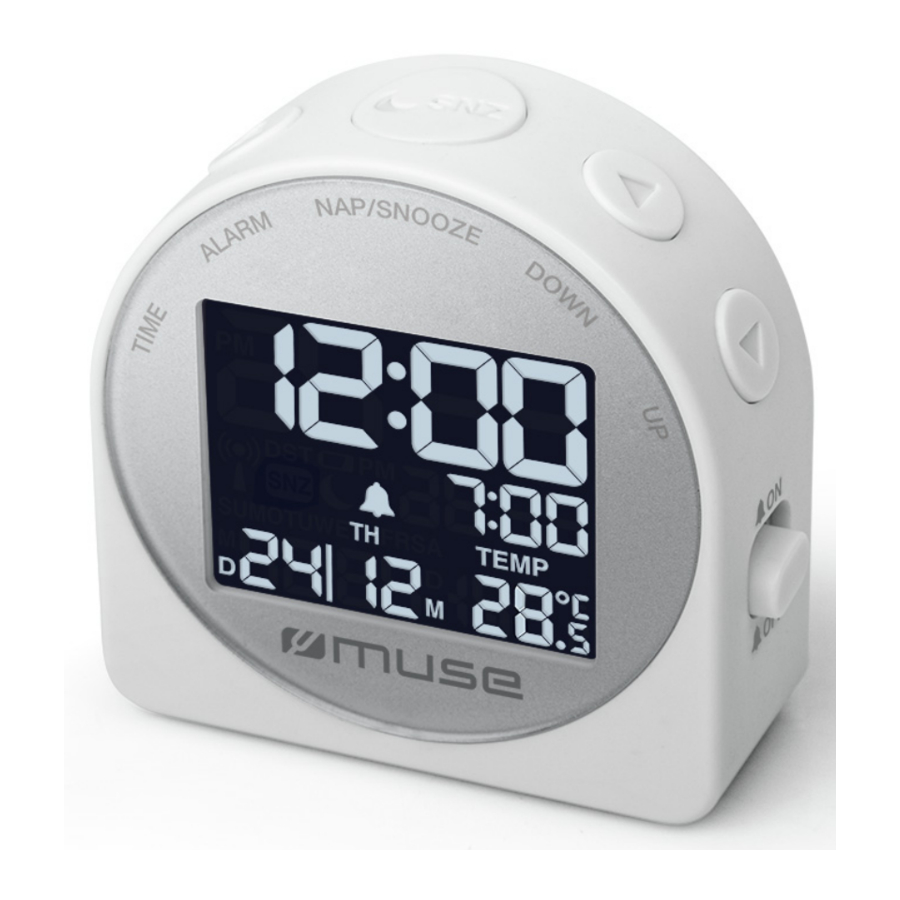

LOCATION OF CONTROLS

Please read the instruction carefully before operating the unit.

1. LCD display
2. TIME : Setting the date and time
3. ALARM : Setting the alarm time
4. NAP /SNOOZE: Setting nap time; Interval alarm repetition
5. DOWN : Setting down
6. UP : Setting up
7. Alarm ON/OFF switch: To turn alarm function On and Off
8. (Reset): To reset the unit to default setting
9. Speaker
10. (Temperature): To switch between Celsius Temperatures (°C) and Fahrenheit Temperatures (°F)
11. Battery compartment

DISPLAY

1. Clock time
2. PM icon for clock time (12h clock format only)
3. Alarm time
4. PM icon for alarm time (12h clock format only)
5. Alarm icon

POWER SUPPLY

• Remove the lid of the battery compartment
• Insert 2 AAA/R03/UM-4 1.5V batteries into the compartment. Make sure to match their polarities (+/-) to the markings inside the compartment.
• Replace the lid.

Notes on batteries

• Do not mix different types of batteries or old batteries with new ones.
• Never recharge the batteries, apply heat to them or take them apart.
• Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
• Do not throw the batteries in fire.
• Attention should be drawn to the environmental aspects of battery disposal.
• In order to avoid leakage, remove the batteries when unit will not be used for a long period of time.
• Please respect the environment. Before throwing any batteries away, consult your distributor who may be able to take them back for specific recycling.
• The batteries need to be replaced when the low battery icon appears on display.

Danger of explosion if batteries are incorrectly replaced. Replace only with the same or equivalent type.

SETTING THE DATE AND TIME

1. Press and hold TIME to enter time setting mode. The display will show flashing "2021".
2. Press or to set the year and press TIME to confirm.
3. Press or to select the date format and press TIME to confirm.

4. Press or to set the month and/or day, then press TIME to confirm. The display will show flashing "24h".
5. Press or to select 24h or 12h time format. Then press TIME to confirm and hour digits flash.
6. Press or to set the hour value. Press TIME to confirm and minute digits flash.
7. Press or to set the minute value and press TIME again to confirm.

SETTING THE ALARM

1. Slide the Alarm ON/OFF switch to ON position to turn on the alarm function. The alarm icon will appear on display.
2. Press and hold ALARM button to enter alarm time setting mode and the hour digits flash.
3. Press or to set the hour value. Press ALARM to confirm and minute digits flash.
4. Press or to set the minute value and press ALARM again to confirm.

Notes:

• In 12h clock format, be sure to observe the PM icon to set the alarm time correctly.
• The default alarm time is 0:00 (12:00 for 12h clock format). When the Alarm ON/OFF switch is set to the ON position, the alarm function is turned on. The alarm will sound at 0:00 (12:00 for 12h clock format) if you don't set your alarm time. Set the alarm ON/OFF switch to OFF position if you don't need the alarm.

STOPPING THE ALARM

1. Alarm repetition
   Press SNOOZE. The alarm stops and will sound again 9 minutes later. The snooze icon will blink during the snooze time.
2. Alarm stop
   Press ALARM. The alarm will sound again the next day at the same time.
3. Alarm Cancellation
   Slide the Alarm ON/OFF switch to OFF position to turn off the alarm function. The alarm icon will disappear.

NAP FUNCTION

This function wakes you up after a short period of time.

1. Press and hold NAP until "00" blinks on display. Press or to select 05-10-15-30 or 60 minutes for your nap, then press NAP to confirm. The nap icon will appear on display.
2. To stop the alarm, press NAP .

Note: To cancel the nap function, press and hold NAP until nap time blinks. Press or to select "00" and press NAP to confirm. The nap indicator will disappear.

TEMPERATURE DISPLAY

Press button to switch between Celsius Temperatures (°C) and Fahrenheit Temperatures (°F).

RESET

In case of a malfunction, the unit has to be reset. Press and hold button to reset the unit to default setting.

TECHNICAL SPECIFICATIONS

POWER SUPPLY:
DC 3V 2x1.5V, battery type AAA/R03/UM-4
Specifications are subject to change without notice.
