Digipower PRO-EVENT DP-VL180 - 180 Led Video Light Manual

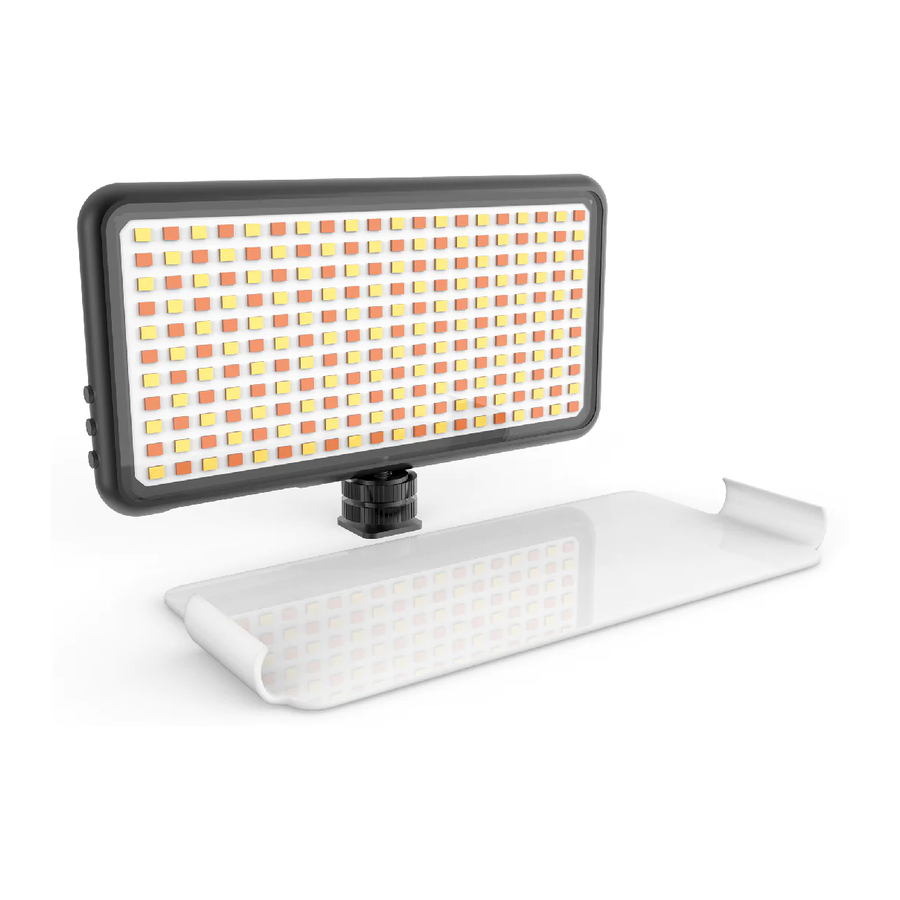

Overview

1. Display screen
2. Power/Mode button
3. +/- adjustment buttons
4. Micro USB and USB-C charge ports
5. ¼" thread mount

Charging the light

• Fully charge the light before first use
• Connect the included micro USB cable from the light to a USB charger (not included)
• The display screen will show a plug to indicate charging
• When the display screen indicates 100% the light is fully charged
• Charge time is approximately 2 hours using a 1 amp USB charger

Using the light

• Press and hold the Power/Mode button for 2 seconds to turn the light on, it will now be in fill mode
• Quick press the Power/Mode button to change modes from color temperature adjustment to brightness level
  • Using the +/- buttons adjust the color temperature from 3100K (warm white) to 5500K (daylight) in 100K increments
  • Using the +/- buttons adjust the brightness level from 1% to 100% in 1% increments
• Press and hold the Power/Mode button for 2 seconds to turn the light off
• When the light is restarted, it will remember the last settings used

Display Indicators

1. Remaining use time for battery
2. Mode indicator, use the power/mode button to switch between modes
3. Color temperature mode
4. Brightness level
5. Battery level
6. Charging indicator
7. High temperature warning light (if the light gets too hot it will auto power off, wait for it to cool down then turn it back on)

Attaching the light to a camera shoe

• Thread the camera shoe adapter onto the bottom of the light
• Slide the shoe adapter into the shoe of a DSLR or Mirrorless camera, turn the thumbwheel clockwise to secure it

Using the diffuser filter

• This kit features a white diffuser to soften the light on subjects
• Clip the diffuser over the front of the light

Product specifications
