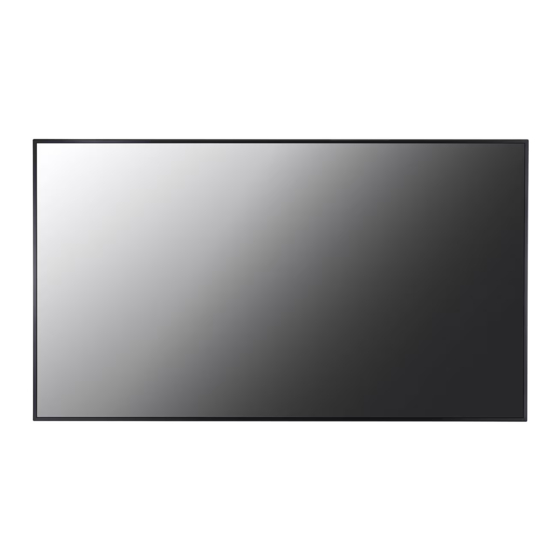

- Page 1 OWNER’S MANUAL LG Digital Signage (MONITOR SIGNAGE) Please read the user manual before using this product to ensure safe and convenient use. 75UH5J 86UH5J www.lg.com Copyright © 2022 LG Electronics Inc. All Rights Reserved.
-
Page 2: Table Of Contents
- Checking the Optional Accessories ......4 - Learning the Buttons ............5 GETTING READY ......6 - Connecting the IR Sensor ..........6 - Portrait Layout ..............7 - Mounting and Removing the LG Logo Bracket ...................8 - Kensington Lock Device ..........10 CHECKING BEFORE INSTALLATION ......11 - Installation Orientation ..........11... -
Page 3: Basic
WARNING - This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference. BASIC NOTE • The accessories provided with your product may vary depending on the model or region. • Product specifications or contents in this manual may be changed without prior notice due to upgrade of product functions. -
Page 4: Checking The Optional Accessories
Checking the Optional Accessories In order to improve product performance, optional accessories are subject to change without prior notice. The illustrations in this manual may differ from the actual product and its accessories. Refer to the product manual for the components of the optional accessories. KT-OPSF NOTE •... -
Page 5: Learning The Buttons
Learning the Buttons The illustrations may differ depending on the model. Buttons • : Adjusts up and down. • : Moves left and right. • : Displays the current signal and mode. • : Accesses the main menus, or saves your input and exits the menus. •... -
Page 6: Getting Ready
GETTING READY Connecting the IR Sensor When you connect the cable to the product, the feature for receiving remote control signals is activated. Rotate the IR sensor according to the screen orientation (Landscape/Portrait). - The image may be different according to the model. Basic installation (Front) (Rear) -
Page 7: Portrait Layout
Portrait scene (Front) (Rear) Portrait Layout When installing in a portrait layout, rotate the monitor counterclockwise 90 degrees (when facing the screen). -
Page 8: Mounting And Removing The Lg Logo Bracket
Lay a clean cloth on the floor, and then put the monitor on it with the screen face down. Remove the screws that secure the LG Logo Bracket to the bottom of the rear side of the monitor using a screwdriver. - Page 9 LG Logo Bracket to the bottom of the rear side of the monitor using a screwdriver. LG Logo Bracket After removing the screw, remove the LG Logo Bracket. Attach the LG Logo Bracket with the screws, aligning it with the hole on the right side.
-
Page 10: Kensington Lock Device
Kensington Lock Device (This feature applies only to some models.) The Kensington lock device connector is located on the back of the monitor. For more information on installation and use, refer to the user manual provided with the locking device. Connect the Kensington security system cable between the monitor and a table. -
Page 11: Checking Before Installation
CHECKING BEFORE INSTALLATION We are not responsible for product damage caused by failure to follow the guide. Installation Orientation Using Vertically When installing vertically, rotate the monitor 90 degrees anti-clockwise while facing the front of the screen. Tilt Angle 15˚ 40 mm Ceiling, Floor Orientation... -
Page 12: Installation Location
Installation Location We are not responsible for product damage caused by failure to follow the guide. Indoor Installing on a Wall A: 100 mm or more • The warranty will not cover any damage caused by using the product in direct sunlight on the front panel. -
Page 13: Wall Mount Holder
Quantity (A x B) (mm) Dimensions (mm) 75UH5J 600 X 400 86UH5J 600 X 400 CAUTION • Disconnect the power cord first, and then move or install the monitor. Otherwise, it may result in electric shock. • If the monitor is installed on a ceiling or inclined wall, it may fall and result in injury. -
Page 14: Precautions For Use
PRECAUTIONS FOR USE Dust The warranty will not cover any damage caused by using the product in an excessively dusty environment. Afterimage • After-image appears when the product is turned off. - Pixels may be damaged rapidly if a still image is displayed on the screen for a long period of time. Use the screen- saver function. - Page 15 • Recommended Usage Condition Change the background colour and text colour at equal intervals. - Afterimages occur less when the colours to be changed are complementary to one another. ITO or MoTi Pixel Layer Switch the screen at equal time intervals. - Take caution, and ensure that text or images from before the screen change are not left in the same location after the screen change.
-
Page 16: Product Specifications
PRODUCT SPECIFICATIONS Without prior notice, all product information and specifications contained in this manual are subject to change to improve the performance of the product. Input/Output Ports HDMI1 / HDMI2 / DisplayPort: 3840 x 2160 @ 60 Hz Recommended Resolution HDMI3 / OPS: 3840 x 2160 @ 30 Hz Resolution DVI-D: 1920 x 1080 @ 60 Hz - This may not be supported on some OS or graphics card... - Page 17 Power Consumption Sleep Mode / Standby ≤ 0.5 W Mode Size (Width x Height x Depth) (mm) 1682.4 x 960.3 x 73.9 / 41.5 / Weight (kg) 86UH5J Power Voltage 100-240 V~ 50/60 Hz 3.5 A On Mode 200 W (Typ.) Power Consumption Sleep Mode / Standby ≤ 0.5 W...
- Page 18 HDMI/ DVI-D/ DisplayPort/ OPS (PC) Support mode Resolution Horizontal frequency (kHz) Vertical frequency (Hz) Remark 800 x 600 37.879 60.317 1024 x 768 48.363 1280 x 720 44.772 59.855 1280 x 1024 63.981 60.02 1680 x 1050 65.29 59.954 1920 x 1080 67.5 3840 x 2160 67.5...
- Page 19 NOTE • Horizontal frequency: The horizontal interval is the time taken to display one horizontal line. When 1 is divided by the horizontal interval, the number of horizontal lines displayed every second can be tabulated as the horizontal frequency. The unit is kHz. •...
- Page 20 Wireless module (LGSBWAC92) Specifications Wireless LAN (IEEE 802.11a/b/g/n/ac) Frequency range (MHz) Output power (Max.) (dBm) 2400 to 2483.5 5150 to 5725 5725 to 5850 Bluetooth Frequency range (MHz) Output power (Max.) (dBm) 2400 to 2483.5 • As band channels can vary per country, the user cannot change or adjust the operating frequency. This product is configured for the regional frequency table.
- Page 21 (Only Vietnam) Wireless module (LGSBWAC92) Specifications Wireless LAN (IEEE 802.11a/b/g/n/ac) Frequency range (MHz) Output power (Max.) (dBm) 2400 to 2483.5 17.5 5150 to 5350 17.5 5725 to 5850 Bluetooth Frequency range (MHz) Output power (Max.) (dBm) 2400 to 2483.5 • As band channels can vary per country, the user cannot change or adjust the operating frequency. This product is configured for the regional frequency table.
-
Page 22: Licence
Dolby Laboratories Licensing Corporation. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks ® by LG Electronics Inc. is under license. Other trademarks and trade names are those of their respective owners. - Page 23 This product qualifies for ENERGY STAR®. Changing the factory default configuration and settings or enabling certain optional features and functionalities may increase energy consumption beyond the limits required for ENERGY STAR® certification. Refer to ENERGYSTAR.gov for more information on the ENERGY The model and serial number of the product are STAR®...
