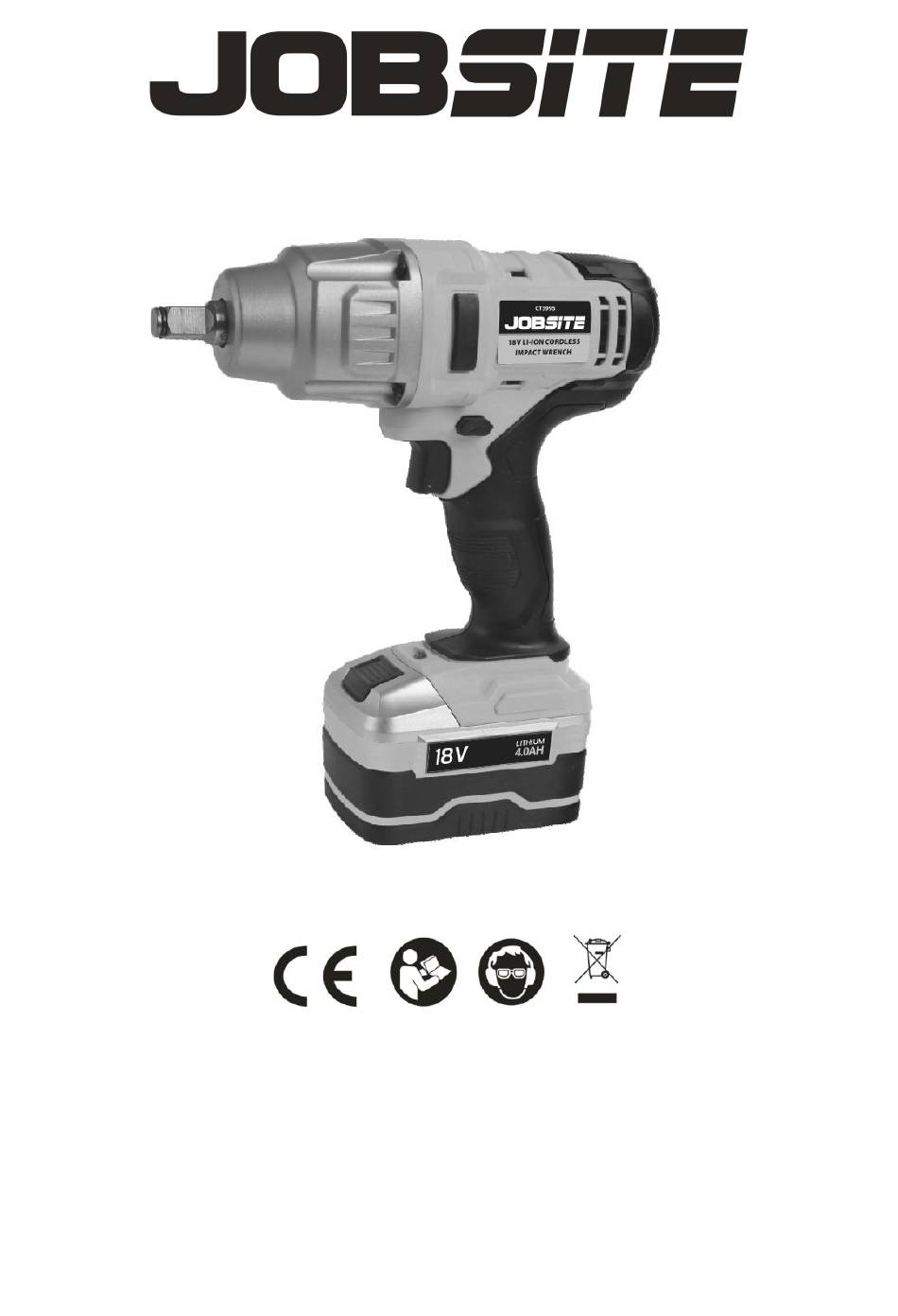

18V LI-ION CORDLESS IMPACT WRENCH CT3995
Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any
errors in text or images and any necessary changes made to technical data. If you have any questions regarding technical problems
please contact our Customer Services.
Cannon Tools Limited
Address: 20 Station Road, Rowley Regis, West Midlands, B65 0JU.UNITED KINGDOM
SAVE THESE INSTRUCTIONS FOR REFERENCE
ORIGINAL INSTRUCTIONS
Ref no. DPB016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CT3995 and is the answer not in the manual?

Questions and answers

Summary of Contents for Jobsite CT3995

  • Page 1 18V LI-ION CORDLESS IMPACT WRENCH CT3995 Ref no. DPB016 ORIGINAL INSTRUCTIONS Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. If you have any questions regarding technical problems please contact our Customer Services.

  • Page 2: Ec Declaration Of Conformity

    In case of alteration of the machine, not agreed upon by us, this declaration will lose its validity. CORDLESS IMPACT WRENCH Product description: 18V LI-ION Model: CT3995 ( Ref no. DPB016) Applicable EC Directives: EC Machinery Directive 2006/42/EC EC Directive of Electromagnetic Compatibility 2014/30/EU...

  • Page 3: Specification

    1. INTRODUCTION 1.1 SCOPE This manual is intended to give an overview of this machines features, functionality and safe operation. 1.2 SPECIFICATION Rated Voltage 18V d.c Rated speed 0-1600/min Rated Impact 0-3200bpm Chuck 1/2” square head Max torque 600N.m Noise level LpA: 99.6 dB (A) K= 3dB(A)) LwA: 110.6 dB (A)

  • Page 4: Health And Safety Information

    2. HEALTH & SAFETY INFORMATION WARNING! For your own safety, read this manual and the general safety instructions carefully before using the appliance. Your power tool should only be given to other users together with these instructions. 2.1 SYMBOLS The following symbols are used in this manual and/or on the machine: WARNING –...
  • Page 5 presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. 2.2.2 Electrical safety a) Power tool plugs must match the outlet. Never modify the plug in any way.
  • Page 6 before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
  • Page 7 use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.
  • Page 8 Before charging, read the instructions. b) For indoor use. Do not expose to rain. c) Only charge NEILSEN /JOBSITE batteries CT2858 or CT3995 in the charger. d) Do not charge any other batteries in the charger. Any other application is considered misuse.

  • Page 9: Connection To The Power Supply (Charger)

    The battery is to be disposed of in-line with local Authority procedures. d) Do not use any other batteries than CT2858 or CT3995 in this product. e) Do not crush, open or burn the battery. Exposure to potentially harmful materials may occur.
  • Page 10 3. IDENTIFICATION 1/2” square head Left/right switch button ON/OFF Switch Soft grip Battery pack Battery pack release button LED work light CT3995 BMC SHOW...

  • Page 11: Unpacking And Checking

    4. UNPACKING & CHECKING Carefully remove the impact wrench from the packaging and examine it for any sign of damage that may have happened during shipping. Lay the contents out and check them against the parts shown. If any part is damaged or missing;...

  • Page 12: Preparing The Impact Wrench

    5. PREPARING THE IMPACT WRENCH 5.1 Install and remove the battery pack Fit a battery pack to the angle grinder and make sure that it is pushed all the way into the battery holder CAUTION: • Always switch off the tool before installing or removing of the battery cartridge.
  • Page 13 3. When the charger is plug in ,the green light will light up. When the battery pack is charging the red light will blink. When the battery pack is fully charged, the red light will stop blinking and remain lighted up After charging, unplug the charger from the wall outlet.
  • Page 14 6. OPERATING INSTRUCTIONS The cordless impact wrench with 1/2” square head. 6.1 Selecting correct socket Always use the correct size socket for bolts and nuts. An incorrect size socket will result in inaccurate and inconsistent fastening torque and / or damage to the bolt or nut.
  • Page 15 Ensure the impact wrench has come to a complete stop before changing direction Switching ON / OFF To switch ON: Pull the trigger (3) To switch OFF: Release the trigger LED worklight The impact wrench is equipped with an LED worklight(7). The LED worklight illuminates immediately after pulling...

  • Page 16: Maintenance And Cleaning

    7. MAINTENANCE AND CLEANING The driver is maintenance – free but must be kept clean. All replacement parts must be replaced by a trained electrician or an authorized service centre unless stated otherwise in this manual. BATTERY USAGE NOTICE The battery pack can become warm if the machine is subject to heavy use.
  • Page 17 8. DISPOSAL Should your appliance need replacement after extended use, do not discard it with the household rubbish but dispose of it in an environmentally safe way. Waste produced by electrical machine items should not be handled like normal household rubbish. Please recycle where recycle facilities exist.

  • Page 18: Parts Diagram

    9. PARTS DIAGRAM...

  • Page 19: Parts List

    10. PARTS LIST When servicing, use only identical replacement parts. Use of WARNING! any other parts may create HAZARD or cause damage to your power tool. Any attempt to repair or replace electrical parts on this power tool may create a hazard unless repair is performed by a qualified technician.
  • Page 20 CANNON TOOLS LTD Add: 20 station road, Rowley Regis, west midlands,B65 0JU.U.K. Made in China...
