Installing the Overlay Panel

To install the overlay panel onto the door, please follow the instructions below. Refer to the dimensions
page to ensure proper measurements prior to installation.
1. Open the door.

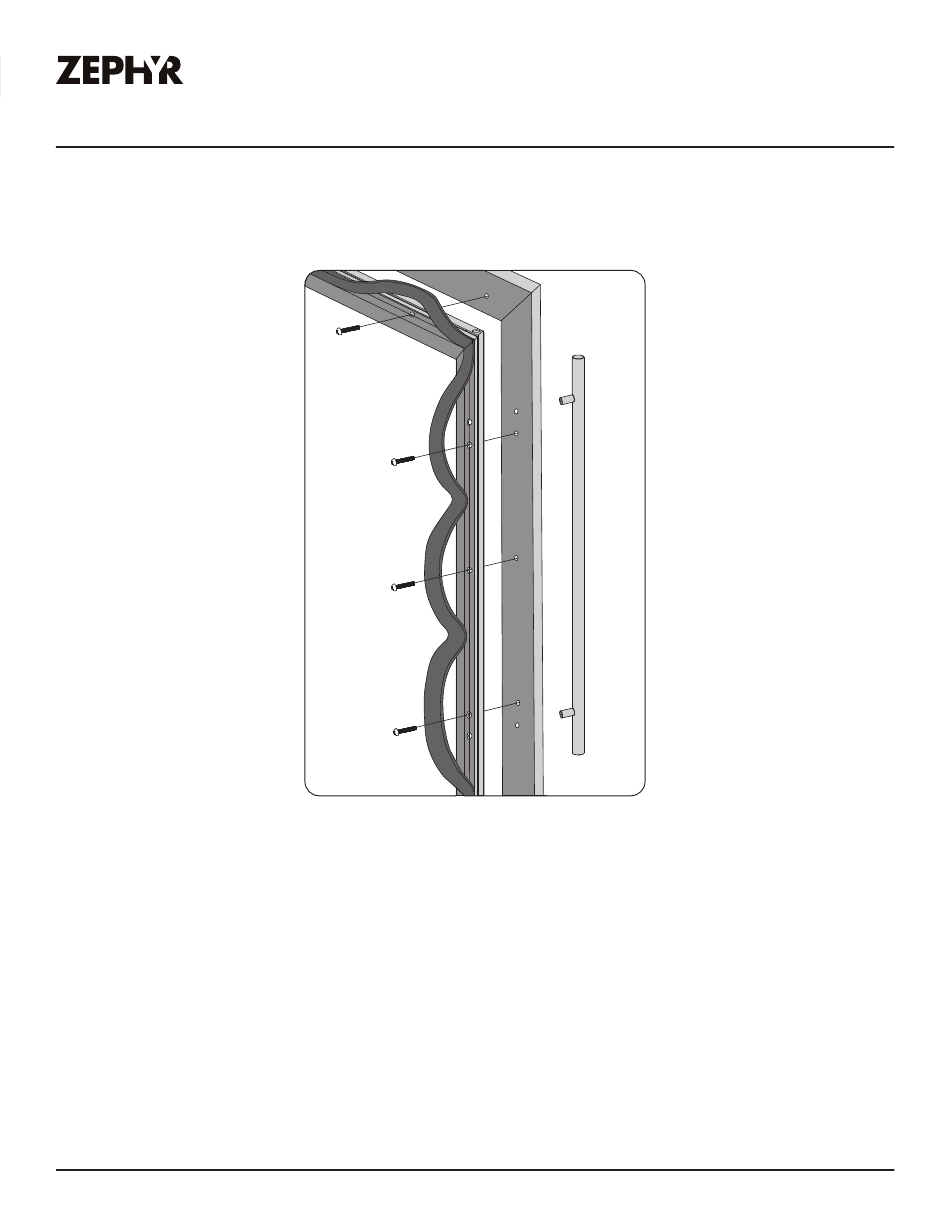

2. Temporarily remove the door gasket to see the 10 holes for the overlay panel. There are 2 holes on
the top and bottom sides of the door with either 3 or 5 holes on the left and right side depending
on where the handle is located. The handle side will have 5 holes.
3. Open the hardware package containing 10 self-tapping screws (ST4*30 size) for the overlay panel.
4. Clamp the overlay panel with the door firmly with bar clamps and screw the self-tapping screws
into the overlay panel. Perform this step per screw until the overlay panel is completely secured.
5. Reattach the door gasket and close the door.
NOTE: If handles will be installed, thread 2 pre-installed screws onto the overlay panel and refer to
Installing the Handle instructions. If they will not be installed, remove the screws from the door.
