ZooZ 800 Series User Manual

www.getzooz.com
Z-Wave Plus Static USB Controller
Ÿ
Latest S2 security protocol for a truly
Ÿ
private network
800 Series Long Range Z-Wave for fast,
Ÿ
low-power direct communication
Extended range up to a mile in open
Ÿ
space when using Long Range
LED indicator for troubleshooting
Ÿ
No drivers needed: works out of the box
Ÿ
on Windows, Linux, and MAC OS
Model Number: ZST39
Ÿ
Z-Wave Frequency: 908.42 MHz
Ÿ
Power: 4.75-5.25 VDC
Ÿ
SDK: 7.18.01
Ÿ
Operating Temperature: 14-104° F
Ÿ
Operating Humidity: Up to 85%
Ÿ
Installation and Use: Indoor only
Ÿ
Dimensions: 2" x 0.8" x 0.3"
Ÿ

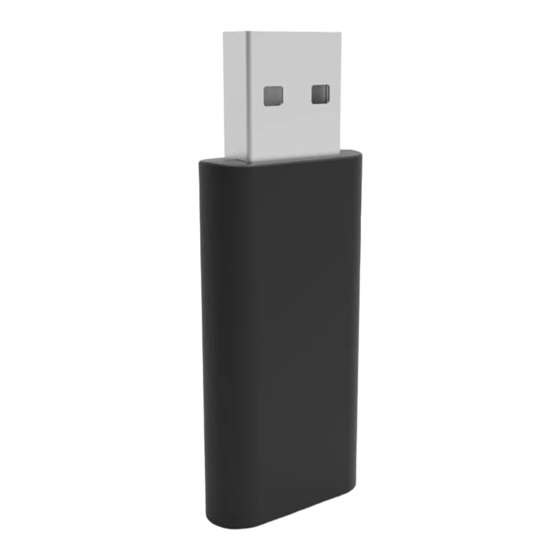

Use this S2 800 Series Z-Wave USB Stick as
a Z-Wave radio for your DIY smart home
system. Simply connect it to a USB port on
your PC, laptop, or Raspberry Pi and match
it with home automation so ware (host
so ware) of your choice to enjoy a fully
secure, private Z-Wave Plus mesh network.
If the so ware supports Z-Wave Long
Range, enable direct communication
between your devices and the controller for
supreme range up to 1 mile and a larger
network size up to 4000 nodes.
Questions? ask@getzooz.com
Windows 2000, XP, Vista, 7, 8 (32 / 64 bit)
The device will display in Device Manager
under Ports. You can access it through the
Windows CreateFile API using "//.//COMxxx"
where xxx stands for the COM port number
assigned by Windows.
UZB.INF and UZB.CAT are listed in the Z-
Wave SDK which uses the standard
usbser.sys or usbser64.sys Windows driver.
Linux
The device will display as "/dev/ttyUSB0",
you can discover it with the "dmesg | grep
tty" command.
MAC OS
The device will display as
"/dev/cu.usbmodem" under Apple: System
preferences: Network.
SerialAPI Mode:
Once the S2 stick is plugged into the USB
port of the host computer, it automatically
enrolls in the SerialAPI mode and remains
active (awake), always listening for
commands sent from the host so -ware
and relaying them to the Z-Wave devices in
the network. It acts as a Z-Wave signal
adapter for your smart home system,
translating any Z-Wave reports and
notifications sent by devices in your
network to your smart home interface.
www.getzooz.com/register
USER MANUAL
800 Z-WAVE STICK
ZST39

FEATURES

SPECIFICATIONS

SET-UP

WINDOWS SET-UP

LINUX SET-UP

MAC OS SET-UP
