Muurbeugel APS-1 Installation Instruction

Table of Contents

Download this manual

Carefully open the carton, remove contents and lay out on cardboard or other protective surface to avoid damage.

Check package contents against the Supplied Parts List in the next page to assure that all components were received

undamaged. Do not use damaged or defective parts.

Carefully read all instructions before attempting installation.

Install and operate this device with care. Please read this instruction before beginning the installation, and carefully

follow all instructions contained herein. Use proper safety equipment during installation.

Please call a qualified installation contractor for help if you:

If you don't understand these directions or have any doubts about the safety of the installation.

If you are uncertain about the nature of your wall, consult a qualified installation contractor.

Do not use this product for any purpose or in any configuration not explicitly specified in this instruction. We hereby

disclaim any and all liability for injury or damage arising from incorrect assembly, incorrect mounting, or incorrect use of

this product.

This TV mount must be securely attached to the vertical wall. If the mount

is not properly installed it may fall, resulting in possible injury and/or

damage.

WARNING

Note:

The mounting components and hardware supplied in this package are not designed for installations to

walls with steel studs or to cinder block walls. If the hardware you need for your installation is not included,

please consult your local hardware store for proper mounting hardware for the application.

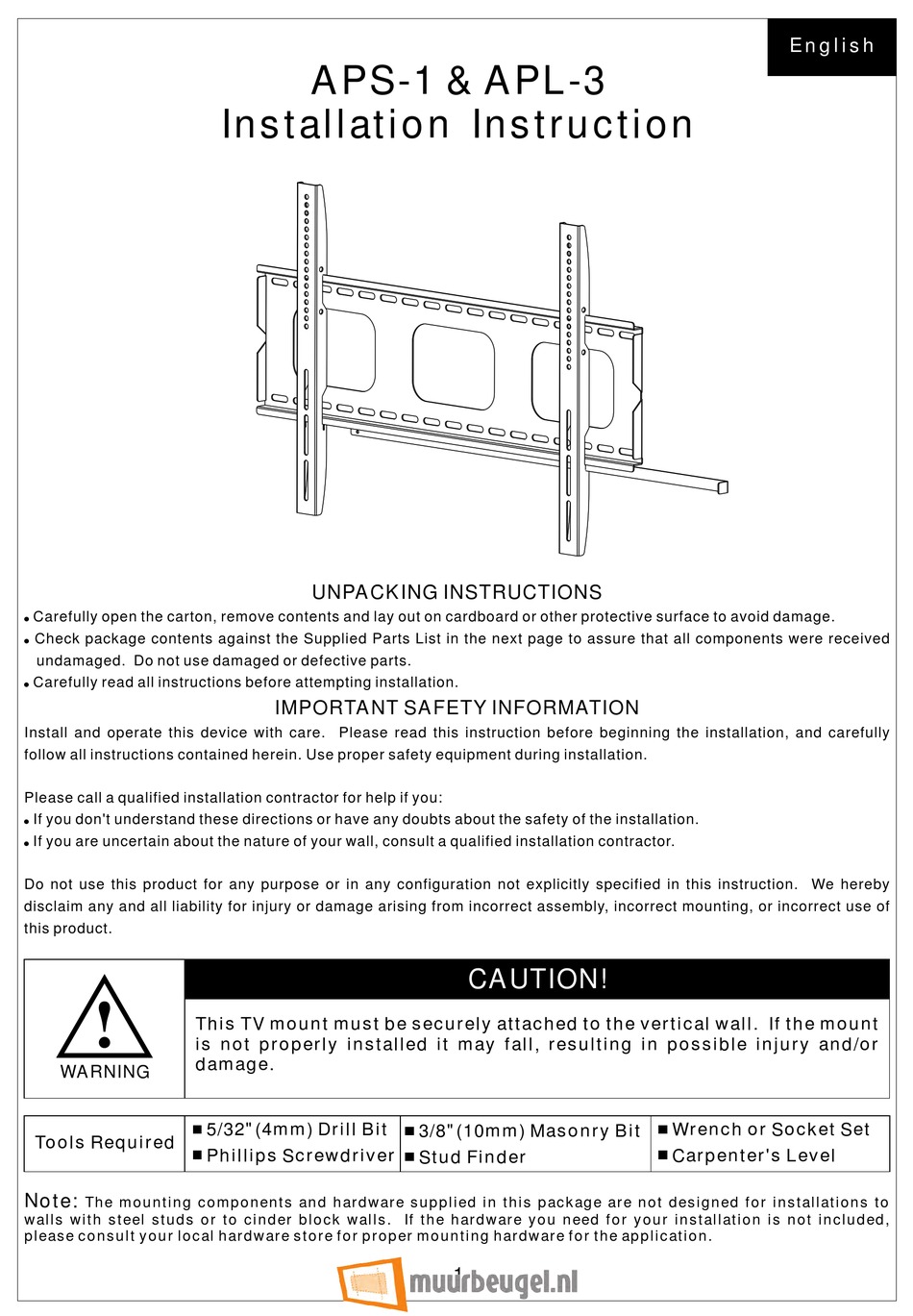

APS-1 & APL-3

Installation Instruction

UNPACKING INSTRUCTIONS

5/32"(4mm) Drill Bit

Phillips Screwdriver

CAUTION!

3/8"(10mm) Masonry Bit

Stud Finder

English

Wrench or Socket Set

Carpenter's Level

Table of Contents

Do you have a question about the APS-1 and is the answer not in the manual?

Page 1 English APS-1 & APL-3 Installation Instruction UNPACKING INSTRUCTIONS Carefully open the carton, remove contents and lay out on cardboard or other protective surface to avoid damage. Check package contents against the Supplied Parts List in the next page to assure that all components were received undamaged.
Page 2 Supplied Par ts List (1)Wall Plate-a (2)Monitor Bracket-b (4)Small Added Hook-c (1)Locking Bar-d (4)M4x12 Bolt-e (4)M5x12 Bolt-f (4)M6x12 Bolt-g (4)M8x16 Bolt-h (4)M4x30 Bolt-i (4)M5x30 Bolt-j (4)M6x35 Bolt-k (4)M8x40 Bolt-l (4)M4 Lock Washer-m (4)M5 Lock Washer-n (4)M6 Lock Washer-o (4)M8 Lock Washer-p (4)M4/M5 Space-q (4)M6/M8 Space-r (8)M4/M5 Washer-s...
Page 3 Mounting the Monitor Brackets to a TV with Flat Back Step 1A First of all, make sure the diameter of the Bolt(e,f,g,h) your TV requires. Once you have determined the correct diameter, please see the relative diagram as below. You will thread the Bolt into the TV using the correct Lock Washer(m,n,o,p) and Washer(s,t).
Page 4 Mounting the Wall Plate to the Wall Step 2 Diagram 2A Brick, Solid Concrete and Concrete Block mounting: Use the Wall Plate(a) as a template to mark 6 hole locations on the wall. Three in the top row of slots and three more in the bottom row. Make sure these holes are level and there is at least 6"(150mm) distance between any two holes.

Apl-3
