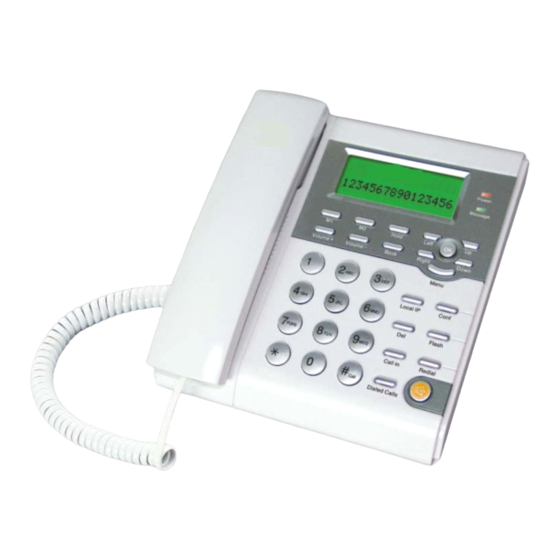

Summary of Contents for KAWATA telecom KA-2003
- Page 1 User Manul for VoIP Phone KA-200 KA-2003 3 3 KA-200 VoIP VoIP VoIP Phone Phone Phone User User User Manual Manual Manual V.10 2006/05/30 第 1 页 共 28 页 KAWA SCIENCE AND TECHNOLOGY CO.,LTD website: http://www.kawatel.com TEL：+86-755-89962209 FAX：+86-755-84272617 E_mail:...
-
Page 2: Table Of Contents
User Manul for VoIP Phone Introduction ............................3 Hardware Overview ....................... 3 Software Overview ......................... 3 Keypad interface for IP Phone demo system ..................4 Keypad description ........................ 4 Keypad Function and setting List ................... 5 Setup the VoIP Phone by Web Browser .................... 9 Login. -
Page 3: Introduction
User Manul for VoIP Phone Introduction Introduction Introduction This user’s manual is for VoIP Phone. This user’s manual will explain the keypad instruction, web configuration and command line configuration for the VoIP Phone. Before using the VoIP Phone, some setup processes are required to make the VoIP Phone work properly. -
Page 4: Keypad Interface For Ip Phone Demo System
User Manul for VoIP Phone Key Name Name Name Description Description Description Note Note Note “1”, “-“, “٫”, “!”, “?” “2”, “a”, “b”, “c”, “A”, “B”, “C” “3”, “d”, “e”, ”f”, “D”, “E”, “F” “4”, “g”, “h”, “I”, “G”, “H”, “I” “5”, “j”, “k”, “l”, “J”, “K”, “L”... -
Page 5: Keypad Function And Setting List
User Manul for VoIP Phone 2.2 Keypad Function and setting List 2.3.1 Phone Book 2.3.1.1 Search:Search Phone Book. 搜尋電話簿清單 2.3.1.2 Add entry:Add new phone number to phone book. 加入新的電話號碼 2.3.1.3 Speed dial:Add speed dial phone number to speed dial list. 加入新的速撥號碼 2.3.1.4 Erase all:Erase all phone number from Phone Book. - Page 6 User Manul for VoIP Phone 2.3.3.6 Auto Dial: Set Auto Dial time from 3~9 seconds. 2.3.3.7 Auto Answer: This function will active on IP Phone with FXO interface. Set Auto Answr for user can re-dial a call from IP call to PSTN call or from PSTN call to IP call. 2.3.3.8 Answer Counter: This function will active on IP Phone with FXO interface.
- Page 7 User Manul for VoIP Phone 2.3.5.1 Service domain 2.3.5.1.1 First realm 2.3.5.1.1.1 Activation: 第一 SIP 伺服器啟動 / 停止 2.3.5.1.1.2 User name: SIP 使用者名稱設定 2.3.5.1.1.3 Display name: SIP 顯示名稱設定 2.3.5.1.1.4 Register name: SIP 登錄名稱設定 2.3.5.1.1.5 Register password: SIP 登錄密碼設定 2.3.5.1.1.6 Proxy server: SIP Proxy 伺服器地址設定 2.3.5.1.1.7 Domain server: Domain 伺服器地址設定...
- Page 8 User Manul for VoIP Phone 2.3.5.6 Status: Show the SIP Proxy register status. You can use UP/Down key to check each Realm’s status. 顯示對 SIP Proxy 的註冊狀態 1. First Realm: 第一 SIP 伺服器註冊狀態 2. Second Realm: 第二 SIP 伺服器註冊狀態 3. Third Realm: 第三 SIP 伺服器註冊狀態 2.3.6 NAT Transversal 2.3.6.1 STUN setting...
-
Page 9: Setup The Voip Phone By Web Browser
User Manul for VoIP Phone Setup Setup Setup the the VoIP VoIP VoIP Phone Phone Phone by by Web Web Browser Browser Browser Default the IP Phone’s NAT is enabled, WAN port is in DHCP Client Mode, LAN port is in DHCP Server Mode. You can connect you PC on LAN port, then you will get an IP Address from the IP Phone. -
Page 10: Phone Book
User Manul for VoIP Phone 3.3.2 In the Phone Book function you can add/delete the phone number in the phone book list. You can input maximum 140 entries phone book list. 3.3.2.1 If you need to add a phone number into the phone book, you need to input the position, the name, and the phone number (by URL type). - Page 11 User Manul for VoIP Phone 3.3.3 In Speed Dial setting function you can add/delete Speed Dial number. You can input maximum 10 entries speed dial list. 3.3.3.1 If you need to add a phone number into the Speed Dial list, you need to input the position, the name, and the phone number (by URL type).
-
Page 12: Phone Setting
User Manul for VoIP Phone 3.4 Phone Setting 3.4.1 In Phone Setting contains Call Forward, SNTP Settings, Volume Settings, Melody Setting, Block Setting, Dial Plan Setting, Call Waiting and Soft-Key Setting functions. 3.4.2 Call Forward function: you can setup the phone number you want to forward in this page. There are three type of Forward mode. - Page 13 User Manul for VoIP Phone 3.4.3 Volume Setting function: you can setup the Handset Volume, Ringer Volume, and the Handset Gain. 3.4.3.1 Handset Volume is to set the volume you hear from the handset. 3.4.3.2 Speaker Volume is to set the volume you hear from the speaker phone. 3.4.3.3 Ringer Volume is to set the ringer volume.
- Page 14 User Manul for VoIP Phone 3.4.5 lock Setting function: you can setup the Block Setting to keep the phone slience. You can choose Always Block or Block a period. 3.4.5.1 Always Block: All incoming call will be blocked until disable this feature. 3.4.5.2 Block Period: Set a time period and the phone will be blocked during the time period.
- Page 15 User Manul for VoIP Phone 3.4.6.5 Auto Prefix : Number for add before dial number. 3.4.6.6 Prefix Unset Plan : When first digit or dial numeb match with pattern then ignore auto prefix. Iignore auto prefix if first digit is ‘0’ Ignore auto prefix if first digit is ‘1’...
-
Page 16: Network
User Manul for VoIP Phone 3.5 etwork 3.5.1 In Network you can check the Network status, configure the WAN Settings, LAN Settings, DDNS settings and VLAN Settings. 3.5.2 Network Status: You can check the current Network setting in this page. 第... - Page 17 User Manul for VoIP Phone 3.5.3 AN Settings: In this page you can configure the IP Phone WAN port’s setting. The WAN port is for you to connect to the ADSL Router, Broadband Router. Also you can use PPPoE to get the WAN IP address from your ISP. 3.5.3.1 The IP Phone’s default setting is NAT mode.
- Page 18 User Manul for VoIP Phone 3.5.4 LAN Settings: In this page you can configure the IP Phone LAN port’s setting. 3.5.4.1 The LAN port’s default IP address is 192.168.123.1, Net Mask is 255.255.255.0., and DHCP Server enabled. The start IP address if 150, end IP adress is 200. It is not necessary to change the LAN settings. 3.5.4.2 You can connect your PC to the LAN port, set your PC as DHCP Client mode, then you can get IP addreess from the TA.
- Page 19 User Manul for VoIP Phone 3.5.5 DDNS Setting: You can configure the DDNS setting in this page. You need to have the DDNS account and input the informations properly. You can have a DDNS account with a public IP address then others can call you via the DDNS account.
- Page 20 User Manul for VoIP Phone 3.5.6 VLAN Setting: You can set the VLAN setting in this page. There are two parts in this page. First one is to set the packets related to the TA, and the second parts is if you use the VLAN setting in the NAT Mode. 3.5.6.1 There are two kind of destination packets will come from the TA’s WAN port, one kind of packets will go to the TA, the other will go through the LAN port to the PC.
-
Page 21: Sip Settings
User Manul for VoIP Phone 3.6 SIP Settings 3.6.1 In SIP Settings you can setup the Service Domain, Port Settngs, Codec Settings, Codec ID Settings, RTP Setting, RPort Setting and Other Settings. If the VoIP service is provided by ISP, you need to setup the related informations correctly then you can register to the SIP Proxy Server correctly. - Page 22 User Manul for VoIP Phone 第 22 页 共 28 页 KAWA SCIENCE AND TECHNOLOGY CO.,LTD website: http://www.kawatel.com TEL：+86-755-89962209 FAX：+86-755-84272617 E_mail: info@kawatel.com...
- Page 23 User Manul for VoIP Phone 3.6.3 ort Settings: you can setup the SIP and RTP port number in this page. Each ISP provider will have different SIP/RTPport setting, please refer to the ISP to setup the port number correctly. When you finished the setting, please click the Submit button.
- Page 24 User Manul for VoIP Phone 3.6.5 odec ID Settings: you can set the Codec ID to meet the other device’s requirement. When you finished the setting, please click the Submit button. 3.6.6 DTMF Setting: you can setup the RFC2833 Out-Band DTMF, Inband DTMF and Send DTMF SIP Info in this page.
-
Page 25: Nat Trans
User Manul for VoIP Phone 3.6.8 ther Settings: you can setup the Hold by RFC, Voice/SIP QoS and SIP expire time in this page. To change these settings please following your ISP information. When you finished the setting, please click the Submit button. The QoS setting is to set the voice packets’... -
Page 26: Others
User Manul for VoIP Phone 3.8 Others. 3.8.1 In Others you can setup Auto Config and ICMP Setting function. The function can configure your VoIP Phone automatically. 3.8.2 Auto Config: you can setup the Auto Configuration Enable/Disable and auto configuration by FTP or TFTP. You need to select the way to do the Auto Configurationand set the Server IP address in this page. -
Page 27: Save Change
User Manul for VoIP Phone 3.10 ave Change 3.10.1 In Save Change you can save the changes you have done. If you want to use new setting in the VoIP Phone, You have to click the Save button. After you click the Save button, the VoIP Phone will automatically restart and the new setting will effect. -
Page 28: Reboot
User Manul for VoIP Phone 3.12 Reboot 3.12.1 Reboot function you can restart the VoIP Phone. If you want to restart the VoIP Phone, you can just click the Reboot button, then the VoIP Phone will automatically. 第 28 页 共 28 页 KAWA SCIENCE AND TECHNOLOGY CO.,LTD website: http://www.kawatel.com...
