Summary of Contents for METROSPEC MS22B

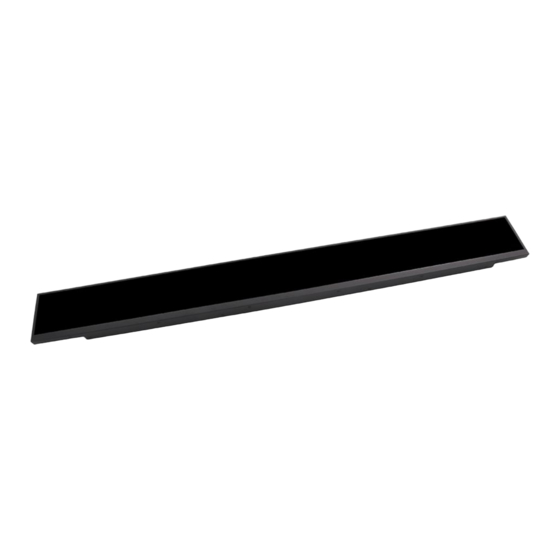

- Page 1 USER MANUAL Model: MS22B 22.9" Flat Panel Display (WiFi) Part No: MC-00002491 G229HAF02.0 V1.0...
-
Page 2: Table Of Contents
Table Of Contents SAFETY INSTRUCTIONS ............3 Declarations and Statements ............4 WHAT’S IN THE BOX ............5 Package Contents ................5 MOVING THE DISPLAY ............6 Unpacking the Display ..............6 Carrying the Display ................. 8 Placing the Display ................8 Setting Down the Display .............. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Please carefully read through and keep the following instructions for future reference before using the display. Before using the LCD display, please read this manual completely and follow the guidelines to protect your own and other people’s property and avoid causing serious injury. ... -
Page 4: Declarations And Statements
Declarations and Statements CE Class A statement: EU Declaration of Conformity We, AU Optronics Corporation, declare that this product complies with the following Directives: 2014/35/EU 2014/53/EU And the following standards have been applied: EN 60950-1:2006+A1:2010+A11:2009+A12:2011+A2:2013 EN 62311:2008 EN 300 328 V2.1.1 EN 301 489-1 V2.1.1 EN 301 489-17 V3.1.1 Important:... -
Page 5: What's In The Box
WHAT’S IN THE BOX Package Contents Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your display. The illustrations in this manual may differ from the actual product and items. Display x 1 Adapter x 1 Power Cord x 1... -
Page 6: Moving The Display
MOVING THE DISPLAY Unpacking the Display Before unpacking the display, prepare a flat and stable surface near a wall outlet. Set the product box in an upright position according to the arrow markings on the outside of the product box. Open the product box from the top side. - Page 7 Remove two displays, one by one, from the center compartment of the top layer. Remove the cardboard and EPE foam base of the top layer. Repeat steps 3 to 5 for the second layer. Repeat steps 3 to 4 for the third layer. Remove the electrostatic bags covering each display.
-
Page 8: Carrying The Display
Carrying the Display When carrying the display, always hold the display securely using both hands. When gripping the display do not put force to the screen. CAUTION: Avoid applying force or using sharp objects on the screen at all times. Placing the Display When placing the display, always put the screen face down as illustrated in the Setting Down the Display section. -
Page 9: Mounting The Display
MOUNTING THE DISPLAY Orienting the Display To avoid injuries, follow the installation instructions to safely install the display onto a wall. It is recommended to allow a certified installation company conduct the wall mounting operation. CAUTION: Dropping the display may cause injuries to people around it. NOTE: A wall mount may be purchased separately for easier installation. -
Page 10: Wireless Antenna
Wireless Antenna The display features an antenna on its top side used for Wi-Fi connections. When installing the display, please ensure that no objects are placed on the wireless antenna and that the area around the antenna is kept clear of any metal objects, devices, or equipment. Failure to do so will result in weak or possibly no wireless signal. -
Page 11: Setting Up The Display
SETTING UP THE DISPLAY Main Components The following image and table show the location of the connectors and other components. Item Description RESET button Press with a sharp-tipped instrument to restart the display. TYPE-C PWR IN Connects with the supplied adapter and power cord. (Power Input) M-USB Connects with storage devices containing video and image files, a... -
Page 12: Connecting The Power Cable
Connecting the Power Cable Connect the adapter to the display. Connect the power cord to the adapter. Fully insert the plug the power cord into the power outlet socket. Once the power connection is connection is made, the display will automatically power on. CAUTION: Loose connections may cause noise. -
Page 13: Connecting The Display
CONNECTING THE DISPLAY NOTE: Before making connections, make sure that the power for all the connected equipment is off and then powering on each device including the display after the connections are made. Using the Micro-USB Port Connect a USB-to-Micro-USB adapter or hub to the M-USB input port on display: Connect any of the following items to the USB-to-Micro-USB adapter or hub: ... -
Page 14: Connecting A Second Display
Connecting a Second Display Connect the supplied Type-C USB cable to the Type-C power output port on the display. Connect the supplied Micro-HDMI cable to the Micro-HDMI output port on the display. Connect the Type-C USB cable to the Type-C power input port on the second display. Connect the Micro-HDMI cable to the Micro-HDMI input port on the second display. -
Page 15: Connecting To Wireless Internet
Connecting to Wireless Internet After powering on the display you must follow the steps below to connect the display to a wireless router: Connect a mouse to the display. For connection details, see “Using the Micro-USB Port” on page 13. Click the All Apps button (arrow icon) at the bottom corner of the home screen to enter the All Apps menu. -
Page 16: Connecting To The Internet Via A Wired Connection
Connecting to the Internet via a Wired Connection The display features a built-in wireless antenna which allows it to wirelessly connect to the Internet. If you need to connect the display to a wired Internet connection you must follow the steps below after powering on the display to connect the display to a router: NOTE: It is not recommended to simultaneously connect the display to the Internet via both a wireless and a wired connection. -
Page 17: Home Screen
HOME SCREEN The home screen for the display features multiple buttons that allow you to navigate to apps and settings menus. SETTINGS You can adjust a number of the display’s settings by using the settings menu for the display. To access the settings menu: Connect a mouse and keyboard to the display. -
Page 18: Adjusting The Brightness
Adjusting the brightness To adjust the brightness of the display from the settings menu: Select Display in the Settings menu. Select Brightness level in the Display menu. Toggle the bar to adjust the brightness to the level you want. Adjusting the Brightness on a Second Display If you have connected a second display (as described in the “Connecting a Second Display”... -
Page 19: Changing The Display's Language
Changing the Display’s Language To change the language of the display from the settings menu: Select System in the Settings menu. Select Languages & input in the System menu. Select Languages in the Languages & input menu. Choose either one of the following: ... -
Page 20: Changing The Date And Time
Changing the Date and Time To change the date and time for the display: Select System in the Settings menu. Select Date & time in the System menu. By default the display is configured to automatically set its date and time via the network it is connected to, but in instances where the display’s date and time have been changed it may be necessary to re-enable the automatic date and time setting or manually change the date and time. -
Page 21: Installing Apps
Select INSTALL in the confirmation message that appears. The app will begin installing. Once the app has finished installing an App Installed message will appear. You can choose to open the app by selecting OPEN. For more information contact www.metrospec.com.au I sales@metrospec.com.au I +61 7 3868 4255...
