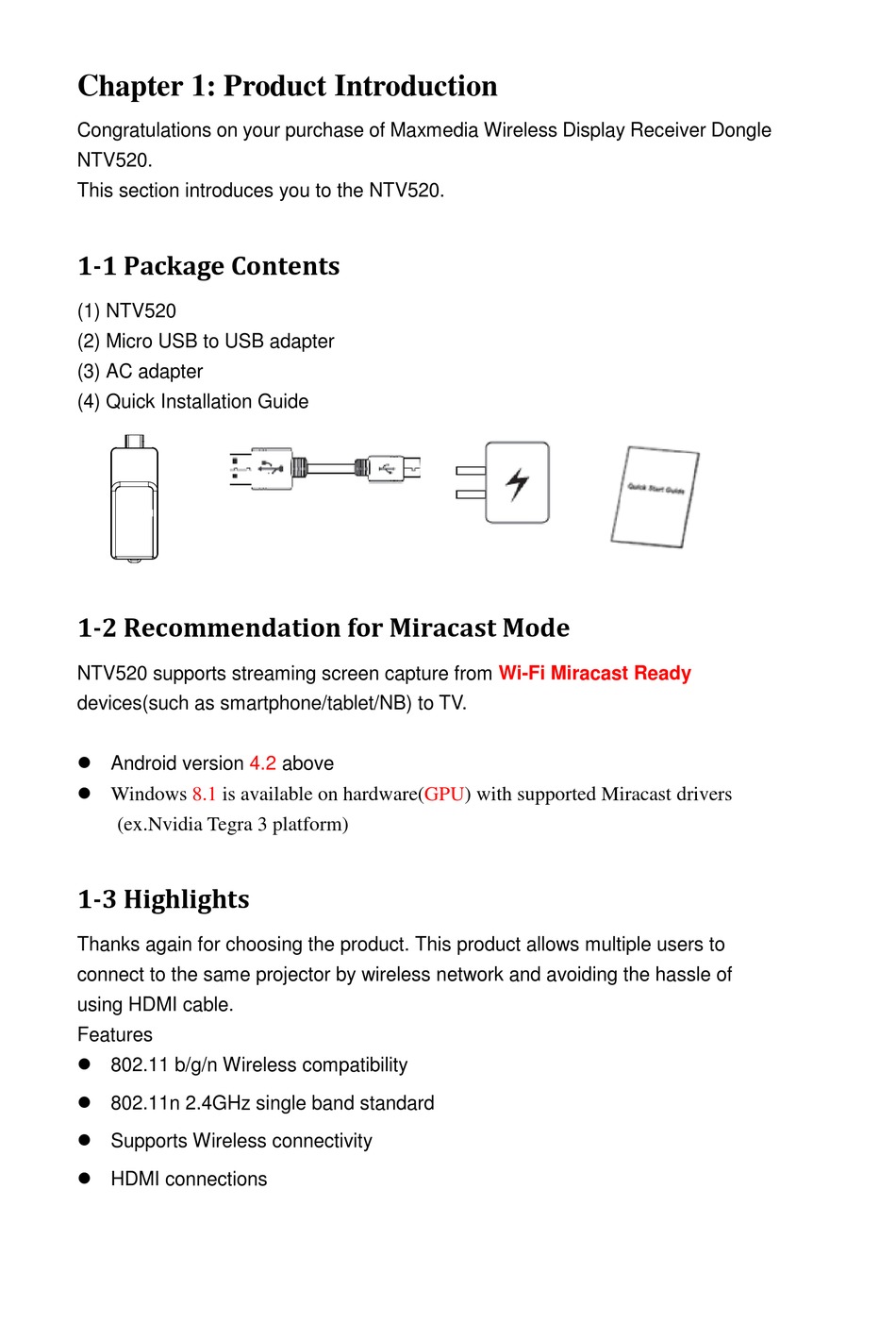

Chapter 1: Product Introduction
Congratulations on your purchase of Maxmedia Wireless Display Receiver Dongle
NTV520.
This section introduces you to the NTV520.
1-1 Package Contents
(1) NTV520
(2) Micro USB to USB adapter
(3) AC adapter
(4) Quick Installation Guide
1-2 Recommendation for Miracast Mode
NTV520 supports streaming screen capture from
Wi-Fi Miracast Ready
devices(such as smartphone/tablet/NB) to TV.
Android version
4.2
above
Windows
8.1
is available on hardware(GPU) with supported Miracast drivers
(ex.Nvidia Tegra 3 platform)
1-3 Highlights
Thanks again for choosing the product. This product allows multiple users to
connect to the same projector by wireless network and avoiding the hassle of
using HDMI cable.
Features
802.11 b/g/n Wireless compatibility
802.11n 2.4GHz single band standard
Supports Wireless connectivity
HDMI connections
Advertisement
Summary of Contents for Maxmedia NTV520
-
Page 1: Chapter 1: Product Introduction
Chapter 1: Product Introduction Congratulations on your purchase of Maxmedia Wireless Display Receiver Dongle NTV520. This section introduces you to the NTV520. 1-1 Package Contents (1) NTV520 (2) Micro USB to USB adapter (3) AC adapter (4) Quick Installation Guide... -
Page 2: Hardware Setup/Installation
Network security 1-4 Hardware Setup/Installation (1) Connect your device (2) Connect power to turn on NTV500 Chapter 2: Using NTV520 on Miracast Mode To connect NTV500 with WiFi Miracast mode, your smart phone or tablet device must be WiFi Miracast... - Page 3 Connect the dongle to the monitor,you will see the information “XXXXXXX ” “Please use your phone to connect to ” “XXXXXXX ” is the dongle name “P2P connected After connecting successes, you will see the message “XXXXXXXXX” ,IP:OOO.OOO.OOO.OOO” “XXXXXXXXX” is the device name.
- Page 4 In the below we will show the examples of how to find “miracast” in different smart phone. How to find “Miracast” function 1. HTC (New One) for example (1) “Settings” -> “Media Output” (2) The phone will automatically scan the streaming box, and show the IP address.
- Page 5 (4) Mirroring will begin while your phone connect to streaming box successfully. 2. Samsung (S3 & Note2) for example (1) “Settings” -> “More settings” (2) “AllShare Cast” (3) Turn “on” AllShare Cast . Your phone will scan the streaming box, and it will show the IP address of the box.
- Page 6 (4) Choose the IP address which you find on the TV, and your phone will connect to the boxautomatically. (5) Mirroring will begin while your phone connect to streaming box successfully. 3. SONY (Xperia TX) for example (1) “Settings” -> “Xperia” (2) “Screen mirroring”...
- Page 7 (4) Your phone will scan the streaming box, and it will show the IP address of the box. (5) Choose the IP address, mirroring will begin while your phone connect to streaming box successfully. 4. SHARP (SH-10D) for example (1) “Settings” -> “Wireless output”...
- Page 8 (2) Turn “on” (3) Your phone will scan the streaming box, and it will show the IP address of the box. (4) Choose the IP address which you find on the TV, and your phone will connect to the box automatically.
- Page 9 (5) Mirroring will begin while your phone connect to streaming box successfully. Appendex : Miracast Support List Module LG Nexus 4 LG P880 LG F-180 LG Optimus G LG Optimus G pro Sony Xperia TX Sony Xperia T Sony Xperia Z Sony Xperia V Samsung Galaxy S3 Samsung note 10.1 TBL...
- Page 10 HTC New One Rockchip 3188 tablets Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
