Summary of Contents for Mille Rolfe SRGF21626L

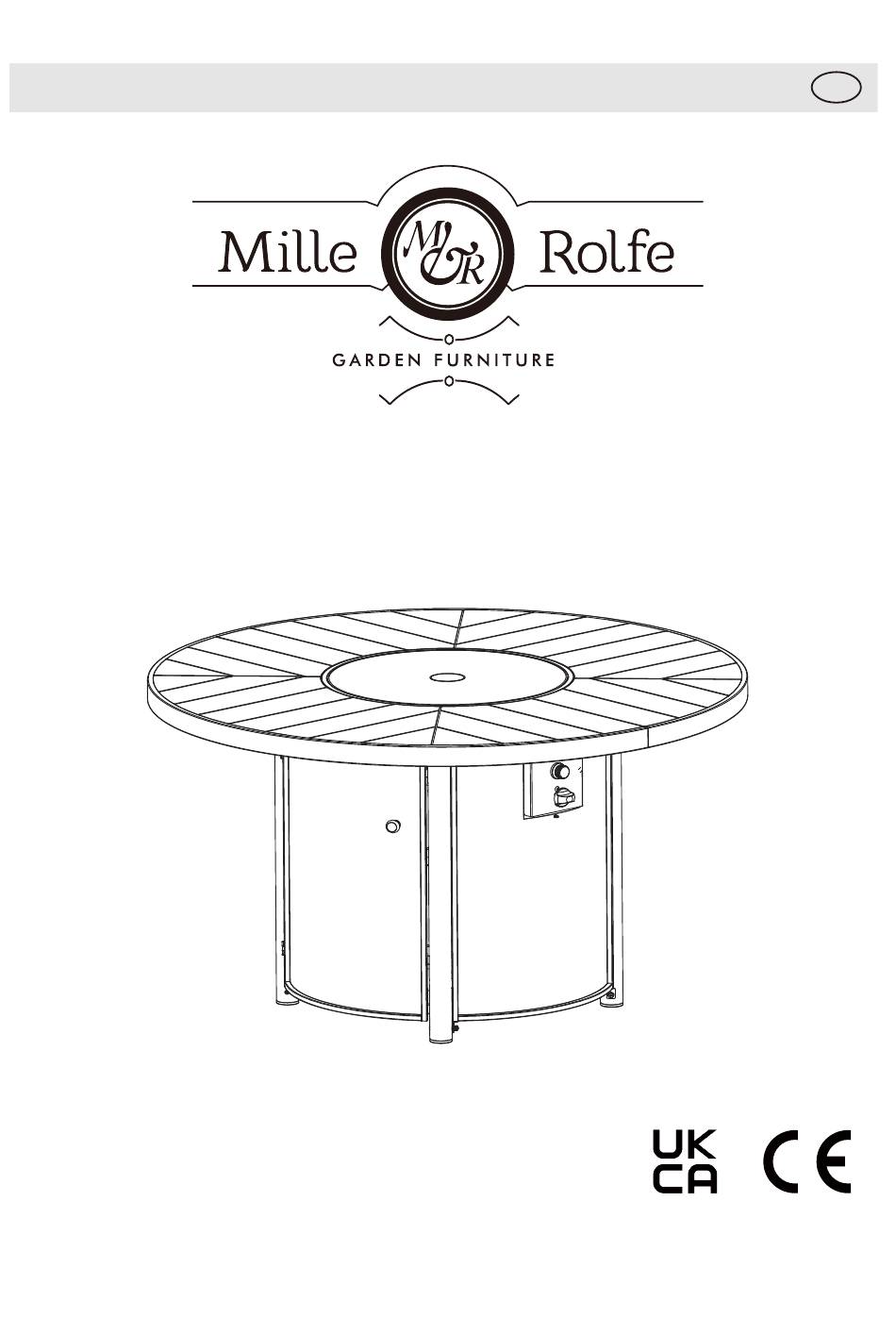

- Page 1 42" /106.7cm Stone Tabletop Rattan Gas Firepit Model No.: SRGF21626L Keep the instructions for future reference. 0063-20...
- Page 2 WARNING 1. For use outdoors or in amply ventilated WARNING: The use of this appliance in areas. enclosed areas can be dangerous and is 2. An amply ventilated area must have a mini- PROHIBITED. mum of 25% of the surface area open. WARNING: Read the instructions before 3.
-
Page 3: Technical Data
Technical data Country Category Nominal heat Injector Gas & Pressure input(Hs) consumption diameter(Ø) 15kW 1092 g/h(G30) 1.66mm G30 Butane and 3B/P(50) G31 Propane at 50mbar 15kW 1092 g/h(G30) 1.94mm G30 Butane and 3B/P(30) G31 Propane at 30mbar 15kW 1092 g/h (G30), 1.94mm Butane 3+(28-30/37) - Page 4 Number of people required to assemble Assembly instructions Two people Find a large, clean area to assemble your appliance. Please refer to the parts list and Time to assemble assembly diagram as necessary. Please use protective gloves when assem- bling this product. 45 minutes To avoid losing any small component or hardware, assemble your product on a hard...
-
Page 5: Further Information
Further information Important Notes: Connect LP Gas cylinder LPG cylinder not provided. The appliance is Before connecting, be sure that there is no designed to operate with a cylinder of size Ø debris caught in the head of the LP tank, head of the regulator valve or in the head 31.8 x 58 cm. - Page 6 Leak testing (to be performed in a well- ventilated area) Your Outdoor appliance has been checked for leaks at all the factory made connections. To check the connection of the gas hose/regulator/LPG cylinder. 1) Make leak test solution by mixing 1 part washing up liquid and 3 parts water.
- Page 7 Minimum clearance from combustible surfaces This appliance is primarily used for the heating of outdoor patios, decks, spas, pools and open working areas. Combustible materials are considered to be wood, compressed parter, plant fibres, plas- tic or other materials that are capable of being ignited and burned.
-
Page 8: Lighting Procedure
LIGHTING PROCEDURE OPERATING PROCEDURE Note: The burner may be noisy when initially 1. Make sure control knob is in the "OFF" position. turned on, To eliminate excessive noise from 2. Turn LP cylinder gas the burner, turn the control knob to the LOW position. -
Page 9: Cleaning And Maintenance
STORAGE Cleaning and maintenance To enjoy years of outstanding performance Between uses: from your gas fire pit make sure you perform Turn the control knob to "OFF" position. the following maintenance activities on a Turn LP cylinder to OFF position. regularbasis: Allow at least 45 minutes for the fire pit to cool down after use, then disconnect and... -
Page 10: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE MEASURES OBSERVED Gas odor Gas leak Check all gas connections Check gas supply pressure. Low gas pressure. Delayed ignition Clean burner parts--see manual. Clogged or dirty burner ports. "CLEANING AND MAINTENANCE" section. Incorrect burner Incorrect gas supply or pressure. Check gas supply pressure. -
Page 11: Parts List
PARTS LIST ITEM DESCRIPTION ITEM DESCRIPTION BOTTOM HOLDER ASSEMBLY SIDE PANEL TABLE TOP ASSEMBLY FRONT PANEL DOOR PANEL LEG WITH BRACKET DOOR KNOB CYLINDER SUPPORT TUBE LAVA ROCK HORIZONTAL CYLINDER SUPPOR TUBE HARDWARE LIST ITEM DESCRIPTION M6X14 BOLT ASSEMBLY M5X14 BOLT ASSEMBLY SELF-TAPPING SCREW ST4.2X9.5 CROSS GROOVE FLAT ROUND SCREW M5X20... - Page 12 Step 1 The side without hole is outward QTY. FIG. ITEM DESCRIPTION M6 14 Step 2 hole The side without hole is outward QTY. FIG. ITEM DESCRIPTION M6 14...
- Page 13 Step Attach two cylinder support tubes (E) to four legs with four M5X14 bolt assemblies (BB). Attache the bottom holder assembly (G) to leg (C) and leg with bracket (D) with two M5X14 bolt assemblies (BB). Attach the horizontal cylinder support tube (F) to two cylinder support tubes (E) with cross groove flat round screws M5X20 (DD).
- Page 14 Step 4 side ITEM DESCRIPTION M5X14 BOLT ASSEMBLY ITEM DESCRIPTION M5X14 BOLT ASSEMBLY...
- Page 15 Step ITEM DESCRIPTION M5X14 BOLT ASSEMBLY...
- Page 16 Step ITEM DESCRIPTION SELF-TAPPING SCREW ST4.2X9.5...
- Page 17 Step 7 Step 8 WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury. Battery Battery Compartment Cap...
