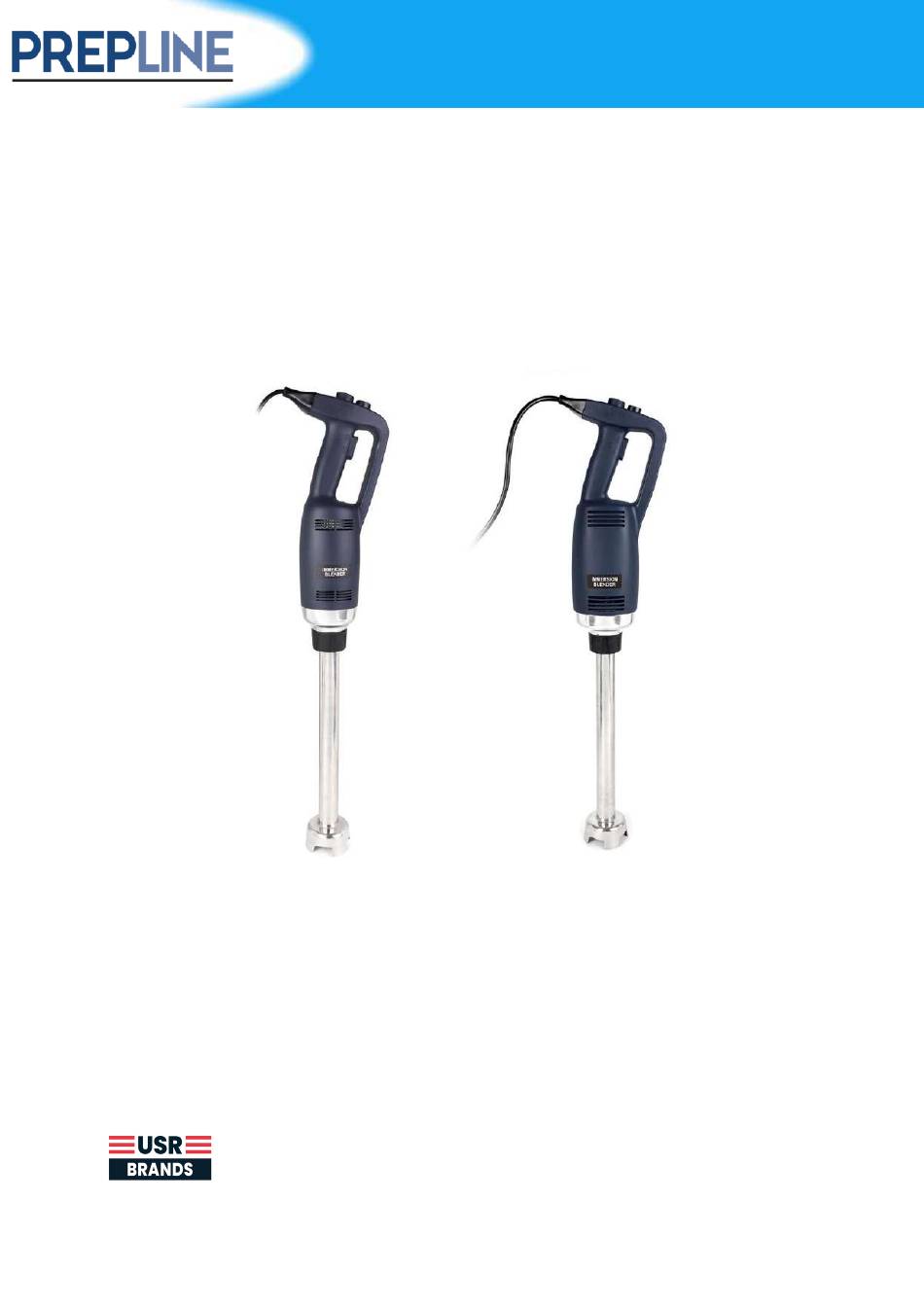

- Page 1 USER MANUAL IMMERSION BLENDER MODEL: PIB500-12, PIB500-16, PIB500-20, PIB750-12, PIB750-16, PIB750-20 USR Brands, Inc. Phone: 800-764-1172 | www.usrestaurant.com | sales@usrestaurant.com USRESTAURANT® RESERVES THE RIGHT TO CHANGE SPECIFICATIONS WITHOUT NOTICE...
-
Page 2: Intended Use
Keep these instructions with the appliance. You should read this user manual carefully before using the appliance. Dear Customer, Thank you for purchasing this appliance. Please take a few minutes before starting operation of the appliance and read the following operating instructions. 1. - Page 3 power cord is damaged, it must be replaced by a service agent or similarly qualified persons in order to avoid danger or injury. 2.1.11 Make sure the cord does not come in contact with sharp or hot objects and keep it away from open fire.
-
Page 4: Product Description
2.2.8 This appliance is not intended to be operated by means of an external timer or separate remote-control system. 2.2.9 Never bypass any safety interlocks on the appliance. 2.2.10 WARNING: ALWAYS switch off the appliance and unplug from electrical power supply before cleaning, maintenance or storage. - Page 5 3.2 MAIN TECHNICAL PARAMETERS Voltage Diame Model Power Speed (Length, (Diameter, Supply Weight 4000~16000 Ø 35 PIB500 500W 5.07 lb. 373 mm Ø 96 mm 100-120V 8000~20000 Ø 35 60Hz PIB750 750W 6.22 lb 396 mm Ø 116mm 4 INTRODUCTION Preparation for first use 4.1.1 Check to make sure the appliance is undamaged.
-
Page 6: Installation
rating plate. 4.1.7 Make sure that the machine is connected to a grounding system if it’s needed. 4.1.8 Even if safety systems are installed on the machine, prevent approaching moving parts with hands and do not touch the machine with wet or damp hands. 4.1.9 Warning! When the whisk is used, make sure to start appliance with low speed. -
Page 7: Continuous Operation
4.4.1.2 After unpacking all accessories, read the manual carefully before installation. 4.4.1.3 Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage, do not use the appliance but contact your dealer. -
Page 8: Assembling / Dismantling
we recommend that you move the whisk around in the bowl, in order to ensure that the mixture is completely homogeneous. We strongly advise you to keep the whisk from touching the sides of the bowl. For Maximum efficiency, at least one-fifth of the whisk length should be immersed. - Page 9 4.6.3 Blender tube and bell cleaning: Place the tube and bell into a suitable container with water and switch on for a few seconds to clean the bell and tube. WARNING: Always dry the blades thoroughly after cleaning to avoid spotting. 4.6.4 Never immerse the whisk holder in water, clean it with a slightly damp cloth or sponge.
-
Page 10: Circuit Diagram
Circuit diagram USRESTAURANT® RESERVES THE RIGHT TO CHANGE SPECIFICATIONS WITHOUT NOTICE... -
Page 11: Exploded View And Spare Parts Lists
Exploded view and spare parts lists MODEL: PIB500 Name Name Motor Rubber push sheath Air deflector Interlocking push bolt Spring Motor cover Switch Interlocking push bolt Pressing board Interlocking push bolt Spring Cable sheath Housing Power cord Speed control board Rubber interlocking protector Switch osculant staff Screw plunger... - Page 12 MODEL: PIB750 spare parts lists USRESTAURANT® RESERVES THE RIGHT TO CHANGE SPECIFICATIONS WITHOUT NOTICE...
- Page 13 MODEL: PIB-STCK-12 PIB-STCK-16 PIB-STCK-20 Name Name Name Spline Output axis Graphite ring Spline seal ring 304 S/S tube Graphite ring spring Connect sleeve seal ring Bearing sleeve Convex ring Connect sleeve Knife protector Smooth blade Fastening sleeve Ceramic ring sleeve Oil Sealing 608 Bearing Ceramic ring...
- Page 14 MODEL: PWIK10 USRESTAURANT® RESERVES THE RIGHT TO CHANGE SPECIFICATIONS WITHOUT NOTICE...
