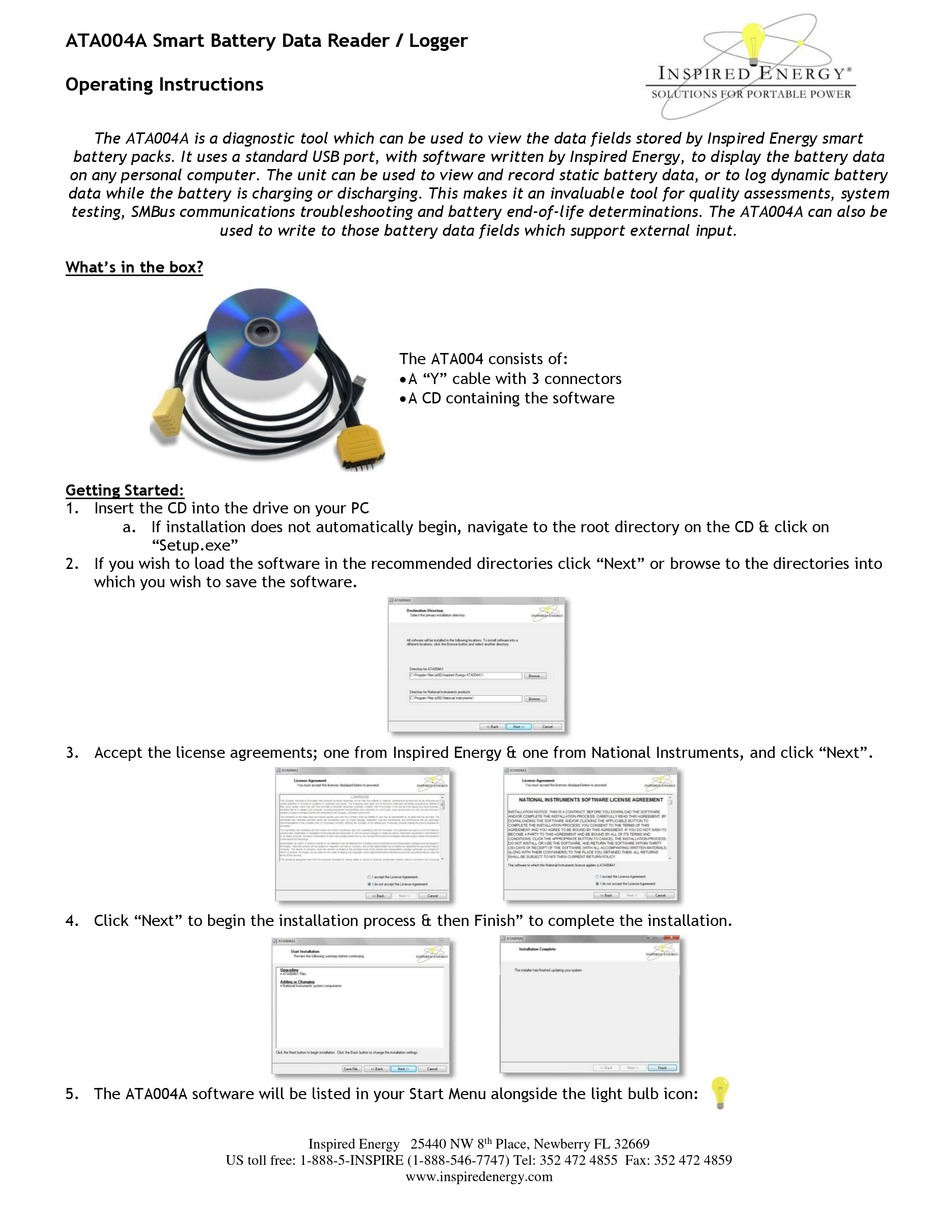

ATA004A Smart Battery Data Reader / Logger
Operating Instructions
The ATA004A is a diagnostic tool which can be used to view the data fields stored by Inspired Energy smart
battery packs. It uses a standard USB port, with software written by Inspired Energy, to display the battery data
on any personal computer. The unit can be used to view and record static battery data, or to log dynamic battery
data while the battery is charging or discharging. This makes it an invaluable tool for quality assessments, system
testing, SMBus communications troubleshooting and battery end-of-life determinations. The ATA004A can also be
used to write to those battery data fields which support external input.
What's in the box?

Getting Started:

1. Insert the CD into the drive on your PC
a. If installation does not automatically begin, navigate to the root directory on the CD & click on
"Setup.exe"
2. If you wish to load the software in the recommended directories click "Next" or browse to the directories into
which you wish to save the software.
3. Accept the license agreements; one from Inspired Energy & one from National Instruments, and click "Next".
4. Click "Next" to begin the installation process & then Finish" to complete the installation.
5. The ATA004A software will be listed in your Start Menu alongside the light bulb icon:
US toll free: 1-888-5-INSPIRE (1-888-546-7747) Tel: 352 472 4855 Fax: 352 472 4859
The ATA004 consists of:
 A "Y" cable with 3 connectors
 A CD containing the software
Inspired Energy 25440 NW 8
www.inspiredenergy.com
th
Place, Newberry FL 32669
