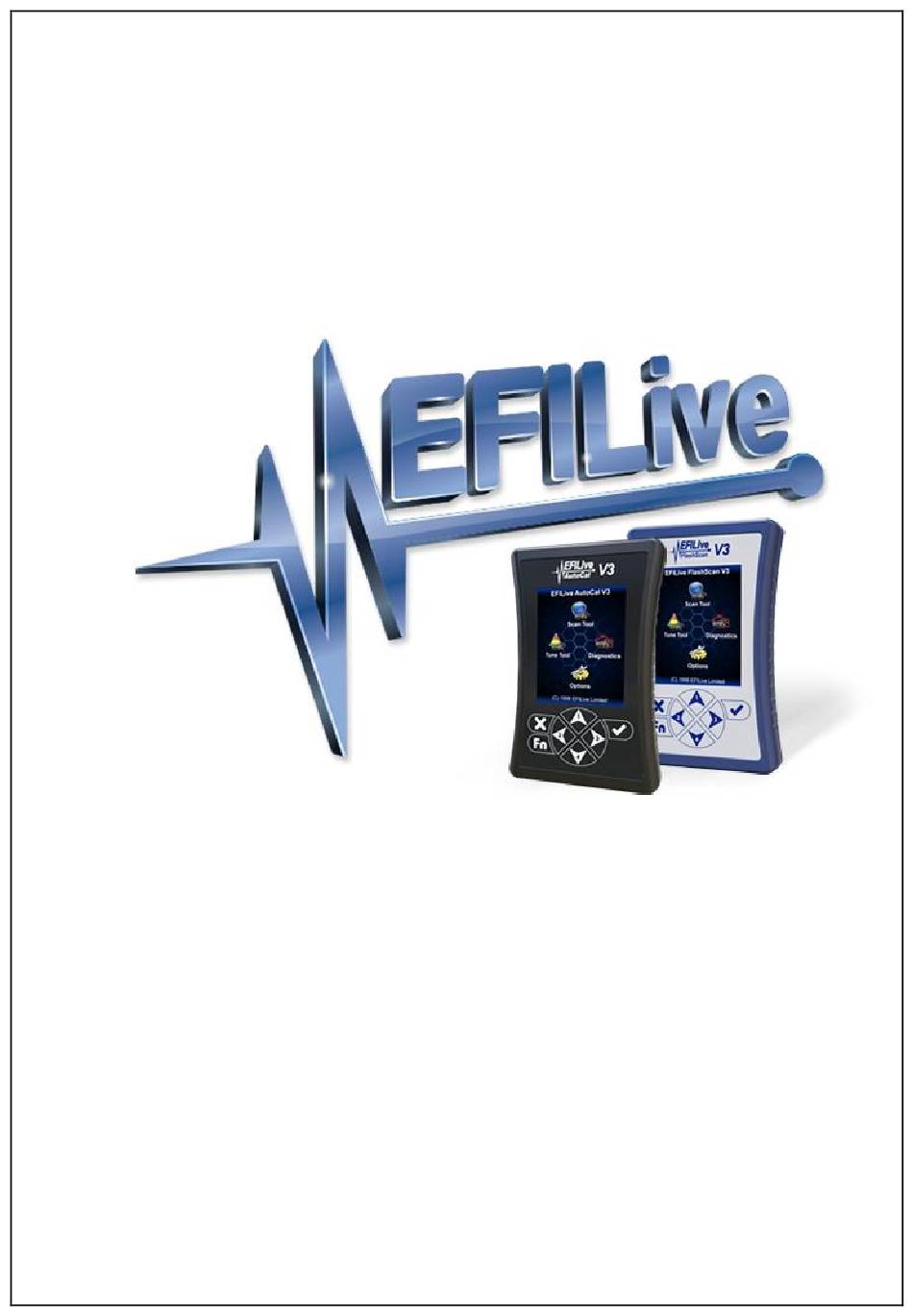

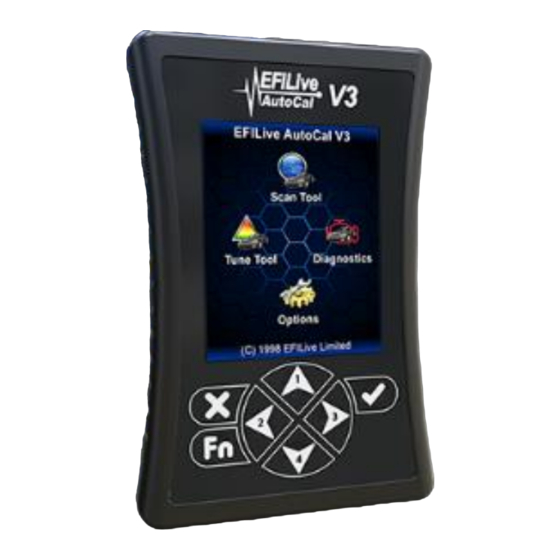

  • Page 1 Cummins 6.7L CM2100A CSP User Guide Cindy Myers...
  • Page 2 Cummins 6.7L CM2100A CSP User Guide © 1998 EFILive Limited All rights reserved First published 14 August 2014 Revised 8 July 2021 EFILive, EFILive FlashScan and EFILive AutoCal are registered trademarks of EFILive Limited. All other trademarks belong to their respective owners.

  • Page 3: Table Of Contents

    Cummins 6.7L CM2100A CSP5User Guide Contents ......................4 Prerequisites ........................4 Intended Audience ....................... 4 Computer Knowledge ....................4 Tuning Knowledge ....................... 4 ...................... 5 Introduction ........................5 What is EFILive? ......................5 What is EFILive CSP ? ....................5 Software Version Overview ..................
  • Page 4 Cummins 6.7L CM2100A CSP5User Guide V8 Scan and Tune Scan ....................12 Pass-Thru Data Logging .................... 12 Pass-Thru Licence and Flash a Controller ..............13 ......................15 Configure FlashScan/AutoCal for BBX ................15 EDA Data Logging ..................... 15 Configure Tuning ......................16 Tune File Switching ....................
  • Page 5 Cummins 6.7L CM2100A CSP5User Guide Flash Base with without tune file security restrictions..........23 ROM Boot Recovery ....................23 Test for Rogue Modules ..................... 23 Trace Files ......................... 23 V8 Scan and Tune *.htx files .................. 23 FlashScan/AutoCal V3 *.xalm files ................. 24 FlashScan V2 Trace Files ..................

  • Page 6: Prerequisites

    Cummins 6.7L CM2100A CSP5User Guide Prerequisites Intended Audience EFILive Customers using the V8 Scan and Tune Tool software. Computer Knowledge It is expected that readers have a basic understanding of:  The Windows operating system;  Starting and using Windows applications;...

  • Page 7: Introduction

    Introduction What is EFILive? EFILive is tuning software and hardware - it is not a tune. Together the software and hardware give users the tools to write tunes. EFILive does not provide tune files, tuning advice or support, but do provide software support and hardware support.

  • Page 8: Software Version Overview

    This version of the Cummins 6.7L CM2100A CSP User Guide migrates all processes to EFILive V8 Scan and Tune software. Functionality is still available in V7.5 software, however software support and bug fixes will cease in 2021. FlashScan/AutoCal V3 and AutoCal V2 are not compatible with V7 software. V7 functions are only supported by FlashScan V2.

  • Page 9: Csp 5 Upgrade

    2015; released 5 years after this ECM type was introduced. EFILive will not be offering CSP on older, obscure or obsolete OS's. No further EFILive development is scheduled for the Dodge Cummins CMC platform.
  • Page 10 'My Truck Base CSP5 Conversion.ctz’. 8. Close the tune file. 9. On the EFILive V8 Scan and Tune Recent Items list you will see your stock tune and your upgraded CSP tune. Confirm that the operating system number on the base file is different to the upgraded CSP converted file.

  • Page 11: Tune Switch Password

    It should be noted that not all switching devices may support this function, however EFILive's own FlashScan and AutoCal hardware does. To enable the tune switch password, users need to input their chosen password in the calibration.

  • Page 12: Csp 5 Tune 6 - Switch Via Ecm Input

    Cummins 6.7L CM2100A CSP5User Guide The output is on (Connector #2, Pin 55), when turned on the ECM applies 12V to this output, so if you are wiring in a relay or lamp the other wire needs to be connected to Negative (Ground).

  • Page 13: Supported Switching Methods

    FlashScan/AutoCal V3, FlashScan/AutoCal V2, and the SoCal Diesel CSP switch and the Starlite Diesel StarLog. EFILive recommends that customers confirm that their chosen integration product is approved for use. To setup an approved integration product, users should: 1. Convert their base file to a CSP operating system, as described in this document.

  • Page 14: V8 Scan And Tune Scan

    Pass-Thru Data Logging To log data using FlashScan or AutoCal and V8 Scan and Tune software; 1. Open the EFILive V8 Scan and Tune. 2. Connect your FlashScan/AutoCal device to your PC and vehicle. 3. Turn the vehicle ignition to the On position.

  • Page 15: Pass-Thru Licence And Flash A Controller

    Pass-Thru Licence and Flash a Controller Follow these steps to license and flash the selected controller. 1. Open the EFILive Scan and Tune application. 2. Connect your FlashScan/AutoCal to your PC and your vehicle. 3. Turn the vehicle ignition to the On position, (not the Accessory position.
  • Page 16 Cummins 6.7L CM2100A CSP5User Guide If you experience flash failures when using Unlimited Fast Can or Fast CAN, try unchecking that option and retry the flash. 9. Click on the Check License button. This will indicate if the controller is already licensed or needs to be licensed.

  • Page 17: Configure Flashscan/Autocal For Bbx

    Follow these instructions to configure your FlashScan or AutoCal for BBX. 1. Connect your FlashScan or AutoCal to your PC. 2. Open the EFILive V8 Scan and Tune application. 3. Select the [F5: BBX] option in the left-hand pane. EDA Data Logging...

  • Page 18: Configure Tuning

    Cummins 6.7L CM2100A CSP5User Guide MUST select the entire EDA PID Group and flash a CSP5 operating system into the ECM for effective data logging. Configure Tuning To configure flashing for your chosen controller on your FlashScan/AutoCal; 1. Select the [F3: Tune] option in the left-hand pane.
  • Page 19 Cummins 6.7L CM2100A CSP5User Guide 1. Select the [F6: Quick Setup] option in the left-hand pane. 2. Select appropriate BBX configuration options. 3. Edit device settings as necessary. To automatically select the most recently used controller and PID selection when FlashScan/AutoCal powers up: a.

  • Page 20: Flashscan Menu Navigation

    Cummins 6.7L CM2100A CSP5User Guide FlashScan Menu Navigation FlashScan/AutoCal V3 FlashScan/AutoCal V3 supports two menu structures; the EFILive standard menu and the user defined menu. Where a used defined menu is not installed, the EFILive standard menu will be displayed.

  • Page 21: Switch Tunes Using Flashscan/Autocal V3

    Cummins 6.7L CM2100A CSP5User Guide 1. Turn the vehicle ignition Off. 2. Click on the Start button to begin the countdown timer. 3. DO NOT turn the vehicle ignition on until the countdown timer expires. This time is critical to allow the ECM to perform internal, initialization functions after a read or flash operation.

  • Page 22: License And Flash A Controller

    Cummins 6.7L CM2100A CSP5User Guide 5. Select Cancel, to stop data logging and save the logged data. 10. Start the vehicle and drive to record actual performance. Do not attempt to operate a FlashScan/AutoCal device while your vehicle is in motion.
  • Page 23 Cummins 6.7L CM2100A CSP5User Guide 6. Press OK to make a tune selection. 7. You do not need to reselect the tune once the engine is shut down; the ECM 'remembers' which tune you previously selected. - 21 - support@efilive.com...

  • Page 24: Support

    Do not correct the checksums unless you know the tune file was modified outside of the EFILive software and that the modifications are correct and accurate. If you correct the checksums of a file with corrupt data you are merely masking corruption.

  • Page 25: Failed Flash Recovery Methods

    To manually generate a trace file, generate the error in V8 software, then open the EFILive Control Panel and navigate to [F8: Trace] and select [Save Trace]. Users can set the trace file and save location during this process.
  • Page 26 Therefore you MUST save the trace file before powering off or rebooting the device. Trace files are located in the EFILive -> Trace folder on FlashScan/AutoCal V3. Trace files are named using the following naming convention: yyyymmdd_hhnnss_<desc>.xalm, where:...
  • Page 27 EFILive support related inquiries. How to Tune? EFILive is tuning software and hardware - it is not a tune. Together the software and hardware give users the tools to write tunes. EFILive does not provide tune files, tuning advice or support, but do provide software support and hardware support.
