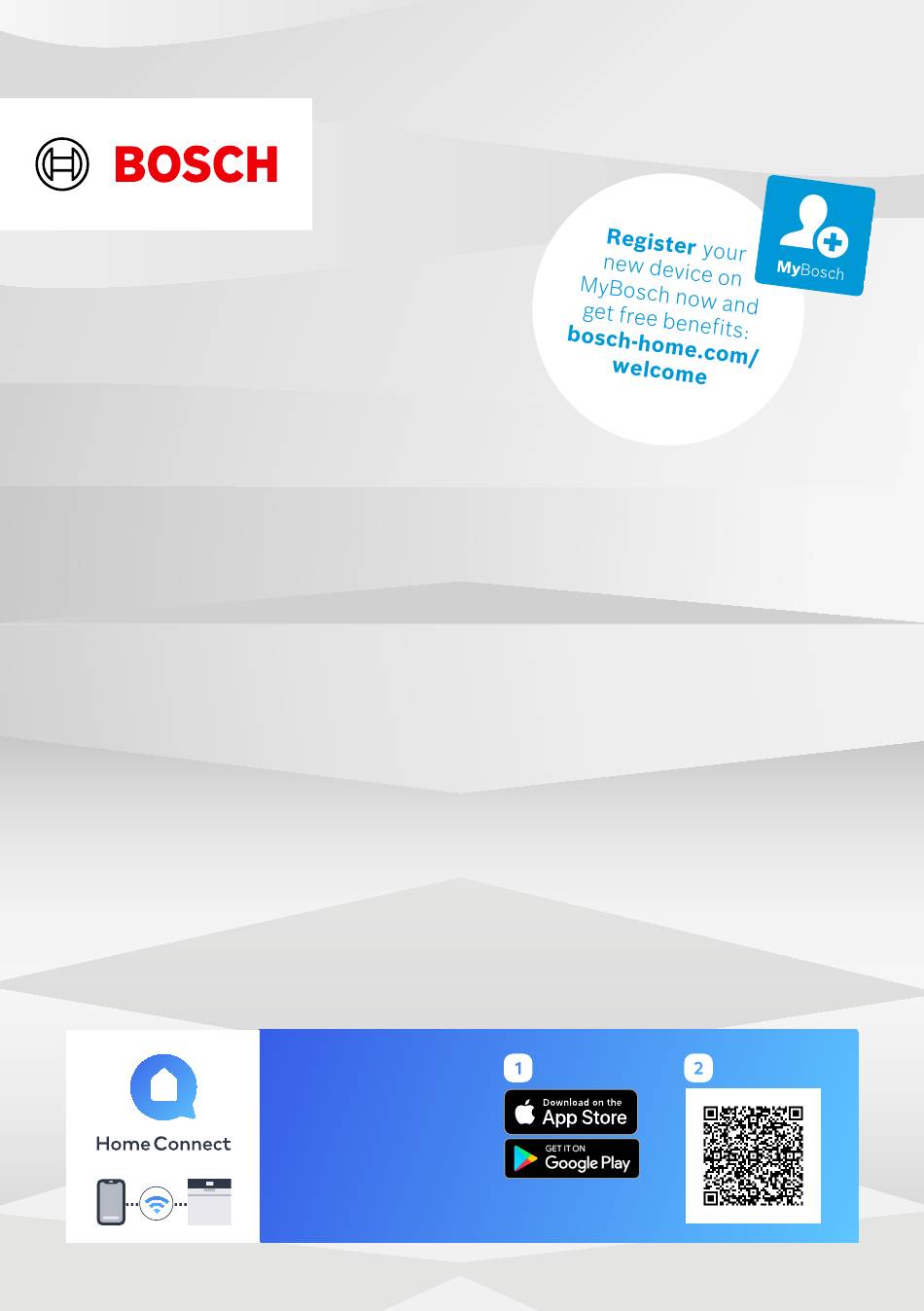

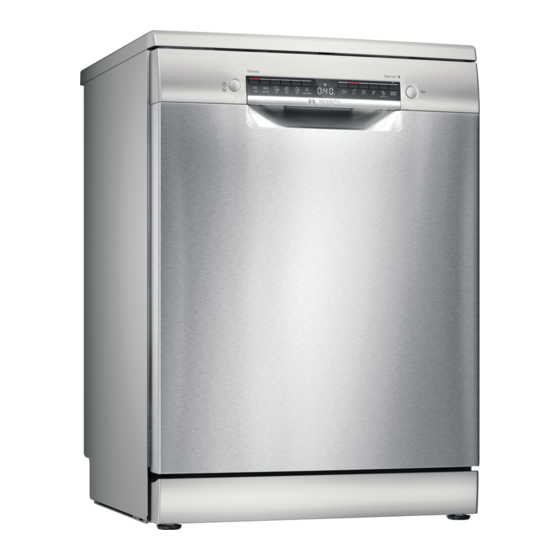

- Page 1 Dishwasher SMS4IMI62T [en] Information for Use Connect Get the app Scan QR code your dishwasher with Home Google Play and the Google Play logo are trademarks of Google Connect today! LLC. Apple and the Apple logo are trademarks of Apple Inc.
-
Page 2: Table Of Contents
Futher information and explanations are available online: Table of contents 1 Safety ........... 4 8.2 Etagere ........ 22 1.1 General information.... 4 8.3 Bottom basket ...... 22 1.2 Intended use...... 4 8.4 Folding prongs ...... 22 1.3 Restriction on user group.. 4 8.5 Cutlery drawer ...... - Page 3 14 Basic operation ....... 32 21 Technical specifications.. 50 14.1 Switching on the appliance ... 32 21.1 Information regarding Free and Open Source Software... 50 14.2 Setting a programme .... 32 14.3 Setting additional functions ... 32 22 Declaration of Conformity .. 51 14.4 Setting timer programming ...
-
Page 4: Safety
en Safety 1 Safety Observe the following safety instructions. 1.1 General information ¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.2 Intended use Only use this appliance: ¡... - Page 5 Safety en WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. ▶ Connect and operate the appliance only in accordance with the specifications on the rating plate. ▶ Always use the supplied power cable for the new appliance. ▶ Connect the appliance to a power supply with alternating cur- rent only via a properly installed socket with earthing.
-
Page 6: Safe Use
en Safety WARNING ‒ Risk of burns! If the appliance is not installed properly, this may result in burns. ▶ With free-standing appliances, ensure that they are installed with the back panel against a wall. 1.5 Safe use WARNING ‒ Risk of serious harm to health! Failure to comply with safety instructions and directions for use on packagings of detergent and rinse aid products may cause seri- ous harm to health. -
Page 7: Damaged Appliance
Safety en WARNING ‒ Risk of scalding! If you open the appliance door while the programme is running, hot water may splash out of the appliance. ▶ Open the appliance door carefully if the programme is still run- ning. WARNING ‒ Risk of tipping! Overfilling the Baskets may cause the appliance to tip up. ▶... -
Page 8: Risk To Children
en Safety ▶ Only use genuine spare parts when repairing the appliance. ▶ If the power cord of this appliance is damaged, it must be re- placed with a special connection cable, which is available from the manufacturer or his Customer Service. 1.7 Risk to children WARNING ‒ Risk of suffocation! Children may put packaging material over their heads or wrap... - Page 9 Safety en ▶ Keep children away from the appliance when open. The water in the interior of the dishwasher is not drinking water. It may con- tain residues of detergents and rinse aid. WARNING ‒ Risk of injury! Children may get their fingers caught in the slots of the tablet col- lecting tray and injure themselves.
-
Page 10: Preventing Material Damage
en Preventing Modified or damaged water hoses Preventing 2 Preventing material may result in material damage and damage to the appliance. damage Never kink, crush, modify or cut ▶ through water hoses. Preventing 2.1 Safe installation Only use the water hoses supplied ▶ with the appliance or genuine ATTENTION! spare hoses. -
Page 11: Environmental Protection And Saving Energy
Environmental protection and saving energy en So as not to scratch the finish on ▶ 4 Installation and con- the appliance, do not use sponges with a rough surface or abrasive nection cleaning agents. To prevent corrosion, do not use To ensure proper operation, connect ▶... -
Page 12: Drainage Connection
en Installation and connection installing it under a continuous work- 4.4 Drinking water connec- top that is securely connected to ad- tion jacent cabinets. Follow the safety instructions. Connect your appliance to a drinking → Page 4 water connection. Follow the instructions for electrical Installing the drinking water connection. -
Page 13: Familiarising Yourself With Your Appliance
Familiarising yourself with your appliance en 5 Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the parts of your appliance here. Rating plate Rating plate with E number and FD num- ber → Page 49. The data you need for Customer Service → Page 48. - Page 14 en Familiarising yourself with your appliance Detergent dispenser Add detergent to the detergent dispenser. → "Detergent", Page 27 Bottom basket Bottom basket → Page 22 Dispenser for special salt Add special salt to the dispenser for spe- cial salt. → "Water softening system", Page 24 Lower spray arm The lower spray arm washes the table- ware in the bottom basket.
-
Page 15: Controls
Familiarising yourself with your appliance en 5.2 Controls You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. With some buttons you can perform different functions. 3 4 5 6 7 ON/OFF button and reset Switching on the appliance... -
Page 16: Programmes
en Familiarising yourself with your appliance Programme buttons and addi- Programmes tional functions → "Programmes", Page 17 Additional functions → "Additional functions", Page 20 Remote Start → "Remote Start ", Page 37 Timer programming Setting timer programming → Page 33 Display The display shows information about the remaining running time or the ba- sic settings. - Page 17 Programmes en 6 Programmes You can find an overview of the pro- ted. The running time will change if grammes that can be selected here. the rinse aid system is switched off Different programmes, which can be or rinse aid needs to be added. found on the control panel of your The consumption values can be appliance, are available depending...
-
Page 18: Information For Test Institutes
en Programmes Programme Programme se- quence Tableware: Time-optimised: ¡ Delicate tableware, cutlery, tem- ¡ Cleaning 45 °C Express 45° perature-sensitive plastics and ¡ Intermediate rinse glasses ¡ Final rinse 55 °C Level of soiling: ¡ Lightly adhering fresh food rem- nants → "Favourite ", Page 18 Favourite Note: The relatively long running time The pre-rinse program is saved to... - Page 19 Programmes en Tip: To reset the programme to the pre-rinse programme stored at the factory, use the Home Connect app or reset your appliance to the factory settings. Depending on the appliance specifications...
- Page 20 en Additional functions 7 Additional functions You can find an overview of the additional functions that can be selected here. Different additional functions, which can be found on the control panel of your appliance, are available depending on the appliance configuration. You can se- lect certain additional functions depending on the programme.
-
Page 21: Features
Features en Press in the levers on the right and 8 Features left on the outside of the basket. You can find an overview of the pos- sible features of your appliance and how to use them here. These features depend on the model of your appliance. -
Page 22: Etagere
en Features 8.2 Etagere Use the cutlery shelf and space un- derneath for small cups and glasses or for large items of cutlery, e.g. cooking spoons or serving cutlery. 8.4 Folding prongs Use the folding prongs to position tableware securely, e.g. plates. If you do not need the cutlery shelf, you can fold it up. -
Page 23: Cutlery Drawer
first time en Push the lever forwards and fold first time 9 Before using for the down the prongs . first time first time 9.1 Performing the initial con- figuration On initial start-up or after a reset to the factory settings, you will need to make settings. -
Page 24: Water Softening System
en Water softening system To ensure good dishwashing results, 10 Water softening sys- you can treat the water with special salt and the water softening system. To avoid damage to the appliance, water with a hardness above 9 °E Hard water leaves limescale on the must be softened. -
Page 25: Special Salt
Water softening system en To save the settings, press Note: Only use special salt for for 3 seconds. dishwashers. Do not use salt tablets. Do not use table salt. 10.3 Special salt Add the special salt to the dis- You can use special salt to soften penser. -
Page 26: Regeneration Of The Water Softening System
en Rinse aid system ¡ The water hardness is 0 - 8 °E. Additional power consump- 0.05 You do not need to use special tion in kWh salt. The consumption values specified Press . are laboratory measurements determ- To open the basic settings, press ined in accordance with the currently for 3 seconds. -
Page 27: Setting The Amount Of Rinse Aid
Detergent en Add rinse aid up to the max mark. To save the settings, press for 3 seconds. 11.3 Switching the rinse aid system off If you find the rinse aid refill indicator irritating, e.g. when using combined detergents with a rinse aid compon- ent, you can switch the rinse aid sys- tem off. -
Page 28: Unsuitable Detergents
en Detergent starch and remove protein. Oxygen- With powder and liquid detergent the based bleaching agents are generally dosage can be individually adjusted used to remove coloured marks, e.g. to the level of soiling of the table- tea or ketchup. ware. For better washing and drying results Note: Follow the manufacturer's in- and to avoid damage to the appli-... -
Page 29: Information On Detergents
Detergent en Add the detergent to the dry deter- 12.3 Information on deter- gent dispenser. gents Follow the instructions on detergents 50 ml in everyday use. 25 ml ¡ Detergents marked as "organic" or 15 ml "ecological" (environmentally friendly) generally contain lower levels of active agents or com- pletely dispense with certain sub- stances. -
Page 30: Tableware
en Tableware Close the lid of the detergent dis- 13.1 Damage to glass and penser. tableware Only put glasses and china in the dishwasher if it is marked as dish- washer-safe by the manufacturer. Avoid damage to glass and table- ware. Cause Recommenda- tion The following... -
Page 31: Arrange Tableware
Tableware en ¡ For better washing and drying res- Cause Recommenda- ults, position items with curves or tion recesses at an angle so water can Highly caustic al- If you are using run off. kaline or highly highly caustic al- acidic cleaning kaline or highly solutions, in par- acidic cleaning... -
Page 32: Removing Tableware
en operation The Eco 50° programme is an es- pecially environmentally friendly programme and ideal for normally soiled tableware. It is the most effi- cient programme for the combina- tion of energy/water consumption for this type of tableware and evid- ences conformity with the Eco- design Directive. -
Page 33: Setting Timer Programming
operation en a The button lock is activated and 14.4 Setting timer program- will be automatically deactivated at ming the end of the programme. a When the appliance is operated, You can delay the start of the pro- flashes on the display. gramme by up to 24 hours. - Page 34 en operation To prevent damage from dripping water, turn the water tap off tight (not applicable to appliances with Aqua-Stop). Tip: If you press during the wash cycle, the programme currently run- ning will be interrupted. When you switch the appliance back on, the programme continues automatically.
-
Page 35: Basic Settings
Basic settings en 15 Basic settings You can configure the basic settings for your appliance to meet your needs. 15.1 Overview of the basic settings The basic settings depend on the features of your appliance. Basic setting Display text Selection Description Water hardness H00 - H07 Set the water softening sys- tem to your water hardness. -
Page 36: Changing Basic Settings
en Home Connect Basic setting Display text Selection Description Remote Start rc0 - rc2 Activate or deactivate → "Remote Start ", Page 37. The following settings are possible: ¡ With the setting "rc0", the function is permanently deactivated. ¡ With the setting "rc1", the function can be selected via the button. -
Page 37: Home Connect Quick Start
Home Connect en Home Connect services in your coun- The Home Connect app guides try. You can find information about you through the entire login pro- this at: www.home-connect.com. cess. To be able to use Home Connect, Setting up Home Connect you must first set up the connection to the WLAN home network (Wi-Fi Requirements and to the Home Connect app. -
Page 38: Data Protection
en Cleaning and servicing Note: Please note that the Requirements ¡ The appliance is connected to your Home Connect functions can only be WLAN home network. utilised with the Home Connect app. ¡ The appliance is connected to the Information on data protection can be Home Connect app. -
Page 39: Tips On Appliance Care
Cleaning and servicing en Turn the coarse filter anticlockwise 17.3 Tips on appliance care and remove the filter system . Follow the tips on appliance care to Check that no foreign objects ‒ make sure your appliance functions fall into the sump. properly at all times. -
Page 40: Cleaning Spray Arms
en Cleaning and servicing Carefully clean the rim of dirt 17.5 Cleaning spray arms between the coarse and the fine fil- Limescale and soiling in the dish- ter. washing water may block the nozzles Re-assemble the filter system. and bearings on the spray arms. Make sure that the locking catches Clean the spray arms regularly. -
Page 41: Troubleshooting
This will avoid unneces- sary costs. Tip: You can find further information and explanations on troubleshooting on- line by scanning the QR code in the table of contents and on our website www.bosch-home.com. WARNING Risk of electric shock! Incorrect repairs are dangerous. - Page 42 en Troubleshooting Fault Cause and troubleshooting E:32-00 will light up Remove the filter from the supply hose alternately or indicator for water supply lights Clean the filter. Re-insert the filter in the supply hose. Screw the water connection back on. Check the water connection for leaks. Restore the power supply.
- Page 43 Troubleshooting en Fault Cause and troubleshooting E:61-03 will light up Not an appliance fault. Siphon connection is still alternately. Water is closed or the wastewater hose is kinked or blocked. not drained. Check the connection to the siphon and open if ne- cessary.
- Page 44 en Troubleshooting Fault Cause and troubleshooting All LEDs lit up or Electronics have detected a fault. flashing. Press the main switch button for approx. 4 seconds. The appliance is reset and restarted. If the problem occurs again: Switch off the appliance. ‒ Pull out the mains plug or switch off the fuse in ‒...
- Page 45 Troubleshooting en Fault Cause and troubleshooting Remnants of food on Filters are inserted incorrectly and/or not engaged. tableware. Insert the filters properly. → "Filter system", Page 39 Engage the filters. Washing programme selected too weak. Select a more intensive washing programme. ▶ → "Programmes", Page 17 Tableware has been precleaned too intensely.
- Page 46 en Troubleshooting Fault Cause and troubleshooting Rust spots on cutlery. Cutlery is not sufficiently rust-resistant. Knife blades are often more severely affected. Use rust-resistant tableware. ▶ Cutlery may also rust if washed together with rusting items. Do not wash rusting items. ▶...
-
Page 47: Clean Wastewater Pump
Transportation, storage and disposal en Insert the pump cover and press 18.1 Clean wastewater pump down . Large remnants of food or foreign bodies can block the waste water pump. As soon as the rinsing water no longer drains properly, the waste water pump must be cleaned. -
Page 48: Protect Appliance From Frost
en Customer Service 19.2 Protect appliance from 19.4 Disposing of old appli- frost ance If there is a risk of frost where the ap- Valuable raw materials can be re- pliance will be standing, e.g. in a holi- used by recycling. day home, empty the appliance com- pletely. -
Page 49: Customer Service
Customer Service en tomer Service for a period of at least 10 years from the date on which your appliance was placed on the market. Detailed information on the warranty period and terms of warranty in your country is available from our after- sales service, your retailer or on our website. - Page 50 14 place settings You can find more information about 21.1 Information regarding your model online at Free and Open Source www.bosch-home.com/energylabel. Software Please then follow the instructions on searching for the model. The model This product includes software com- identifier is made up of the charac-...
- Page 51 The cost of performing your request formity can be found online at will be charged to you. This offer is www.bosch-home.com among the valid for three years from the date of additional documents on the product purchase or at least as long as we page for your appliance.
- Page 52 Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service direct- ory.
