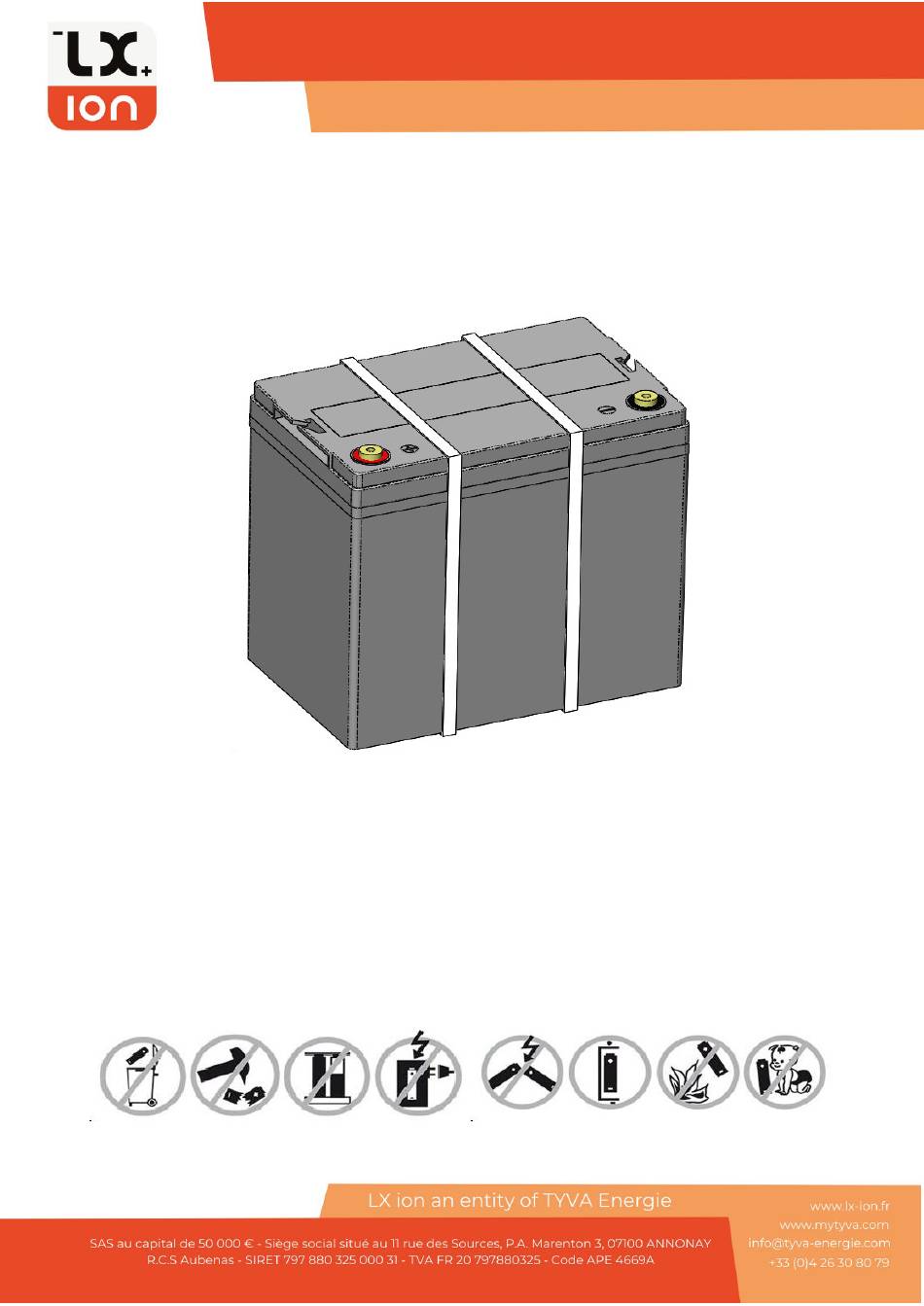

- Page 1 Product Manual LX24-46HE1 Page 1/13 Lithium cells and custom-designed lithium battery packs Product Manual LX24-46HE1 25.6 V 46.8 Ah LiFePO4 Battery Pack Product Name： LX24-46HE1 Product Reference： Revision：...
-
Page 2: Table Of Contents
Product Manual LX24-46HE1 Page 2/13 Lithium cells and custom-designed lithium battery packs Contents Quality Statement ........................... 3 1. Product Index ......................4 1.1. Product Parameter ................................4 1.2 Characteristics Curve ................................5 ........................................... 5 2. Battery Usages ......................6 2.1. Charge ......................................6 2.2. -
Page 3: Quality Statement
Product Manual LX24-46HE1 Page 3/13 Lithium cells and custom-designed lithium battery packs Quality Statement Proper use and maintenance will ensure that the battery (or battery system) will operate reliably and consistently for long periods of time. After receiving the product, please check if the packaging is in good condition. If the ... -
Page 4: Product Index
Product Manual LX24-46HE1 Page 4/13 Lithium cells and custom-designed lithium battery packs Product Index 1.1. Product Parameter Items Parameter Product Reference LX24-46HE1 Normal Voltage 25.6 V Rated Capacity 46.8 Ah (C 5 ) 44.8 Ah (C 5 ) Min Capacity About 1198.08 Wh... -
Page 5: Characteristics Curve
Product Manual LX24-46HE1 Page 5/13 Lithium cells and custom-designed lithium battery packs 1.2 Characteristics Curve... -
Page 6: Battery Usages
Product Manual LX24-46HE1 Page 6/13 Lithium cells and custom-designed lithium battery packs Battery Usages 2.1. Charge Charging terminal of battery is connected to charger appropriate with it, and then charge. Charging voltage is 28.8±0.15 V. Do not reverse. 2.2. Discharge Note that the positive and negative9(poles are not reversed as indicated by the battery case logo), then connect to the matching load. -
Page 7: Battery Service Environment
Product Manual LX24-46HE1 Page 7/13 Lithium cells and custom-designed lithium battery packs Battery Service Environment Battery discharge ambient temperature is -20 ℃~+60 ℃, humidity: RH≦85 %. When the ambient temperature >45 ℃, please pay attention to the ventilation and heat dissipation, pay attention to waterproof when ambient humidity is >... - Page 8 Product Manual LX24-46HE1 Page 8/13 Lithium cells and custom-designed lithium battery packs Do not directly weld the battery and pierce the battery with a nail or other sharp objects. Do not use the battery in the location where static electricity and magnetic field is ...
-
Page 9: Battery Using And Maintenance
Titre FE-003-01 Nom du doc Page 9/13 Lithium cells and custom-designed lithium battery packs Battery Using and Maintenance 6.1. Battery Storage Storage temperature 0 ℃～40 ℃ (Optimum storage temperature 15 ℃～25 ℃, dry preservation). Battery performance is affected by temperature, the most obvious is the change in battery capacity, this is normal phenomenon. -
Page 10: Battery Working Requirements
Titre FE-003-01 Nom du doc Page 10/13 Lithium cells and custom-designed lithium battery packs Please make sure that the positive (+) & negative (-) polarity is correctly connected, or it may fire or damage the battery and electrical appliances. Test to run the equipment, observe whether the equipment and battery are ... -
Page 11: Battery Common Troubles And Solutions
Titre FE-003-01 Nom du doc Page 11/13 Lithium cells and custom-designed lithium battery packs In order to prevent the safety problem caused by the failure of the protection board overcharge protection function, do not charge for a long time. After the battery is fully charged, remove it. - Page 12 Titre FE-003-01 Nom du doc Page 12/13 Lithium cells and custom-designed lithium battery packs Battery suffered fierce collision, with character-external battery case damaged or with electrolyte odour. Solution: It’s not in the scope of maintenance generally. If needing maintenance, we need the confirmation of the problem whether on the output line or the battery itself.
-
Page 13: Other Technical Indicators
Titre FE-003-01 Nom du doc Page 13/13 Lithium cells and custom-designed lithium battery packs Other Technical Indicators If battery protection parameters and other related parameters are needed, please contact our sales or technical staff, we will provide the information as soon as possible. Your understanding is highly appreciated.
