JSPORTS JB101 User Manual

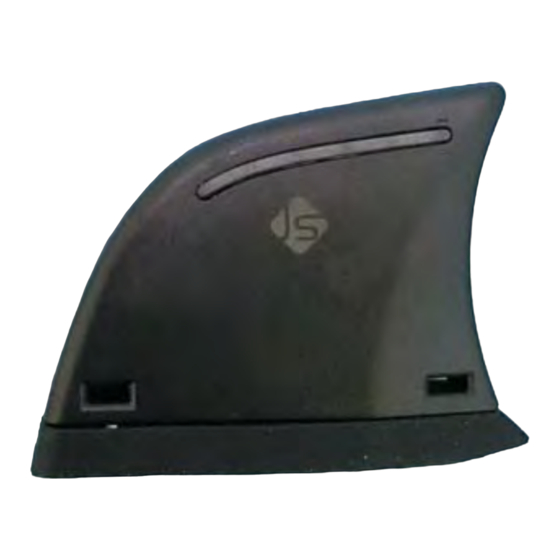

JB101 Speed Meter
2. Magnet alignment mark 2. Magnet alignment mark
1. LED indicator 1. LED indicator
3. Cable tie through hole 3. Cable tie through hole
Accessories included with your product
Rubber stand Cable Tie

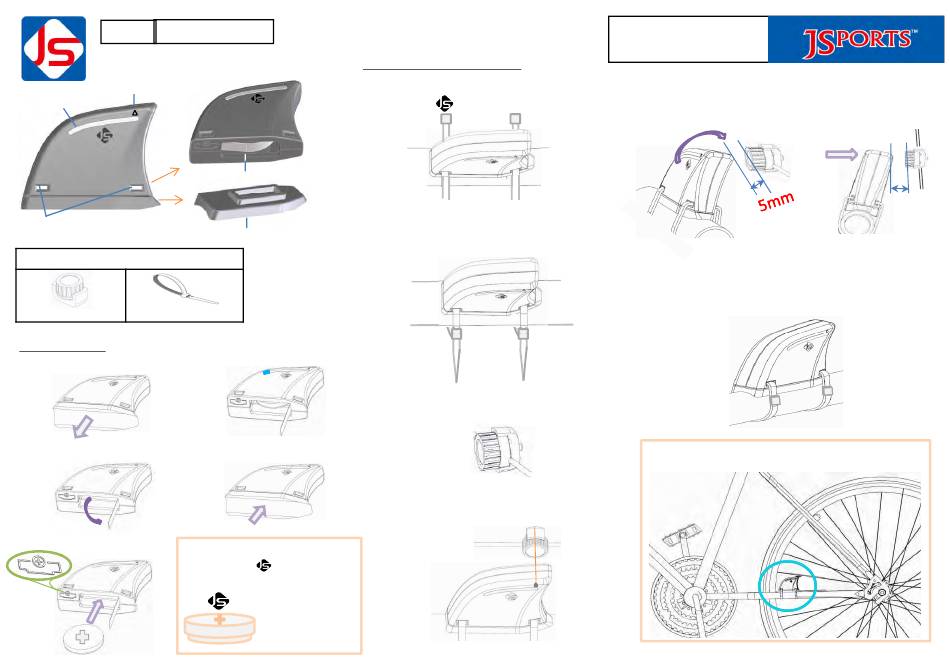

Install Battery
Step 1
: Remove JB101 rubber stand
Step 2
: pull out battery Ribbon
Step 3:
battery push into battery
holder
Note
Install JB101 on your Bike
4. Battery ribbon 4. Battery ribbon
5. Rubber stand 5. Rubber stand
Step 4
: LED will flashing , if battery is install
correct
Step 6
: Push back the battery ribbon
and covered with Rubber stand
: The battery Anode mark should
face to Logo, same direction
as icon on bottom side of JB101
Step1
: Place sensor on left chainstay with 2 cable tie
Let Logo side outwards
Step2
: Insert the pointed end of the cable into the
locking piece, Keep cable loose to allow some
adjustment of position and tilt angle.
Step3
: Mount the Magnet on the spoke, place the
spoke in the groove of the plastic piece
Step4: Move magnet to align triangle mark on JB101 ,
tight the screw to fix magnet position.
User Manual
Step5:
Tilt the JB101 sensor top side closer to magnet within 5mm for
better sensing performance
:
Step6
Swing rear wheel ,let the magnet pass through JB101 if LED turn
on sequentially. Then tighten 2 cable tie and cut off redundant
cable to finish hardware installation
Note:
place JB101 on chainstay close to the Rim
5mm 5mm
