Summary of Contents for HD Flow3 HD-W300T

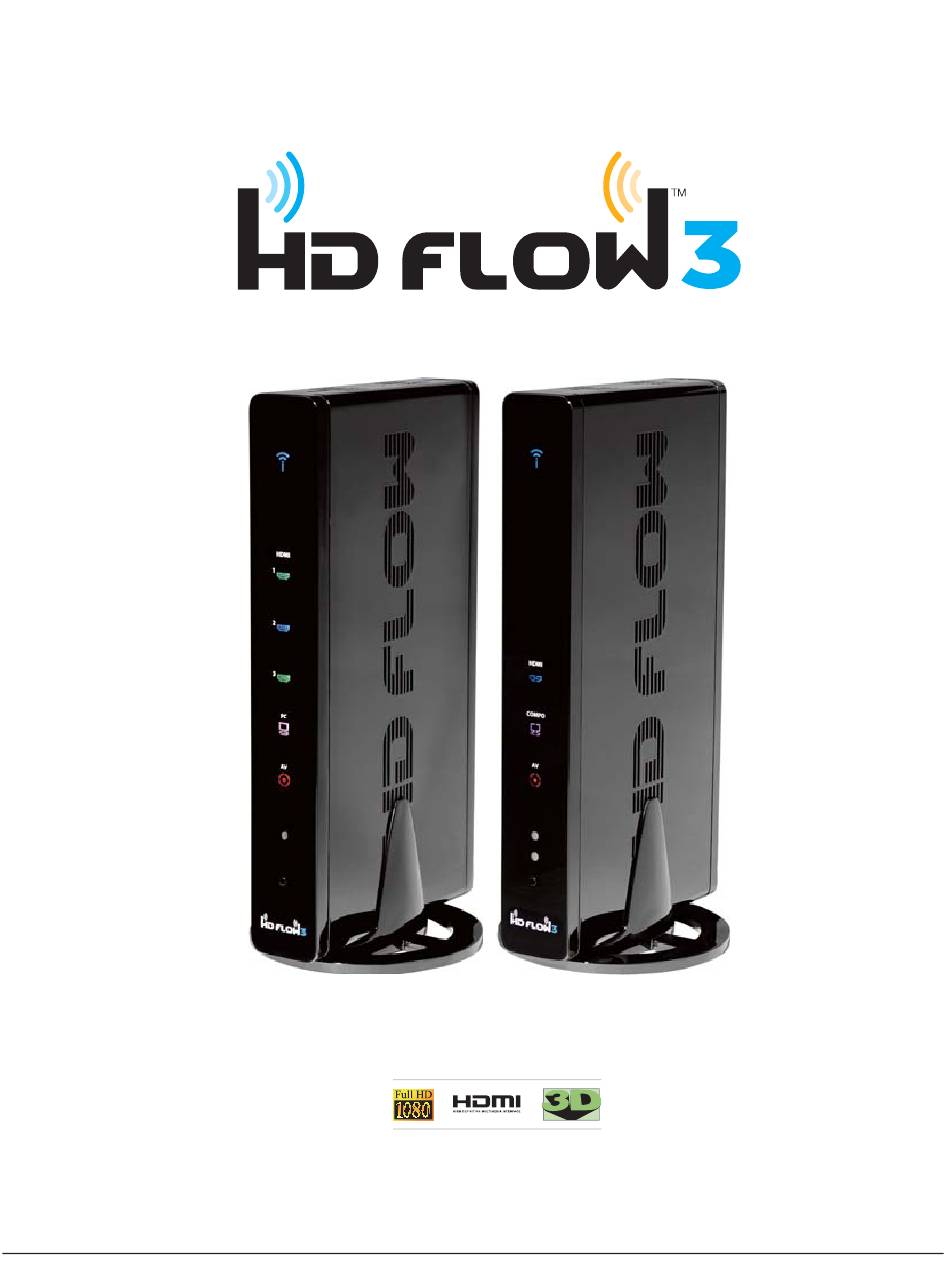

- Page 1 User Manual and Installation Guide Wireless Full HD Sender Transmitter HD-W300T ® R E ADY www.hdflow.co.kr ver 1.0...
-
Page 2: Table Of Contents
IR Flasher Installation (Setting Up IR Remote Control Capabilities for Source Devices) ............12 IR Extender Installation (Optional) ............................12 Connecting The Receiver To The Display Device .........................13 Powering-Up HD FLOW3 Wireless AV Multi Display System ....................13 Input And Output Selection ..............................13 Multicast Mode - Pairing Additional Receiver(s) With The Transmitter ..................14 Peer-To-Peer LAN (Wired) Mode Installation ........................14... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS Keep the product away from Keep the product out of reach of external heat sources such as children. heaters or stoves. If there is any unusual sound, Keep the battery of remote control smoke or odor coming from the out of reach of children. -
Page 4: Introduction
Receiver to a display device, instant high definition digital audio and video can be placed into in any commercial or residential setting. HD FLOW3 Wireless AV Multi Display System transmits through walls and floors to allow the components to be neatly tucked away in an AV rack or media cabinet, and is the ideal solution for quick and easy installation where running cable is cost prohibitive or simply not an option. -
Page 5: Product Specifications
PRODUCT SPECIFICATIONS HD-W300T 3x HDMI up to 1080p60 1x HDMI pass-thru output (pass-thru port mirrors HDMI 1) Video Input 1x PC Video (Transmitter) 1x Component & composite (via included dongle) 1x HDMI up to 1080p60 Video Output 1x Component (Receiver) 1x Composite H.264 Baseline Profile... -
Page 6: Transmitter Front
Transmitter Front Power/Link Indicator Light • Blinking indicator light - Establishing link between the Transmitter and the Receiver. • Solid indicator light - Link between the Transmitter and Receiver has been established and is ready for signal transmission. HDMI 1 •... -
Page 7: Transmitter Back
Transmitter Back HDMI 1 IN • HDMI1 input port. HDMI Pass-Thru • Outputs a duplicate of the source that is plugged into HDMI 1. HDMI 2 IN • HDMI2 input port. HDMI 3 IN • HDMI3 input port. • USB port is used for service only. IR-OUT •... -
Page 8: Receiver Front
Receiver Front Power/Link Indicator Light • Blinking indicator light - Establishing link between the Transmitter and the Receiver. • Solid indicator light - Link between the Transmitter and Receiver has been established and is ready for signal transmission. HDMI • The HDMI indicator light will be illuminated when the HDMI port is selected for video output. -
Page 9: Receiver Back
Receiver Back 1. HDMI-OUT • HDMI output port 2. AV-OUT • Composite video output port 3. IR-IN * • Connects IR Extender in order to extend IR reception range. 4. AUDIO-OUT ** • 3.5mm stereo audio output port for component output. 5. -
Page 10: Remote Control
Remote Control POWER ON Button • Turns the Transmitter and Receiver power ON POWER POWER POWER OFF Button • Turns the Transmitter and Receiver power OFF INFO/OK* • Displays the following information on the screen: Transmitter - WiFi IP, LAN IP, and Source SCAN MENU / BACK... -
Page 11: Installation And Operation
Before starting the installation, please ensure that all source components (Blu-ray player, cable box, etc.) and the display equipment (TV, display, projector, etc.) are turned off. For initial setup of your HD FLOW3 system complete steps A, B, C, D, E and F in order. A) Connecting Source Components To The Transmitter HDMI Media Source •... -
Page 12: Ir Flasher Installation (Setting Up Ir Remote Control Capabilities For Source Devices)
d. Composite Media Source • Video – Connect “yellow” composite video RCA to green port on Component/Composite Adaptor. • Audio – A 3.5mm stereo audio cable is required (not included) to transmit audio when using this input. Connect the 3.5mm stereo audio cable from the VGA source component’s audio output to the Transmitter's PC AUDIO-IN port. -
Page 13: Connecting The Receiver To The Display Device
Button for one second on the unit and release. At this time the output Indicator Light will become solid and the HD FLOW3 logo will appear on the display device if there is no source providing content. The HD FLOW3 logo is only displayed when the receiver is working with the display, but no content is coming from the transmitter. -
Page 14: Multicast Mode - Pairing Additional Receiver(S) With The Transmitter
Multicast Wireless Mode enables the Transmitter to stream AV media from one Transmitter to up to six Receivers. Note: Your HD FLOW3 Wireless AV Multi-Display System comes pre paired. This section is only needed if you have separately purchased additional Receiver(s). -
Page 15: Tips
If the above tip does not assist, please reference the Factory Reset section of this manual. If the connection has been established and the HD FLOW3 logo can be seen on the display device, but content is not playing when initiated: Ensure that source cables are properly connected. -
Page 16: Supported Video Formats
1600 x 1200p60 is a reduced format. HD FLOW3 simply relays the input format of the video from the Transmitter to the Receiver. HD FLOW3 does not change the video format. If you want to change the output resolution, you should change the format on the external device which is connected to the Transmitter. -
Page 17: Compliance Statements
COMPLIANCE STATEMENTS FCC Compliance This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. -
Page 18: Warranty
1 YEAR LIMITED WARRANTY The HD FLOW3 offers the highest quality components and technology available. The product is warranted to be free from defects in material and workmanship, given normal use and care, for 1 Year from the original purchase date with proof of purchase. - Page 19 Wireless Full HD Sender Transmitter www.hdflow.co.kr I DO IT Co., Ltd. #637, Smart-Hub Industry-University Convergence Center, 237 Sangidaehak-ro, Siheung-si, Gyeonggi-do, Korea Tel : +82 (0)31 8041 1500 Fax : +82 (0)31 8041 1550 E-mail : sales@hdflow.com I DO IT France 6-8 Rue de la Closerie ZAC Du Clos Aux Pois 91090 LISSES Cedex FRANCE Tel : +33 (0)1 64 97 52 28 Fax : +33 (0)1 64 97 52 35...
