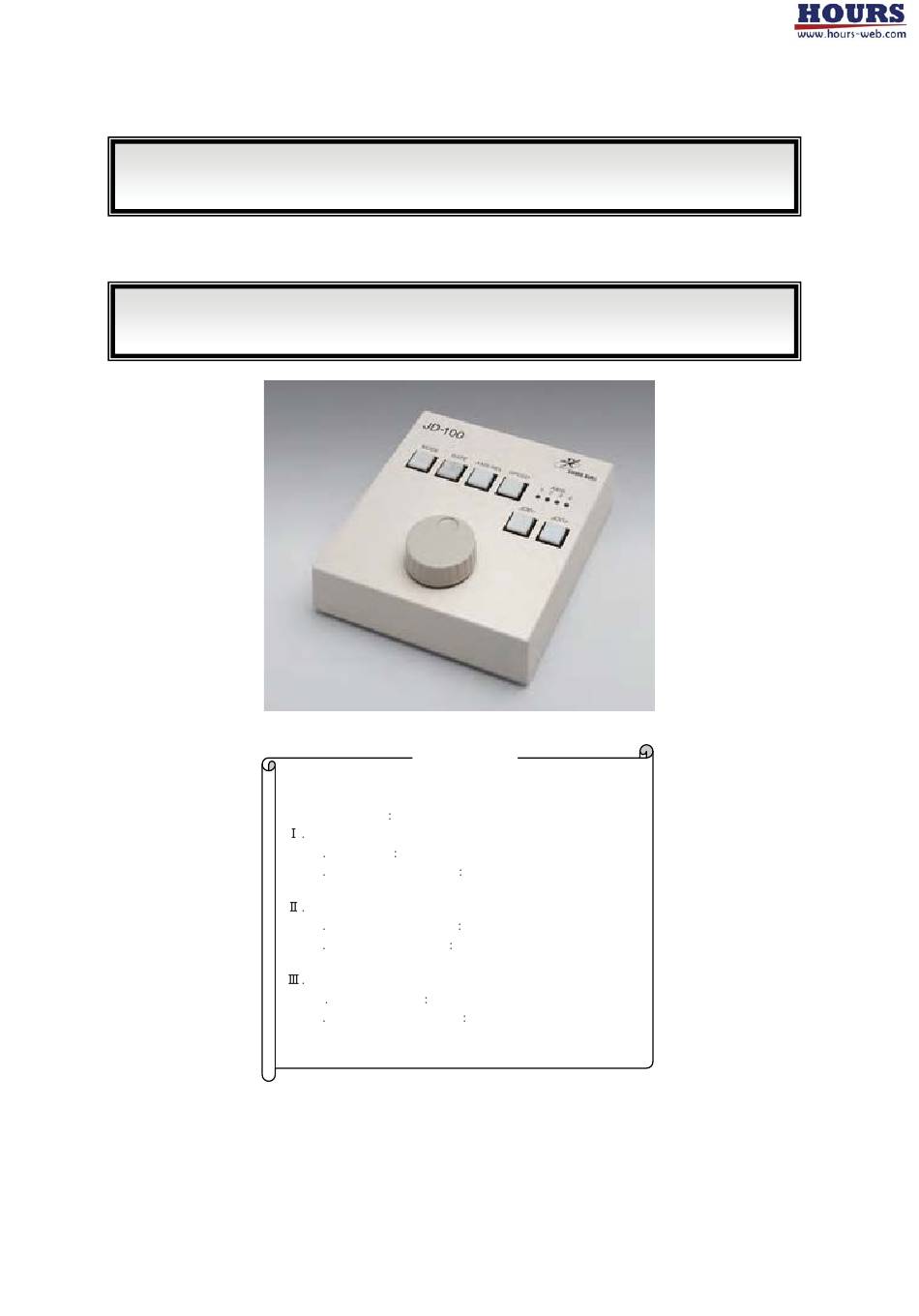

Page 1 JOG DIAL JD-100 User’s Manual CONTENTS For Your Safety Before You Begin 1-1 Overview 1-2 Connecting Method Notes on Use 2-1 Parts of the JD-100 2-2 Operating method Specifications 3-1 Specifications 3-2 Exterior Dimensions...
Page 2 Notes regarding these materials These materials are intended as a reference to assist our customers in the use of the SIGMAKOKI CO., LTD. Product best suited to the customer’s application; they do not convey any license under any intellectual property rights, or any other rights, belonging to SIGMAKOKI CO., LTD.
Page 3 For Your Safety Before using this product, read this manual and all warnings or cautions in the documentation provided. Only Factory Authorized Personnel should be changes and/or adjust the parts of controller. The Symbols Used in This Manual WARNING CAUTION This symbol marks warnings that should be read This symbol indicates where caution should be and used to prevent serious injury or death.
Page 4 Disclaimer of Liability SIGMAKOKI CO., LTD. does not accept liability for damages resulting from the use of this product or the inability to use this product. SIGMAKOKI CO., LTD. does not accept liability for damages resulting from the use of this product that deviates from that described in the manual.
Page 5 Chapter 1: Before You Begin 1-1. Overview The JD-100 is a JOG-Dial controller. It can be connected to our stage controller, SHOT-30* series and SHOT-702 and PGC-04. The JOG-Dial, connected to the controller via a cable, provides remote operation. This means that the JOG-Dial allows you to work near the motorized stage while checking its behavior even if the controller and the motorized stage are away from each other.

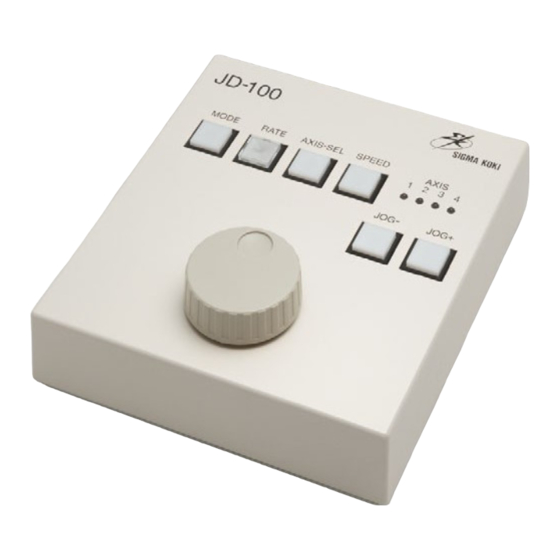

Page 6 Chapter 2: Notes on Use 2-1. Parts of the JD-100...
Page 7 2-2. Operating method MODE button Change an operation mode of the controller. HOST MANUAL Refer to a User’s Manual of SHOT-302GS/SHOT-304GS for various modes. NOTE) IN SHOT-702/ PGC-04, the MODE change is invalid. RATE button Switch the amount of movement of the stage for the dial operation. The LED indicator lights up : 5pulse/ 1click for JOG-dial.
Page 8 Chapter 3: Specifications 3-1. Specifications DC5V s10% ( from controller) Power source Operating temperature 5 40 Storage temperature -20 60 Ambient humidity 20 80%RH (no condensation) External dimensions 130W™145D™36H (excluding projections) Weight 560g Indoor use only Altitude Up to 2000m Installation category Pollution degree 3-2.
